Ubiquiti UniFi Dream Machine Special Edition 8 PoE 1SFP+ | UDM-SE
Ubiquiti UniFi Dream Machine Special Edition 8 PoE 1SFP+ | UDM-SE

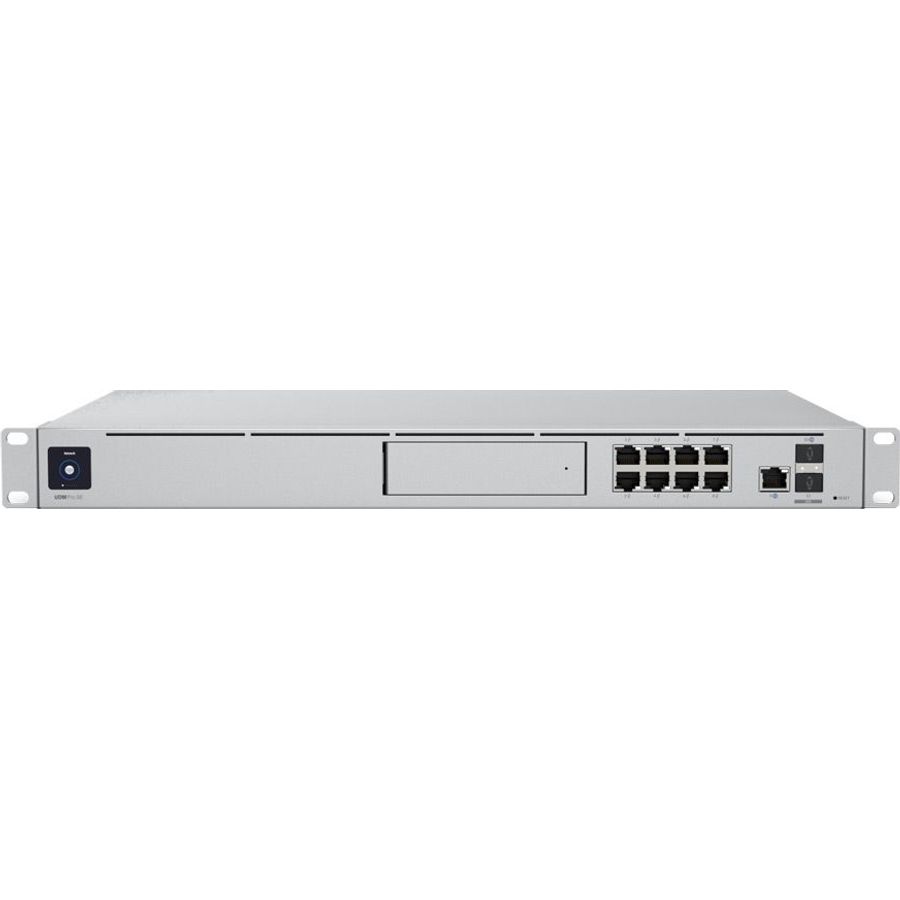

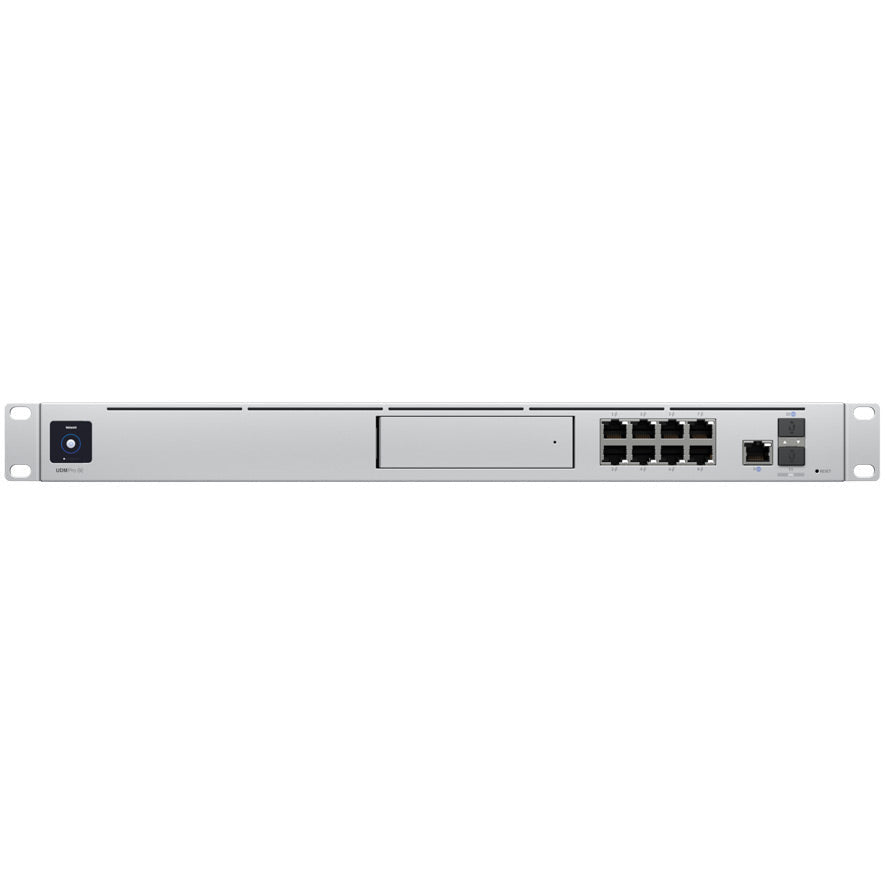

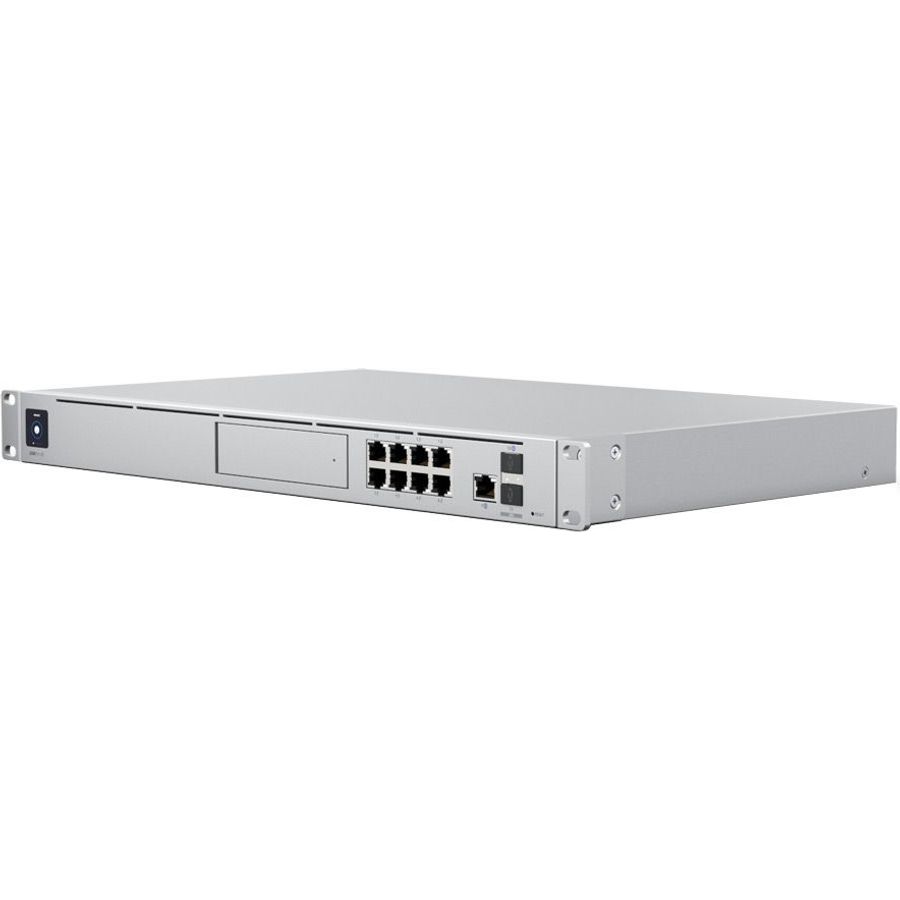

Ubiquiti's UDM-SE is an all-in-one enterprise-grade UniFi OS Console.
It is designed to host the full UniFi application suite.
It comes with an advanced security gateway feature set and a built-in 8-Port Switch with 6 PoE and 2 PoE+ ports.
It also features Dual WAN Ports (one 10G SFP+ and one 2.5Gbps RJ45), a 10G SFP+ LAN Port and a 3.5" HDD Bay for NVR Storage (2.5" HDD also supported).
It features a 1.3" LCM (Liquid Crystal Monitor) colour touchscreen to display key system and connection information.
*Note:
Hard drive not included.
Specifications
Ethernet Ports: 1x 10/100/1000/2500 (WAN); 8x 10/100/1000 (LAN)
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: 6x 802.3af ; 2x 802.3at

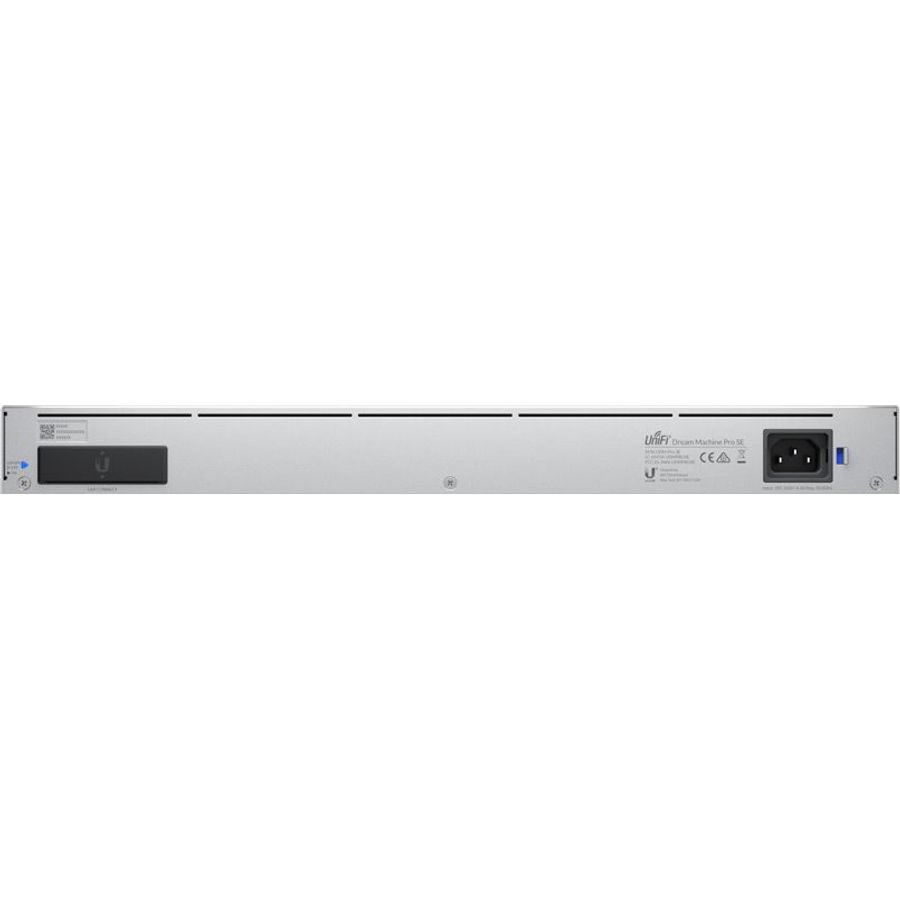

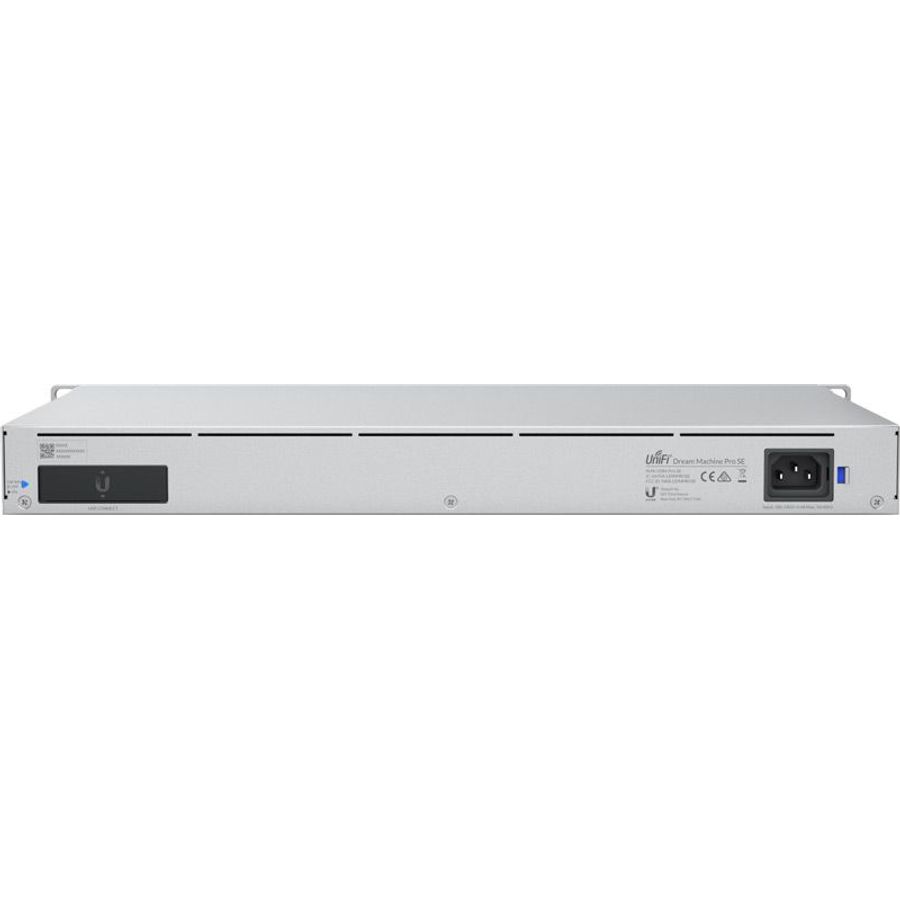

Power Input: 1x IEC Power Cord (Included); 1x RPS DC Input
Processor: Quad-Core ARM® Cortex®-A57 at 1.7 GHz
Serial Interface: None
SFP Ports: 2x 10Gbps (1xLAN; 1xWAN)
Supported Voltage Range: 100V-240V ; 44-57V (802.3af) ; 50-57V (802.3at)
System Memory: 4 GB DDR4
USB Ports: None
Dimensions: 442.4 x 43.7 x 285.6 mm
Weight: 4.95kg

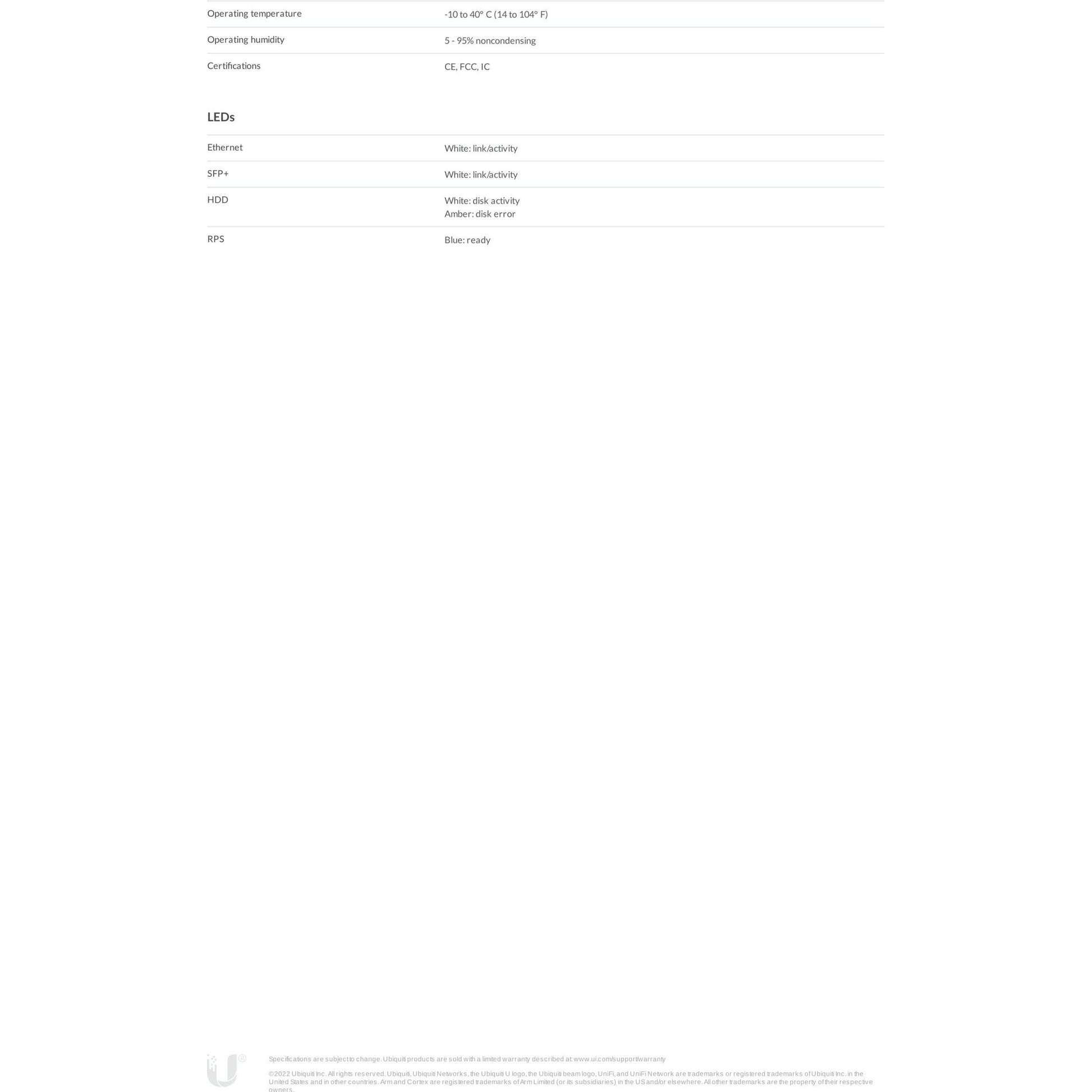

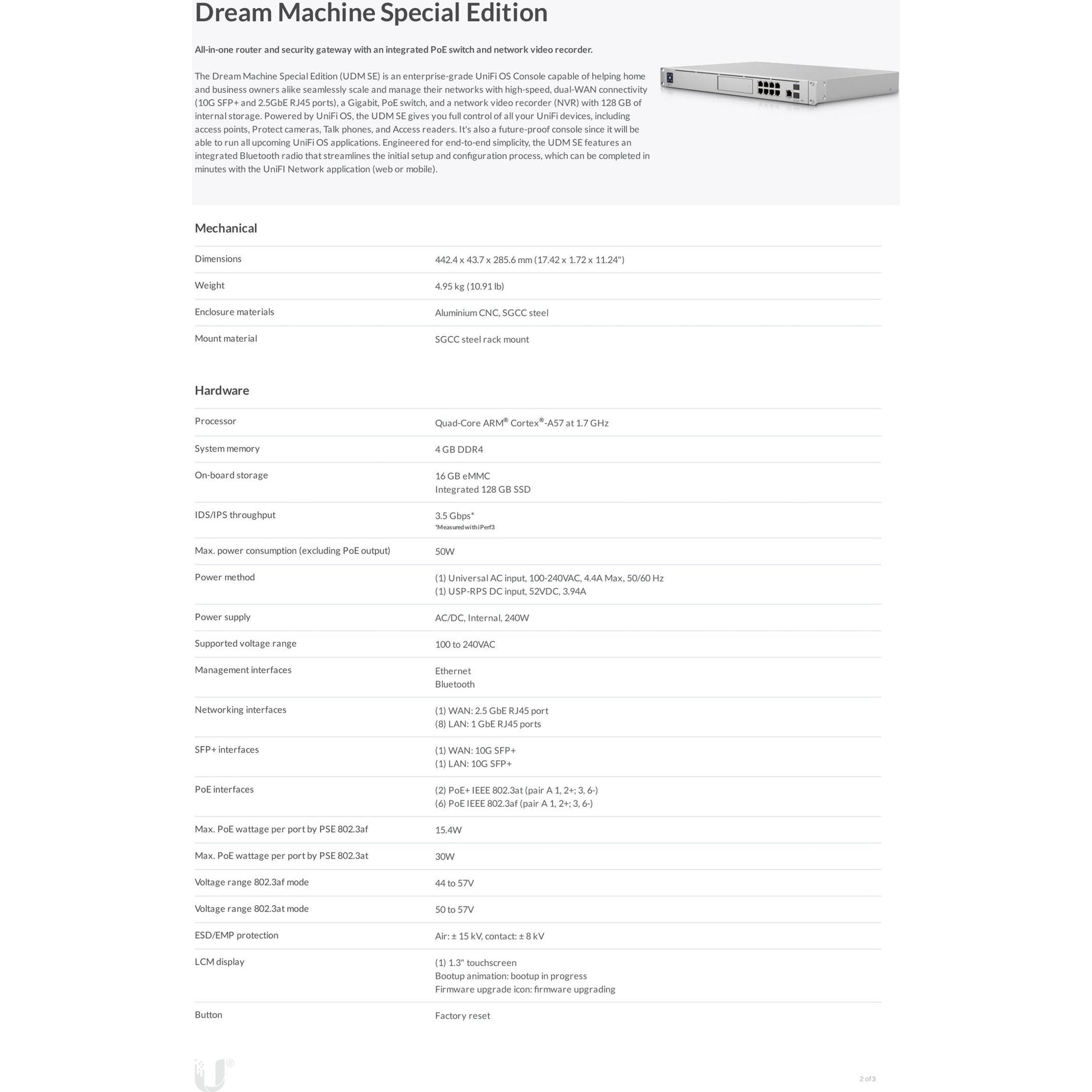

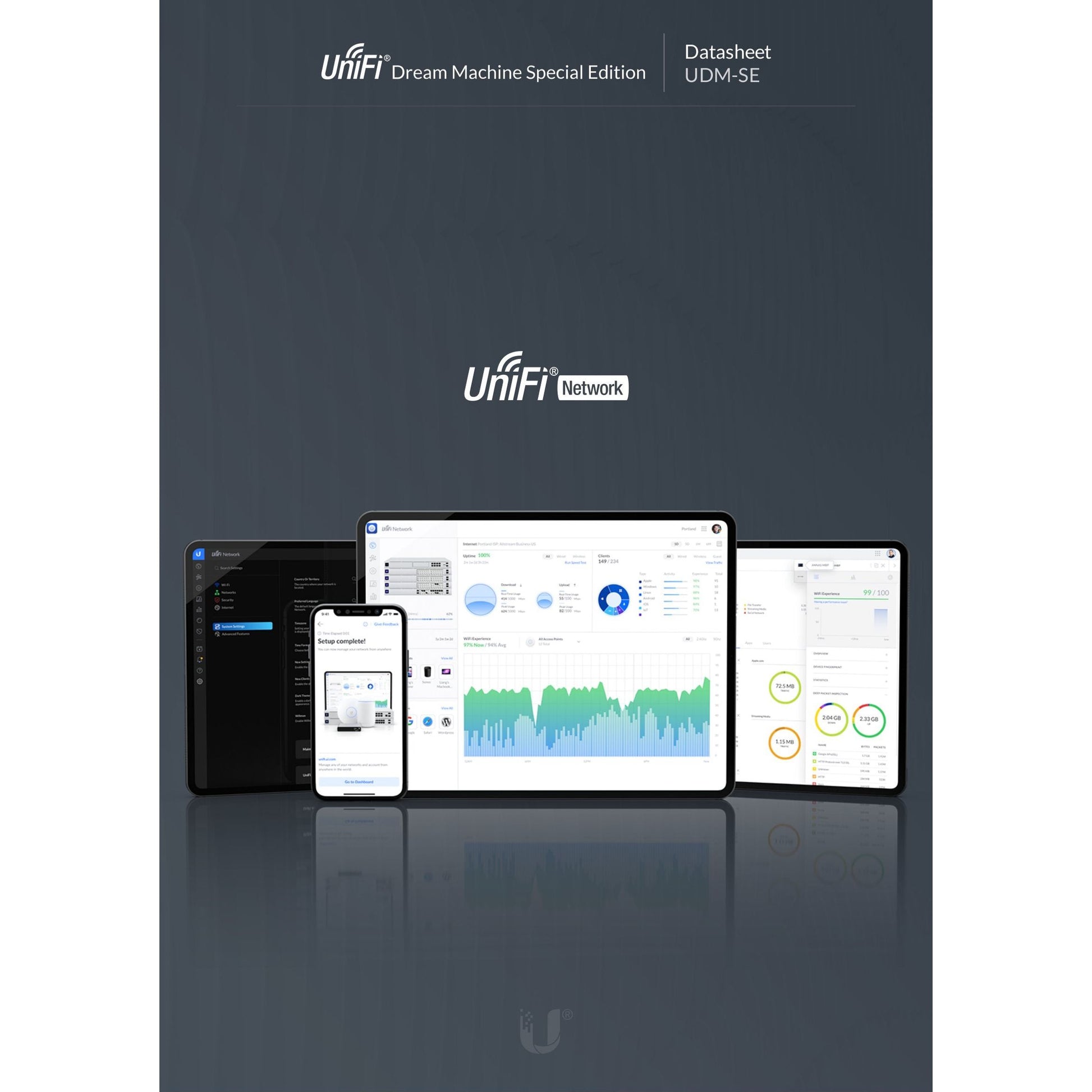

For more in-depth information, zoom in on picture of data sheet.
SKU | UDM-SE |
---|---|
Manufacturer | Ubiquiti |
Manufacturer Product Code | UDM-SE |
