Ubiquiti UniFi Enterprise Switch 24 Port 10Gbps 2 SFP28 | USW-EnterpriseXG-24
Ubiquiti UniFi Enterprise Switch 24 Port 10Gbps 2 SFP28 | USW-EnterpriseXG-24

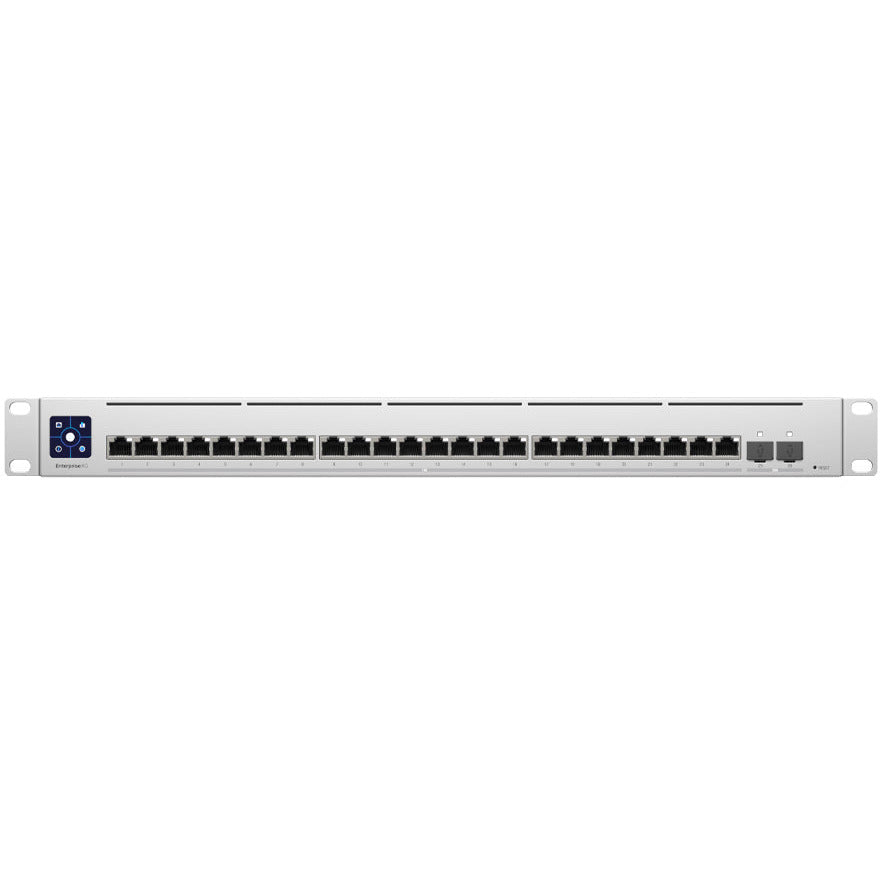

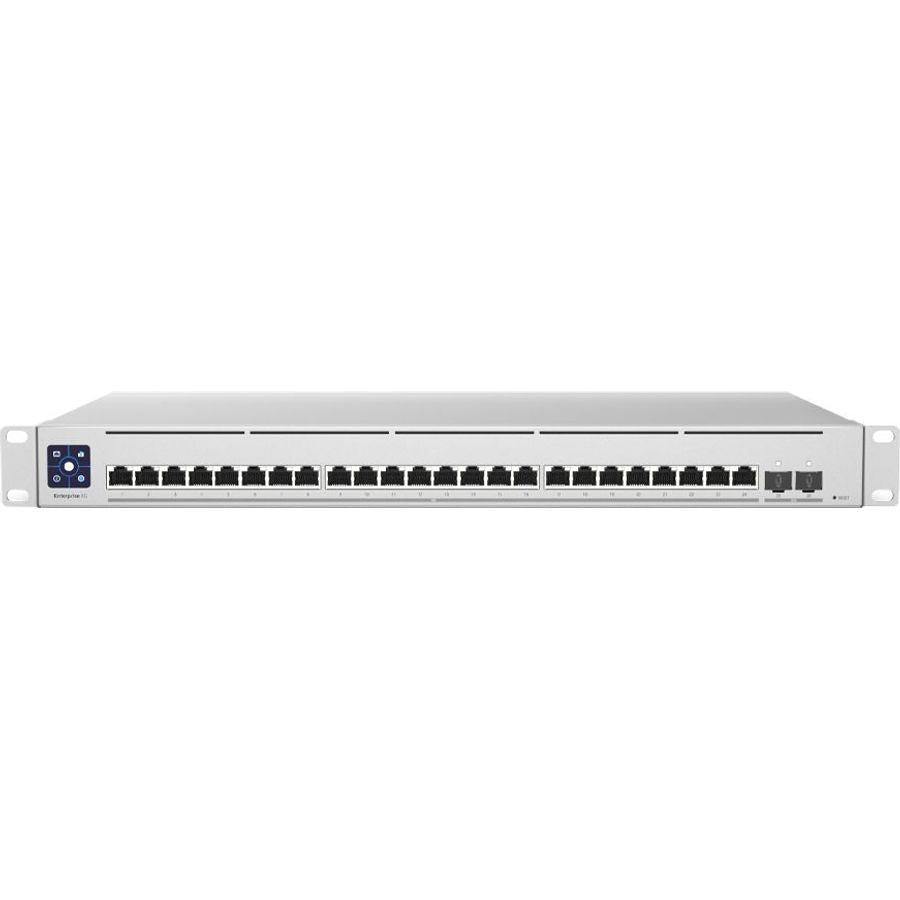

Ubiquiti's USW-E24XG is a layer 3 switch featuring 24x 10Gbps Ports, 2x 25Gbps SFP28 ports and a 1.3" LCM colour touchscreen with AR switch management.
Additionally, the USW-E24XG offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System.
It can be configured and managed with the UniFi Network Application or mobile app.
*Note:
The two SFP28 ports do not support mixed speed in 25 Gbps mode.
Once one of the SFP28 ports is configured at 25 Gbps, the others will be limited at 25 Gbps.
The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
Specifications
Ethernet Ports: 24x 10Gbps
Hardware Button: Reset
Max. Power Consumption: 100W

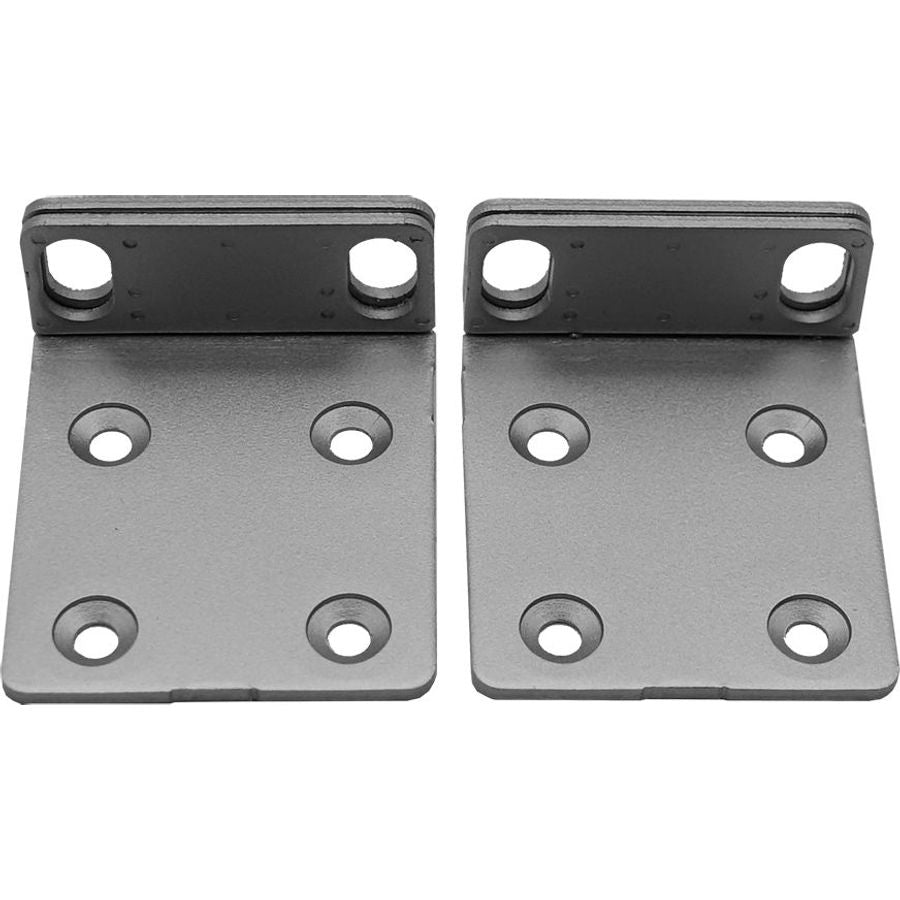

Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None

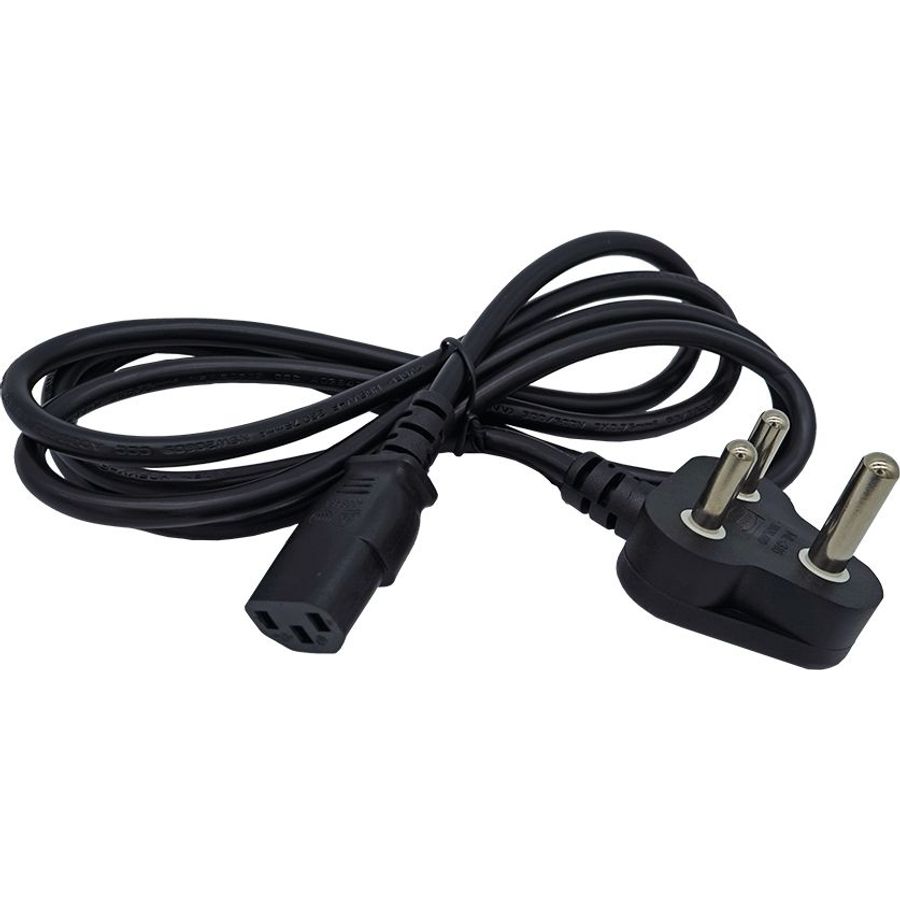

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 25Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 442 x 44 x 285 mm
Weight: 4.57kg

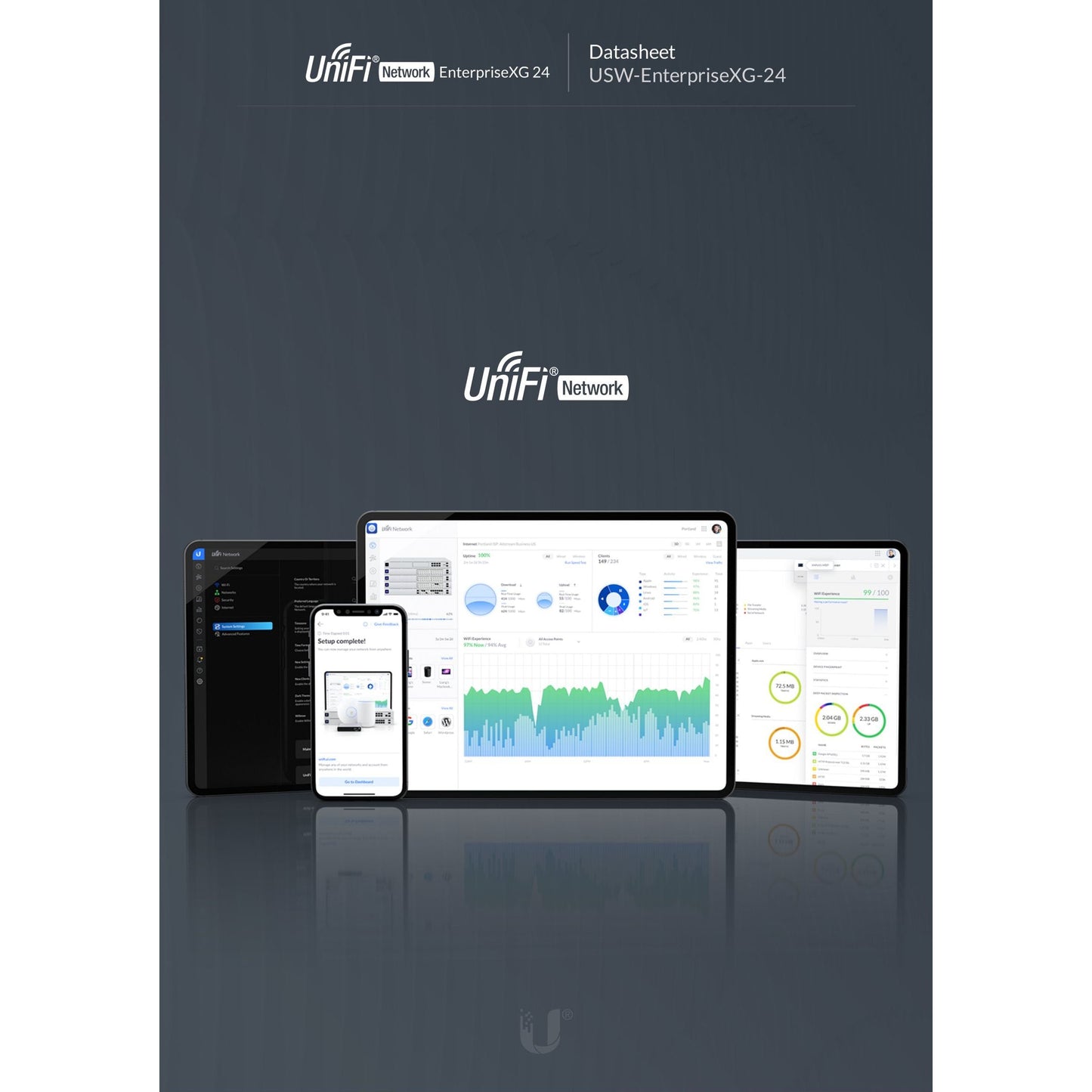

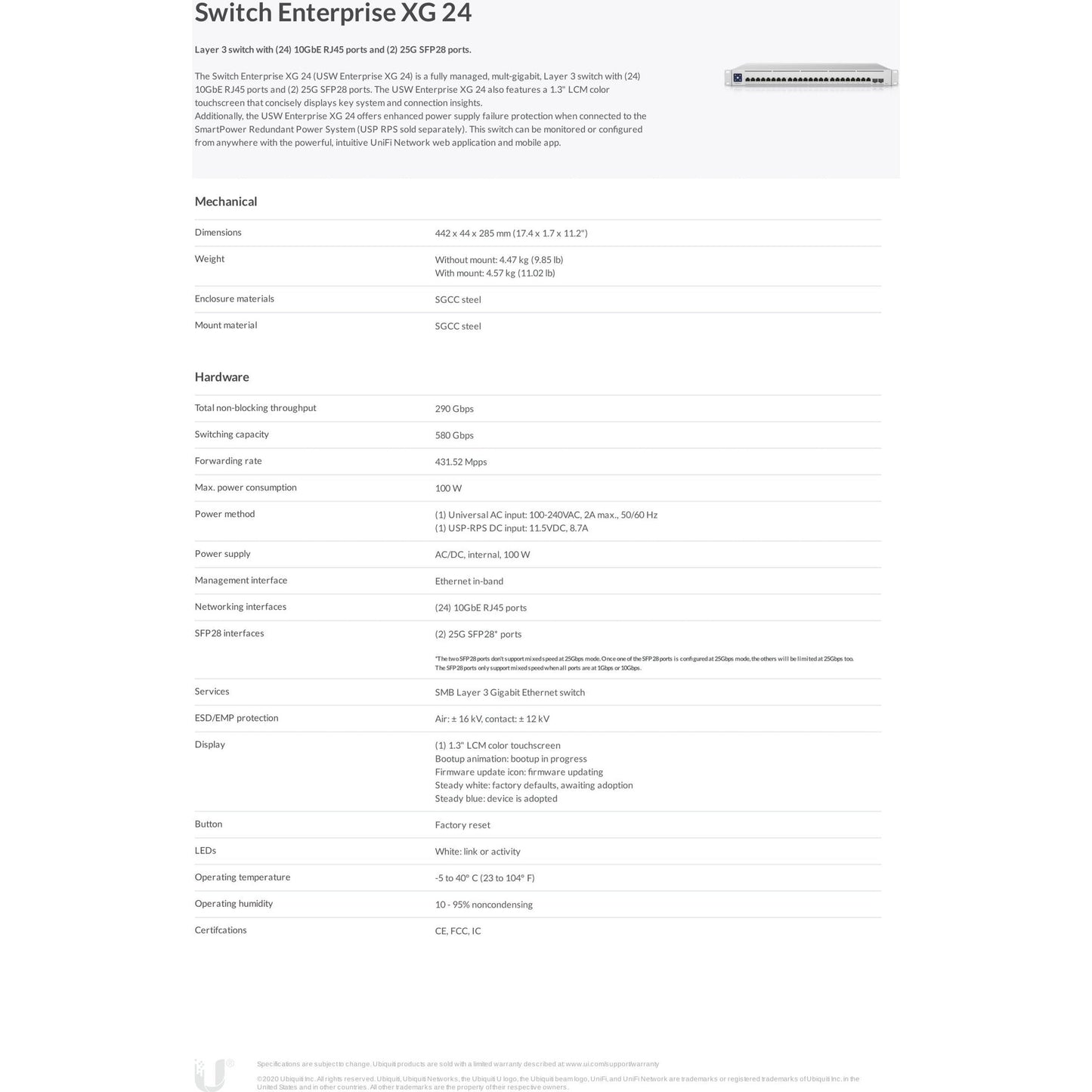

For more in-depth information, zoom in on picture of data sheet.
SKU | USW-E24XG |
---|---|
Manufacturer | Ubiquiti |
Manufacturer Product Code | USW-EnterpriseXG-24 |
