Ubiquiti UniFi Flex Switch 5 Port Gigabit 1PoE In 4PoE Out | USW-Flex
Ubiquiti UniFi Flex Switch 5 Port Gigabit 1PoE In 4PoE Out | USW-Flex

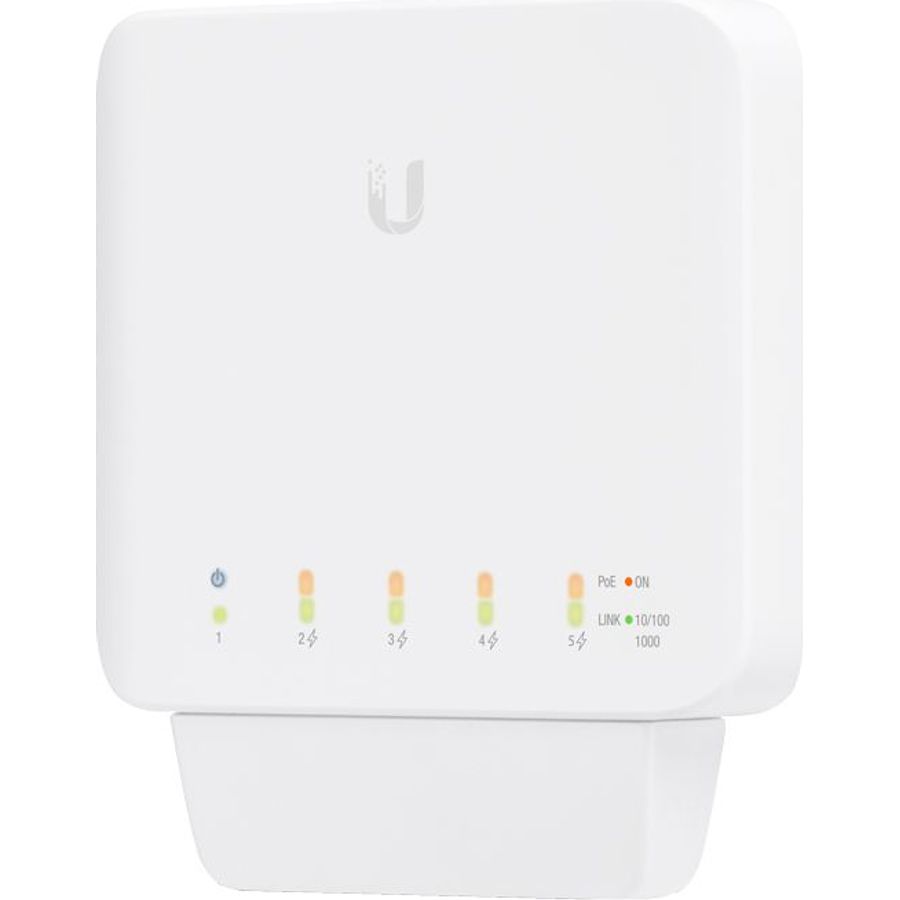

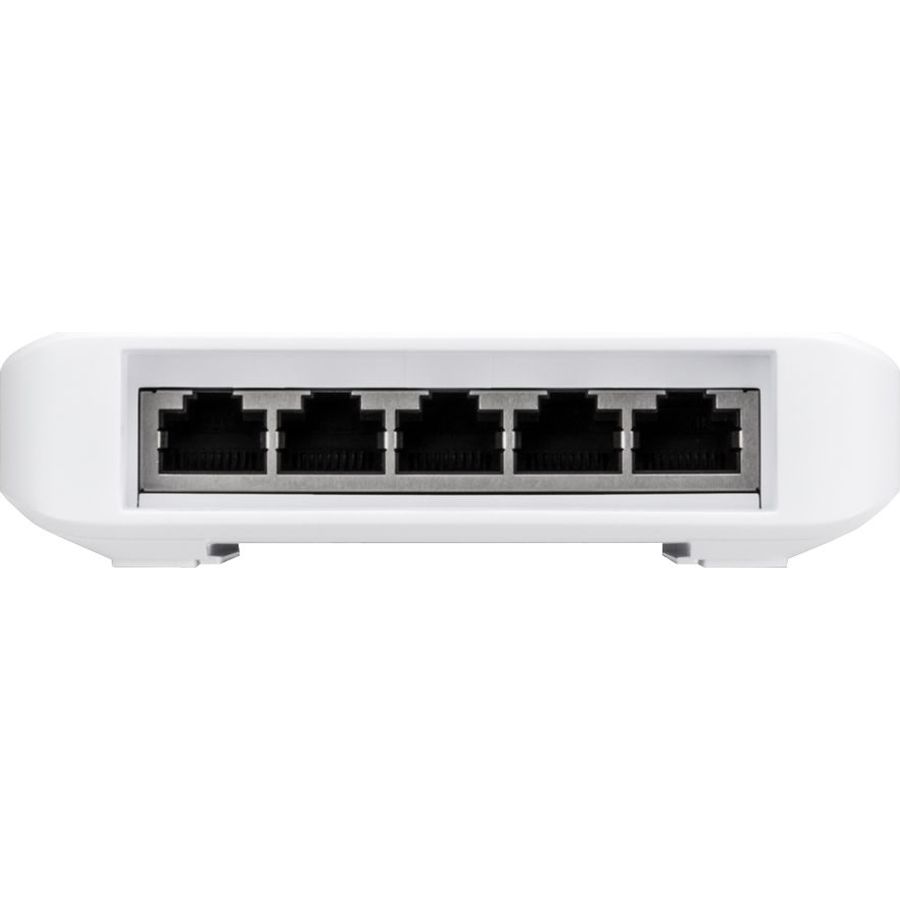

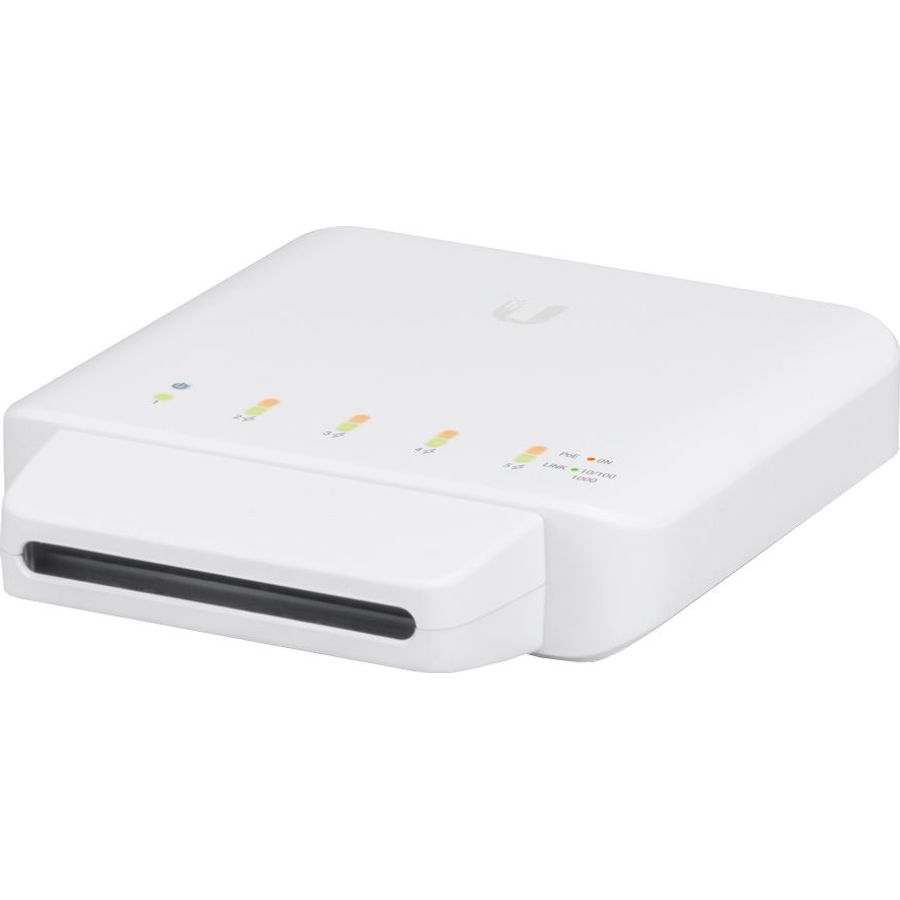

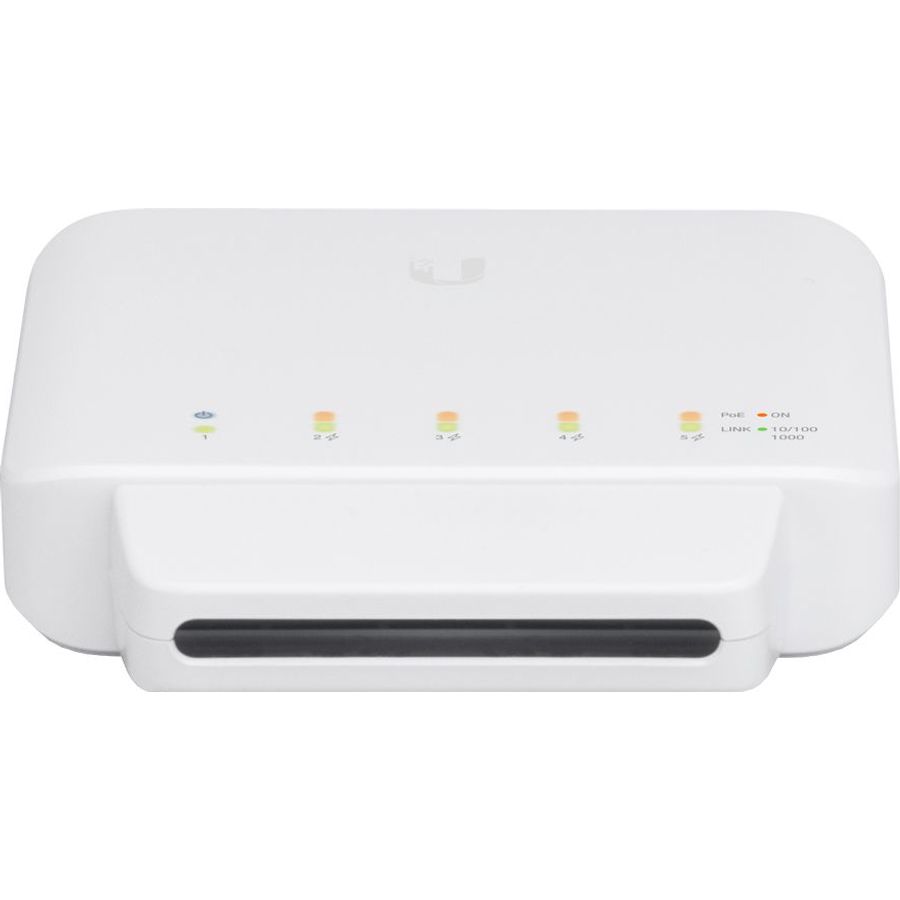

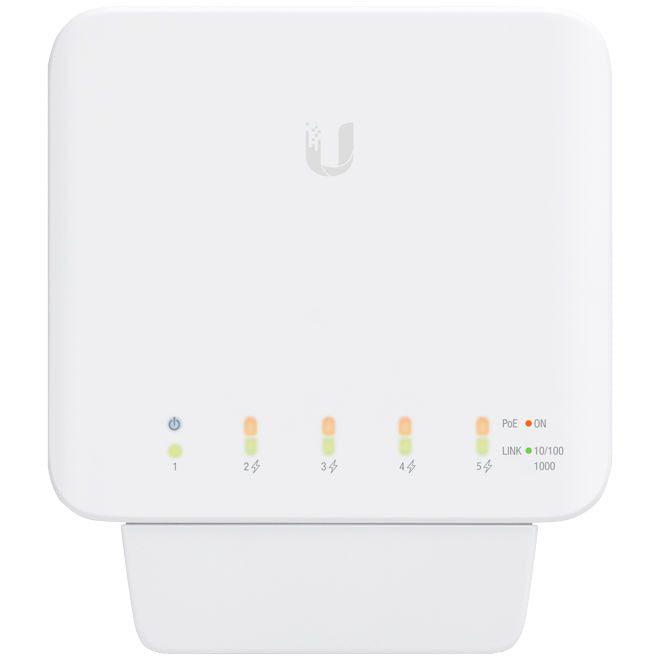

Ubiquiti's USW-5FLEX is a managed, Layer 2, UniFi switch with 5x Gigabit Ethernet Ports.
It includes 4x 802.3af PoE+ Ports and 1x 802.3af/at/bt PoE input.

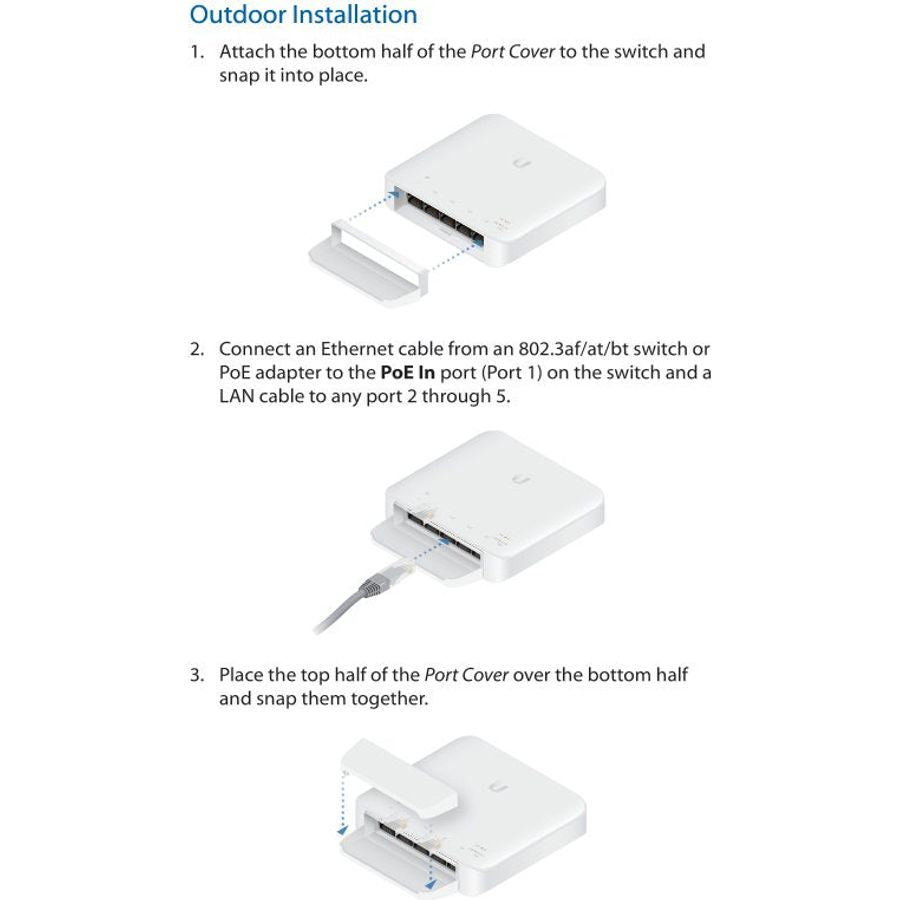

It is designed for indoor or outdoor use with its weatherproof housing and versatile mounting options.
The USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

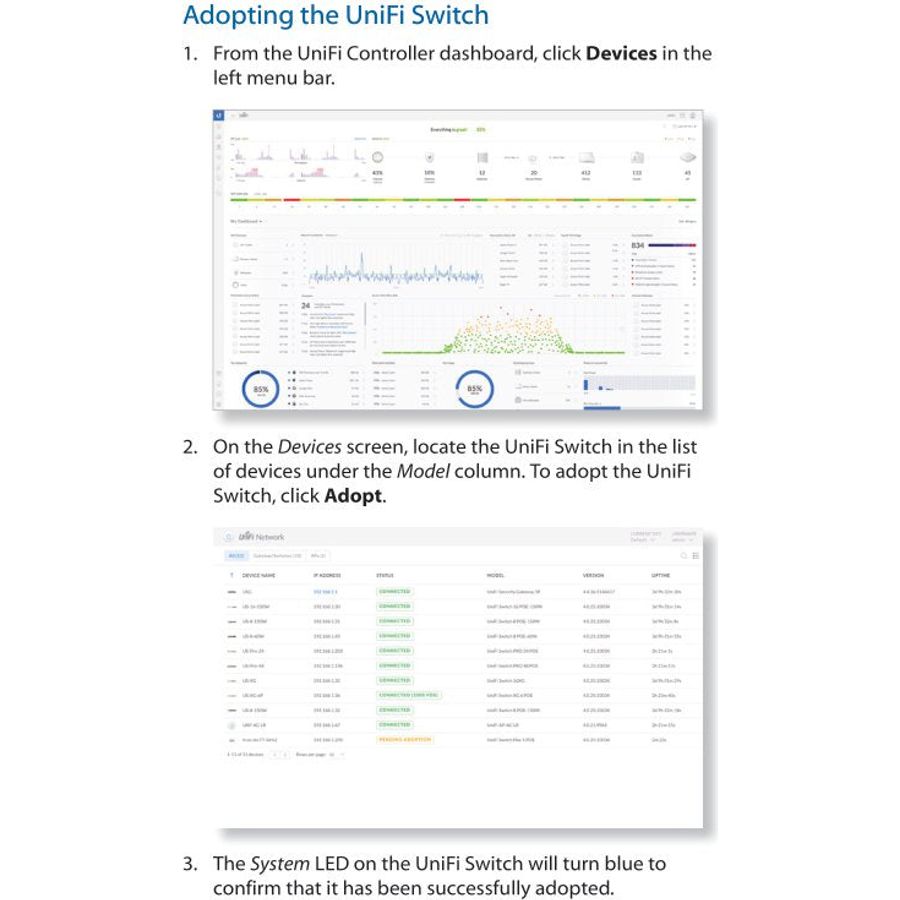

It can be configured and managed with the UniFi Network Application or mobile app.
*Note:
PoE injector not included.

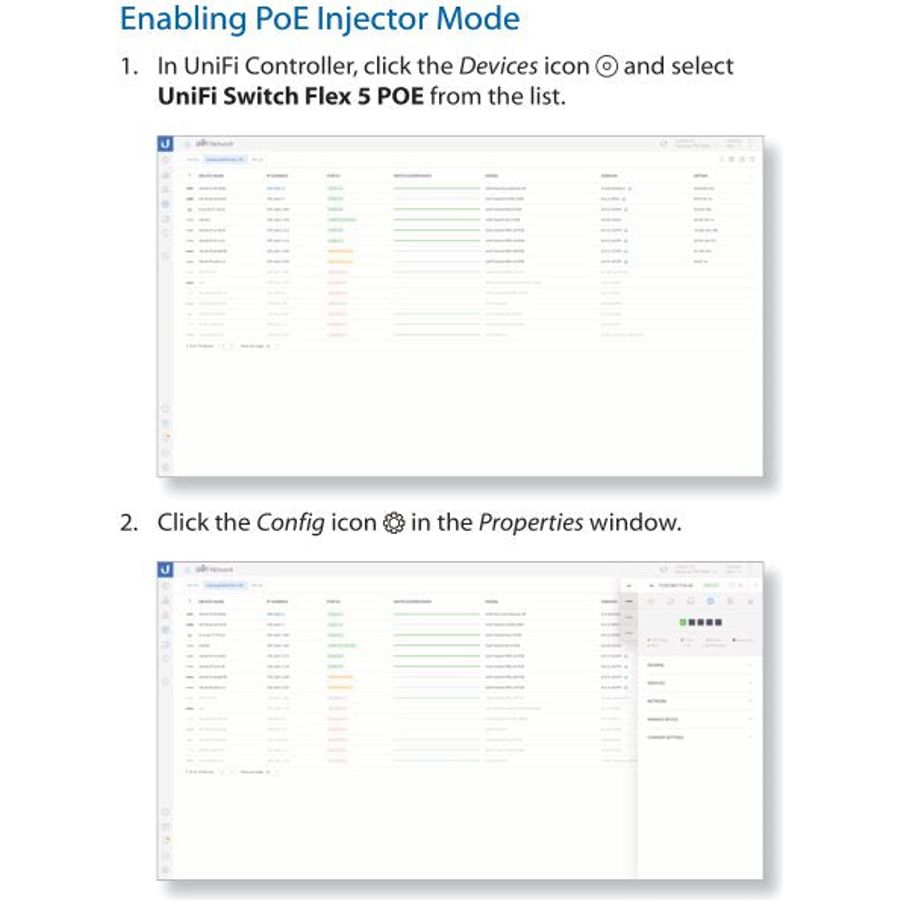

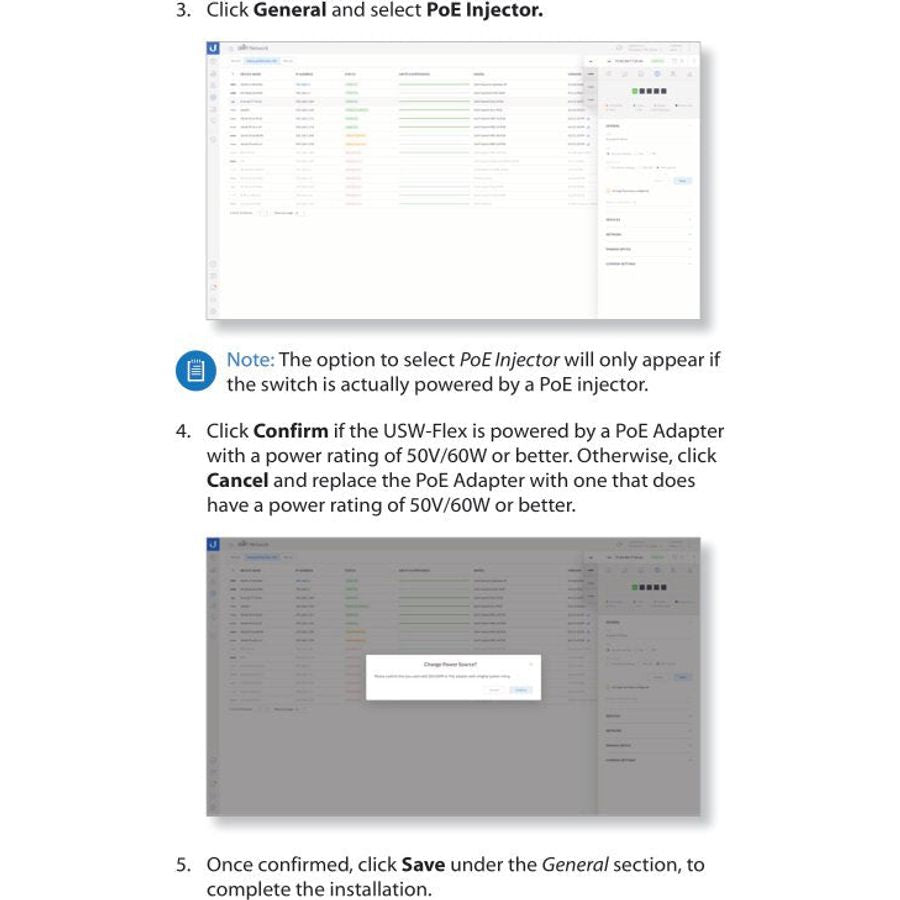

We recommend using the UPOE-50G60W or a Ubiquiti UniFi Switch to power these devices. When making use of the POE-50G-60WN, be sure to set the power source on the UniFi Network Application to injector.

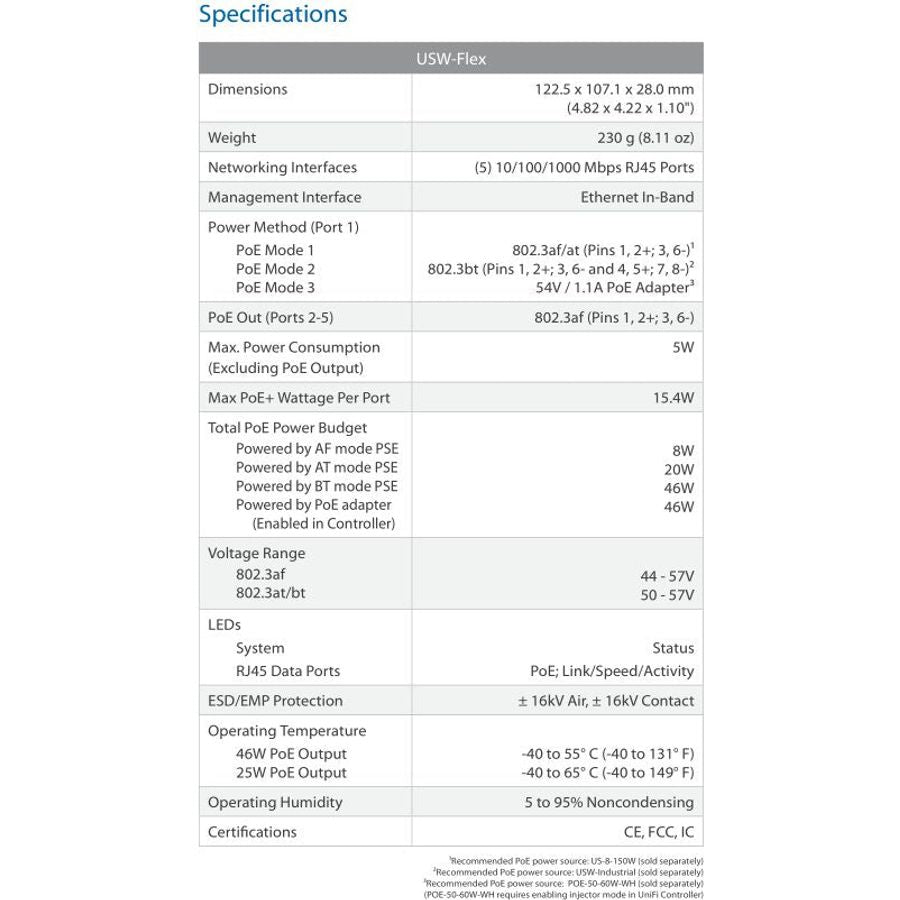

Specifications

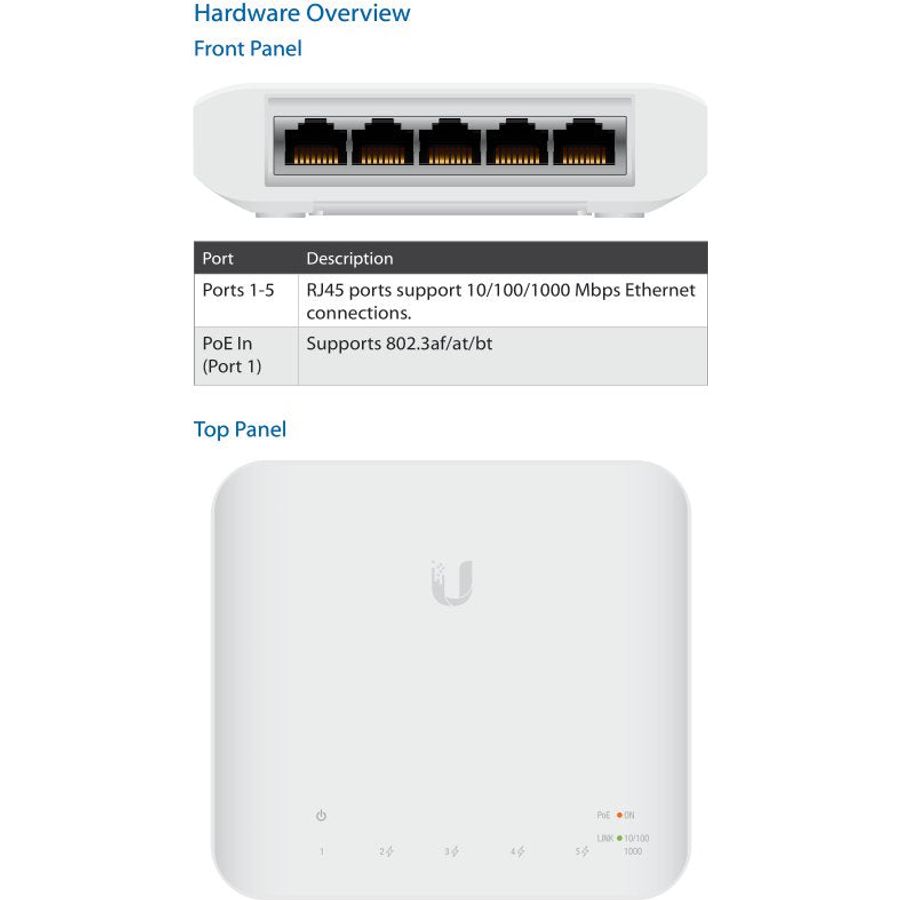

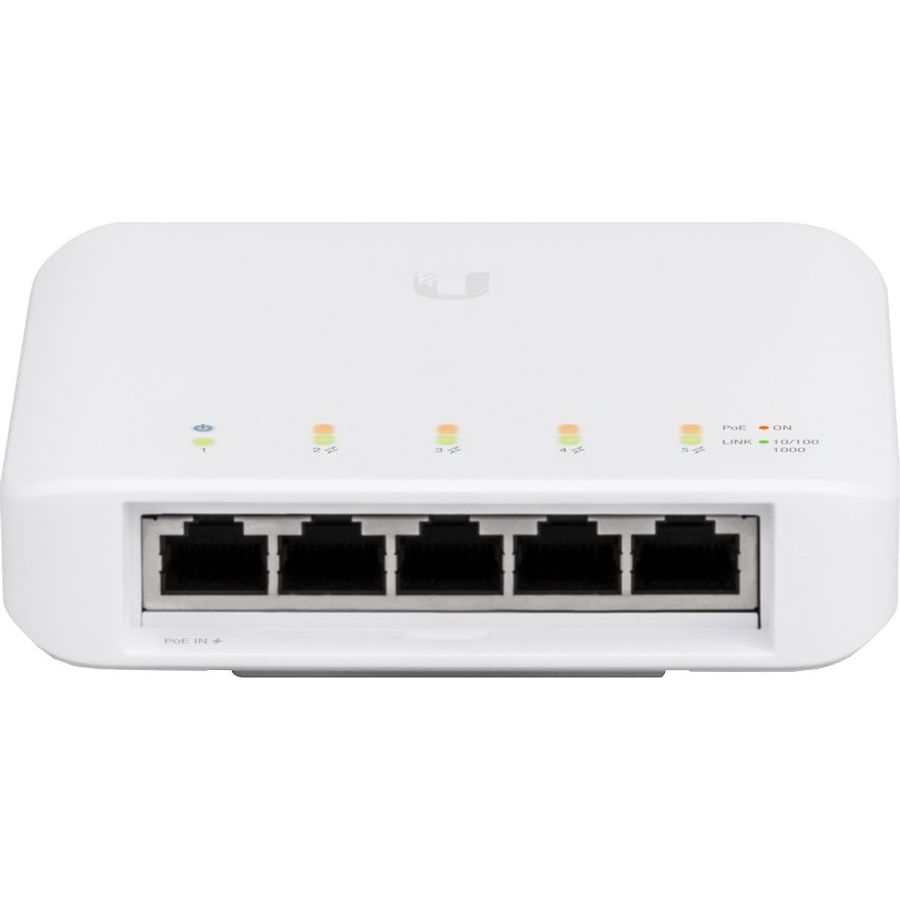

Ethernet Ports: 5x 10/100/1000

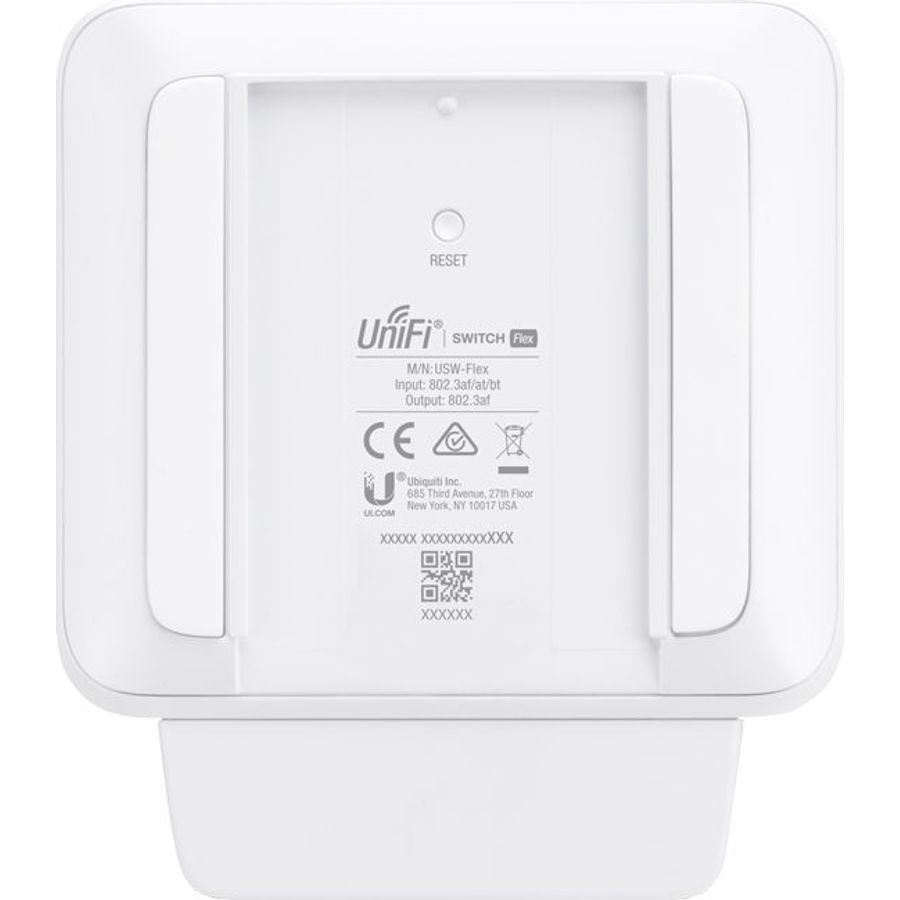

Hardware Button: Reset
Max. Power Consumption: 5W

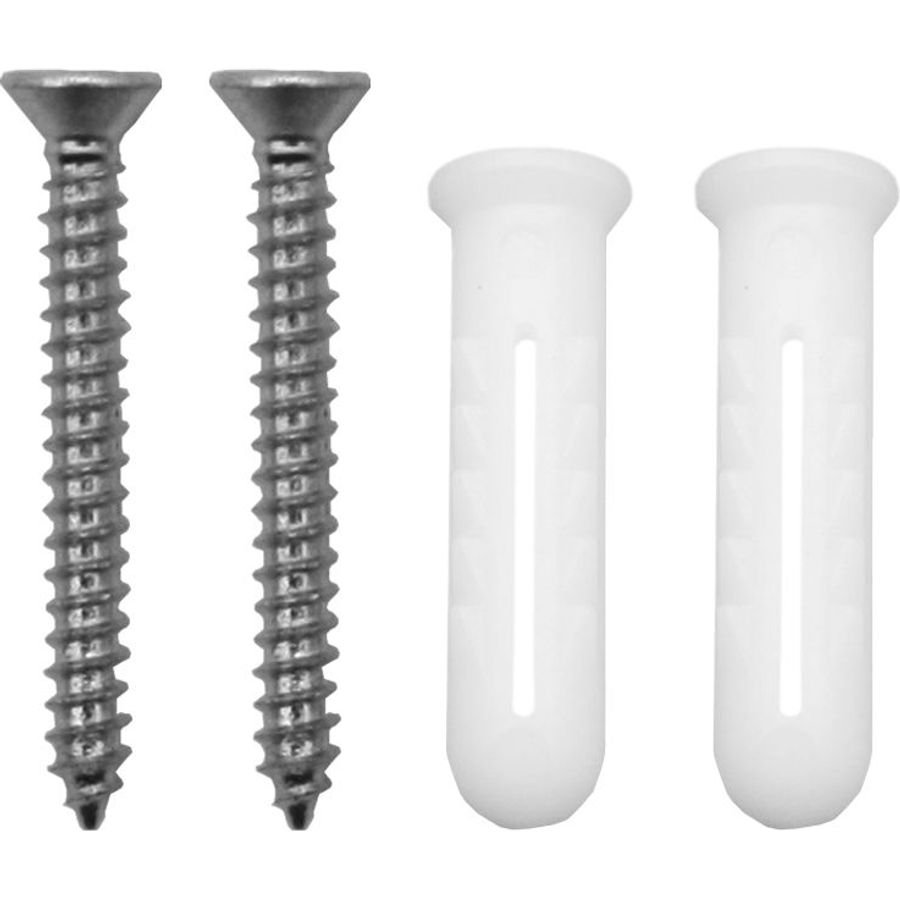

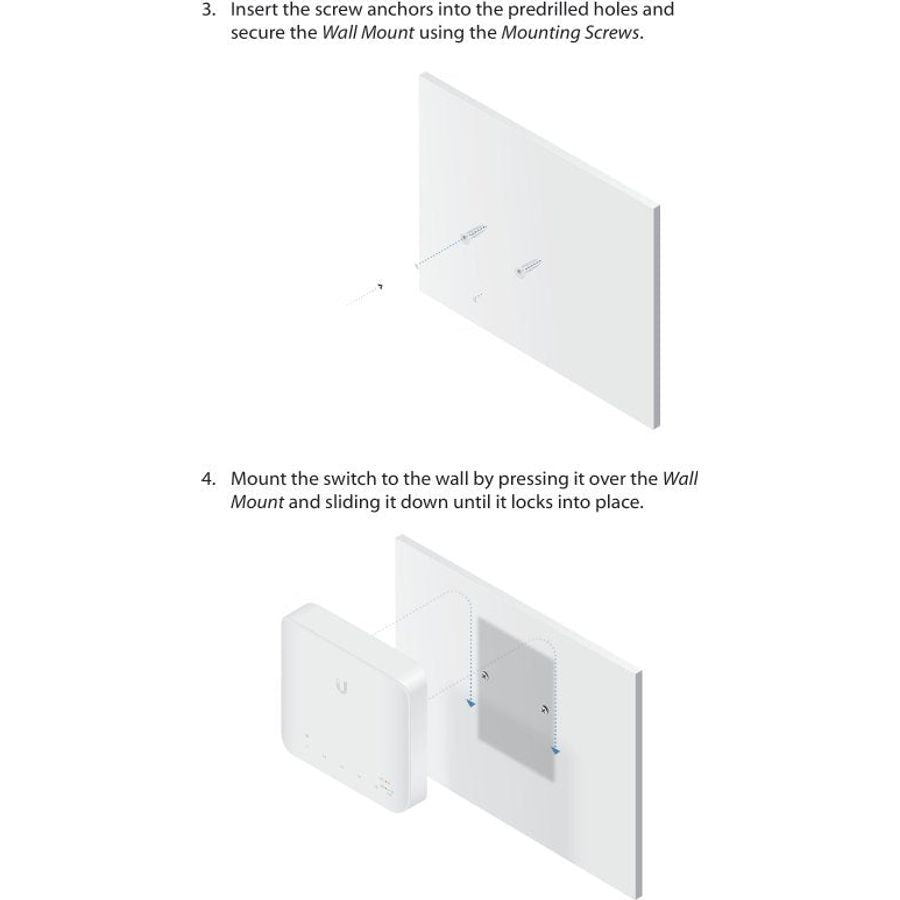

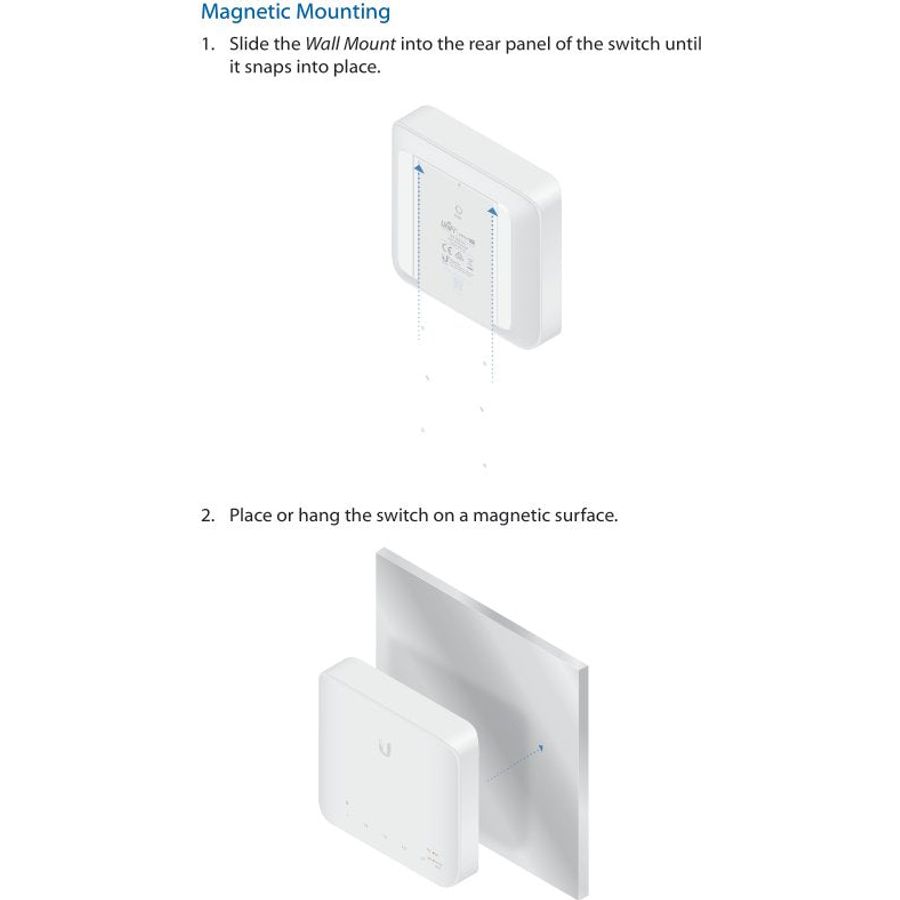

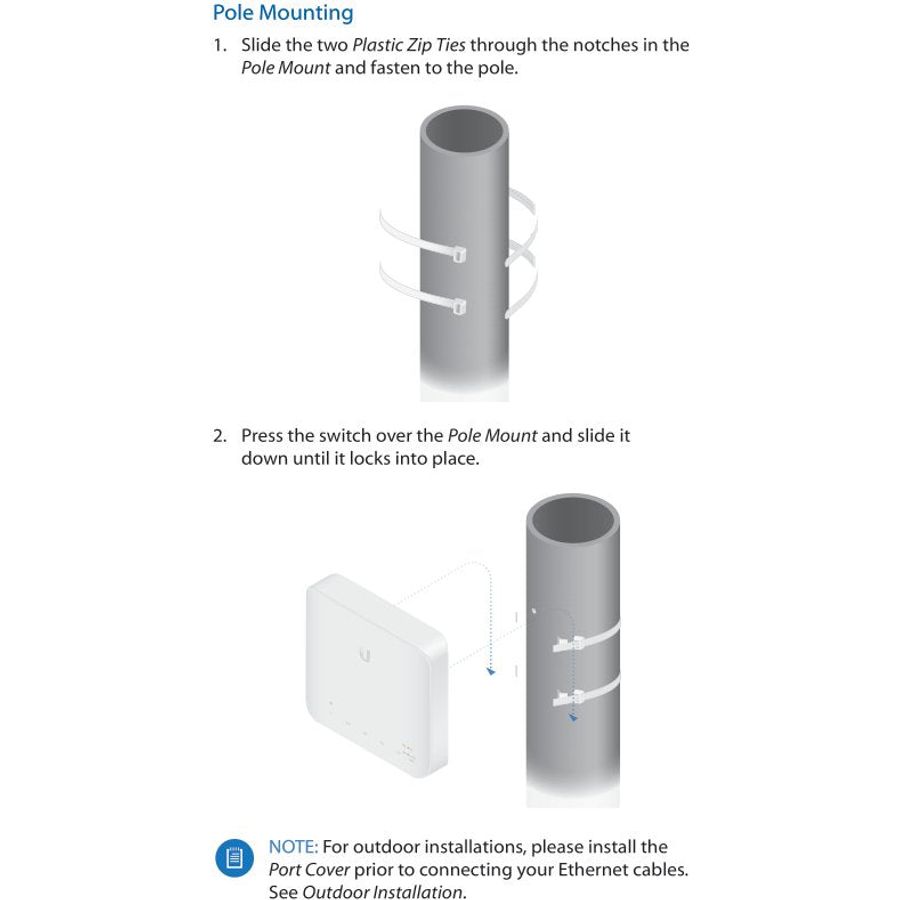

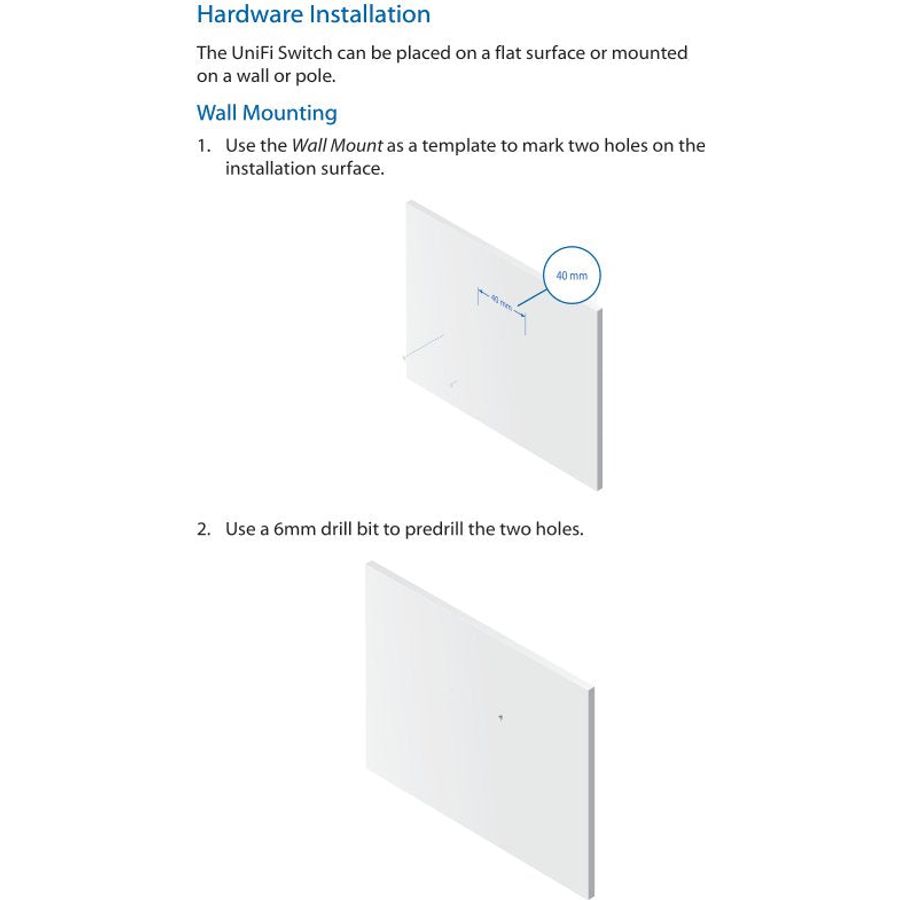

Mounting: Desktop, Wall and Pole-Mount
Operating System: UniFi
Operating Temperature: -40°C to 55°C
PoE Input: 802.3af/at/bt
PoE Output: 802.3af on Ports 2~5

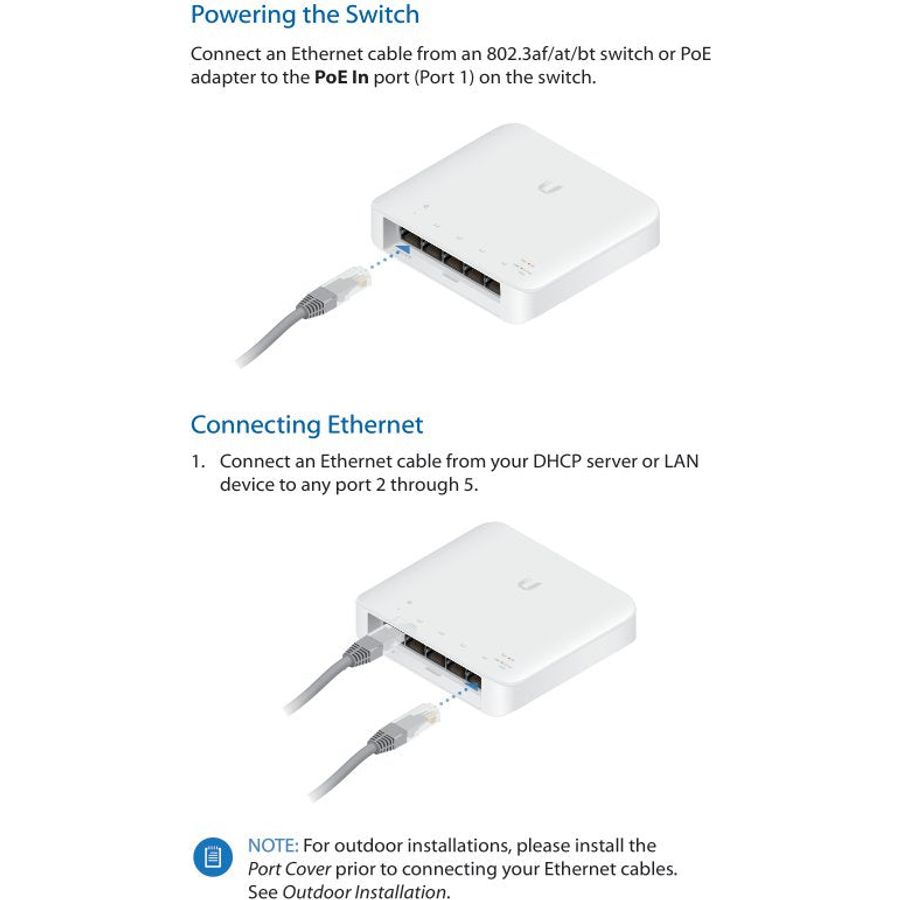

Power Input: 802.3af/at/bt on Port 1
Serial Interface: 1x RJ45 Ethernet In-Band
SFP Ports: None
Supported Voltage Range: 44–57V (802.3af) 50-57V (802.3bt)
Dimensions: 122.5 x 107.1 x 28.0mm
Weight: 230g

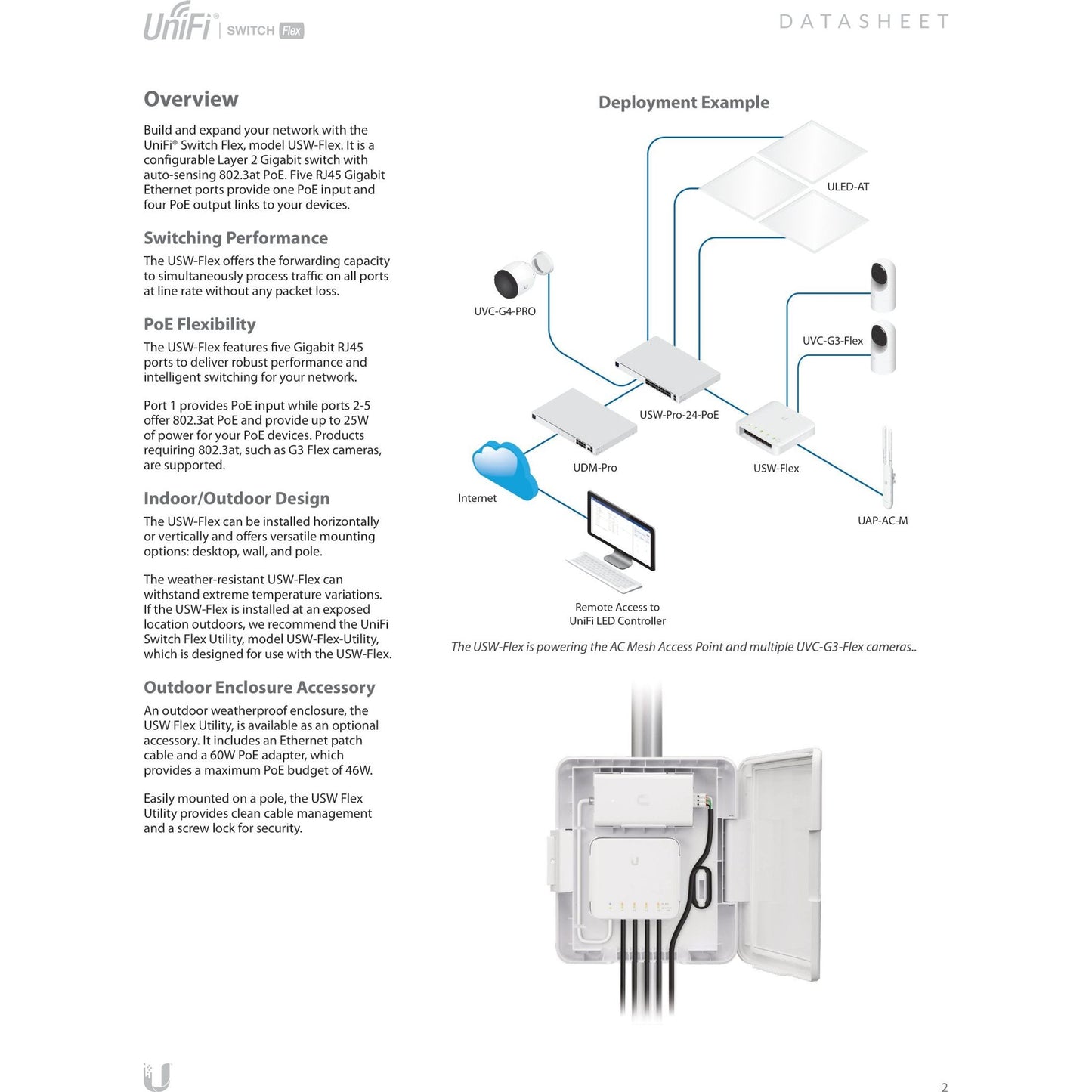

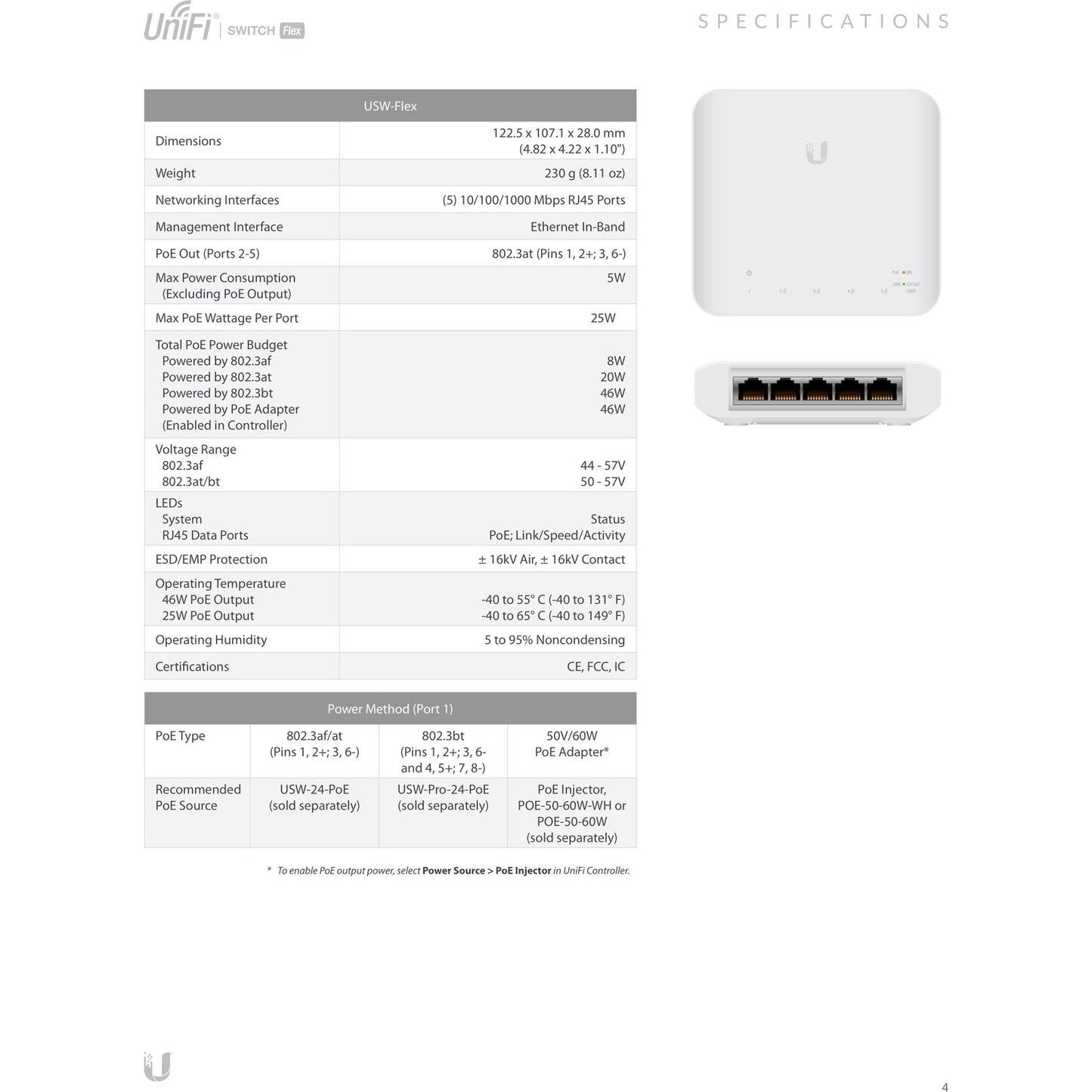

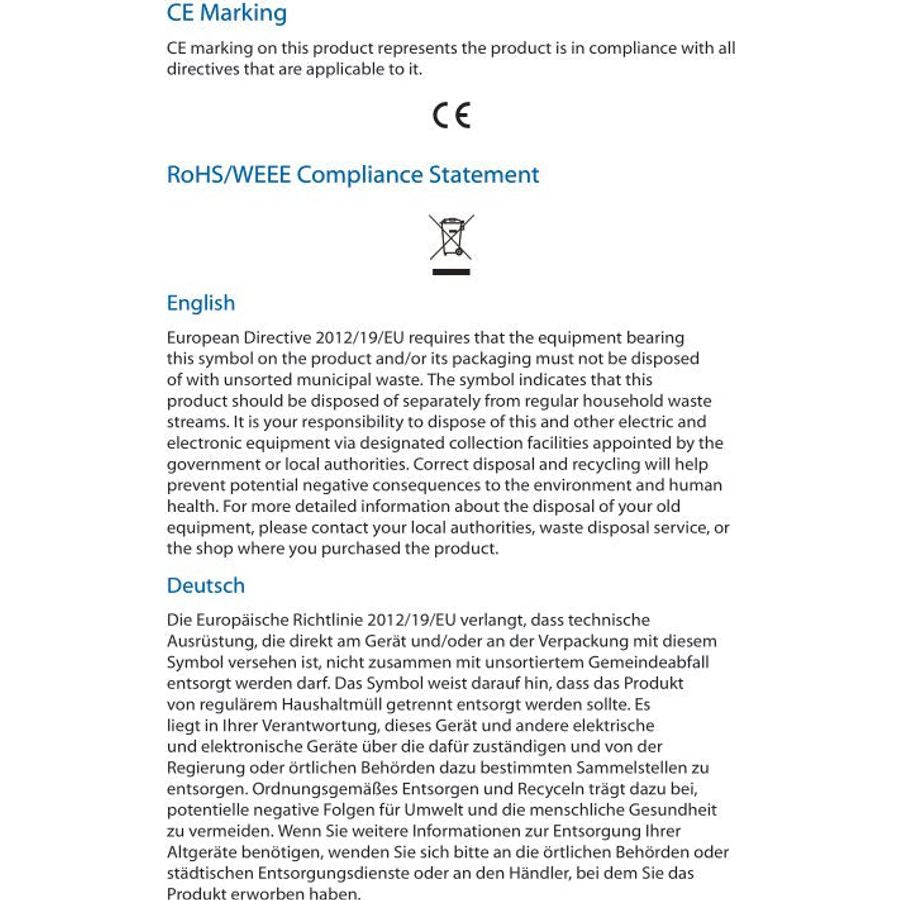

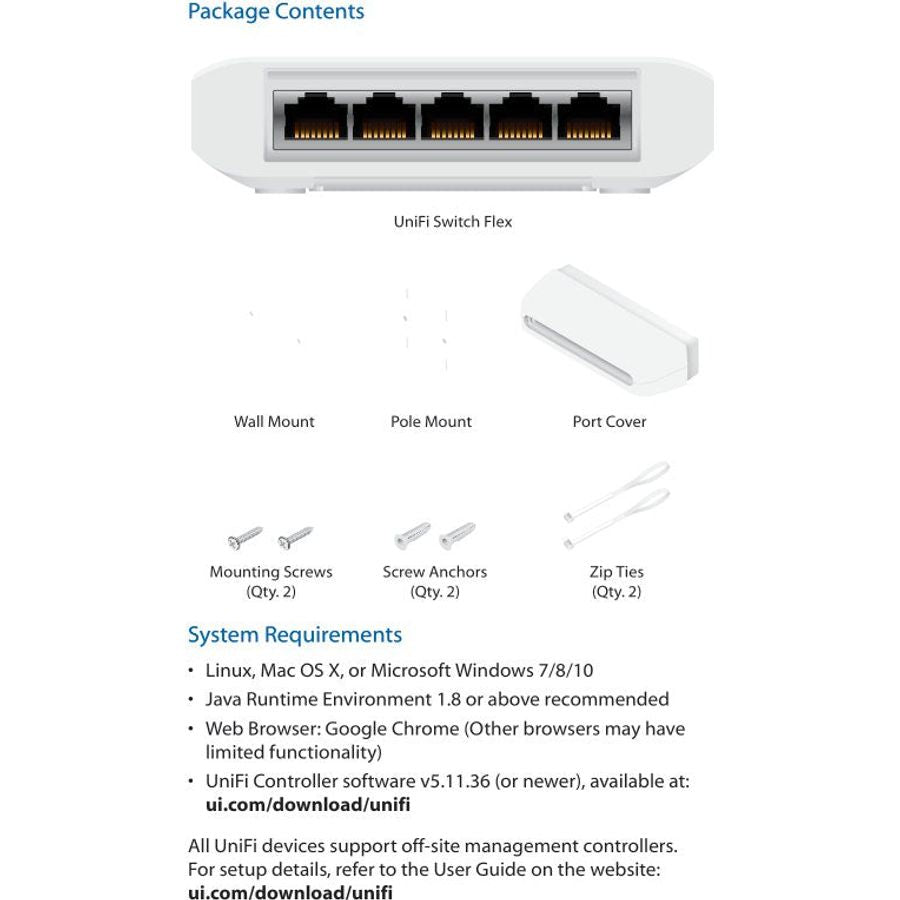

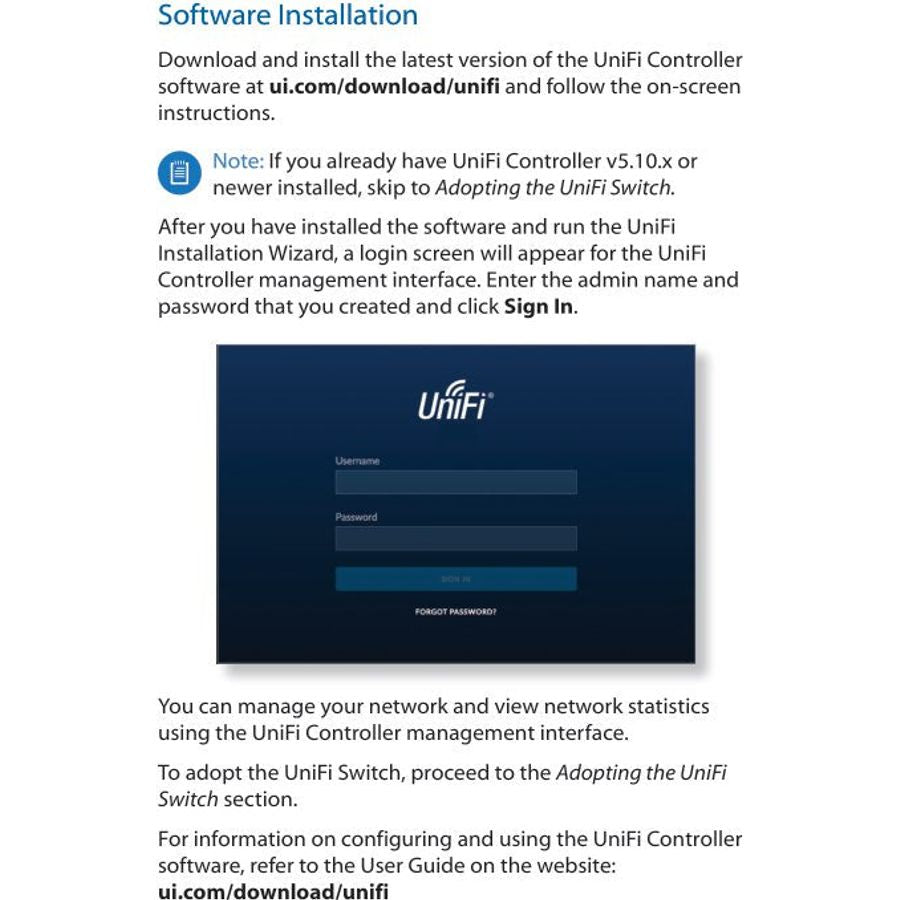

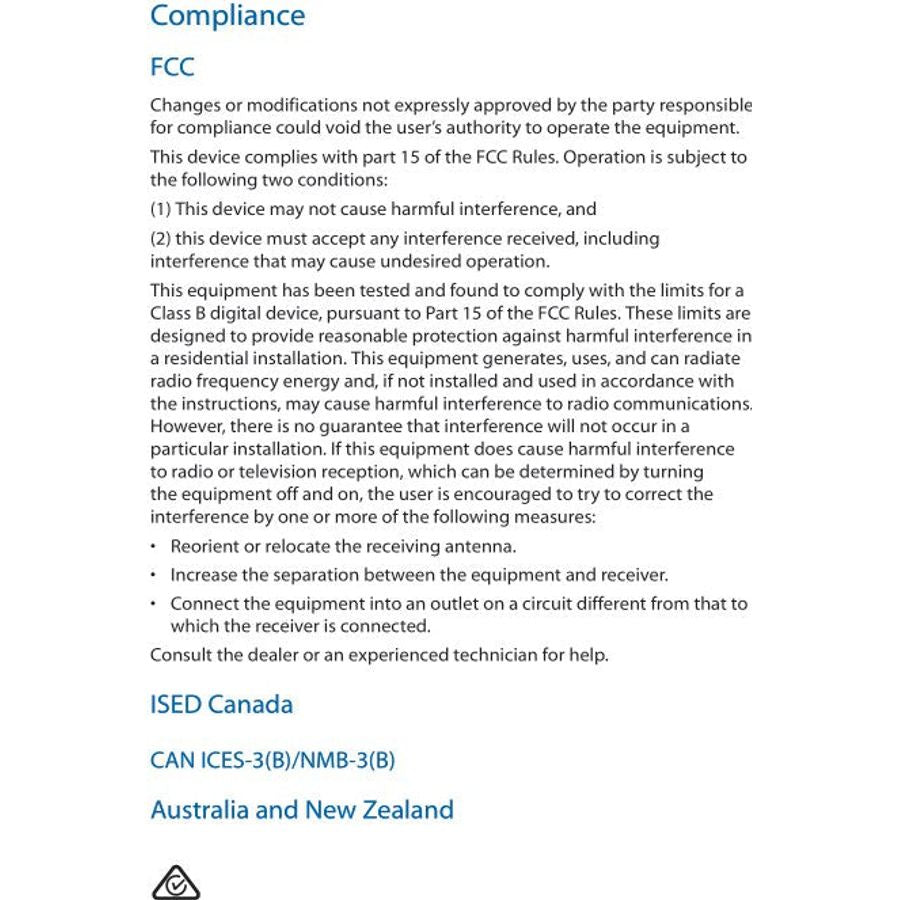

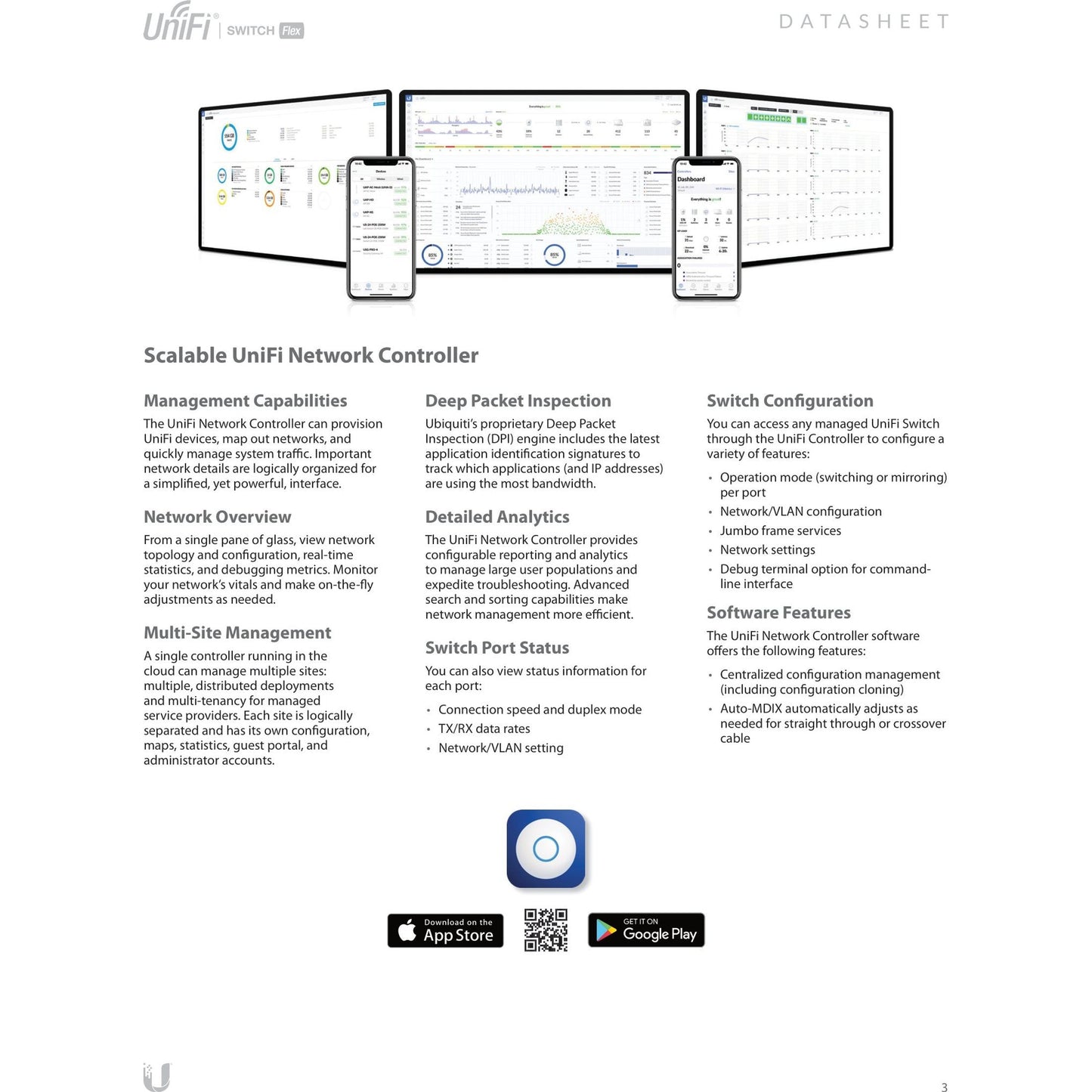

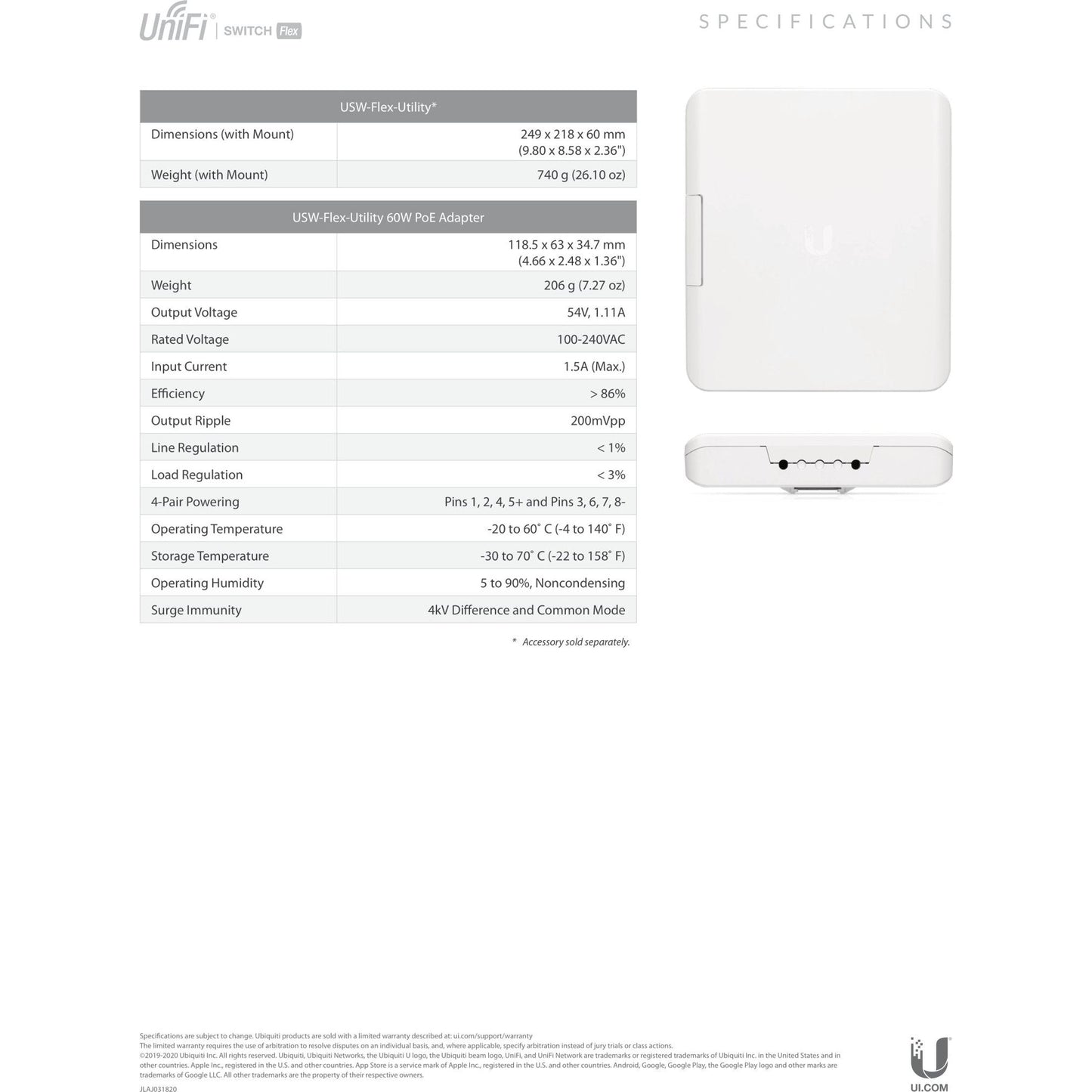

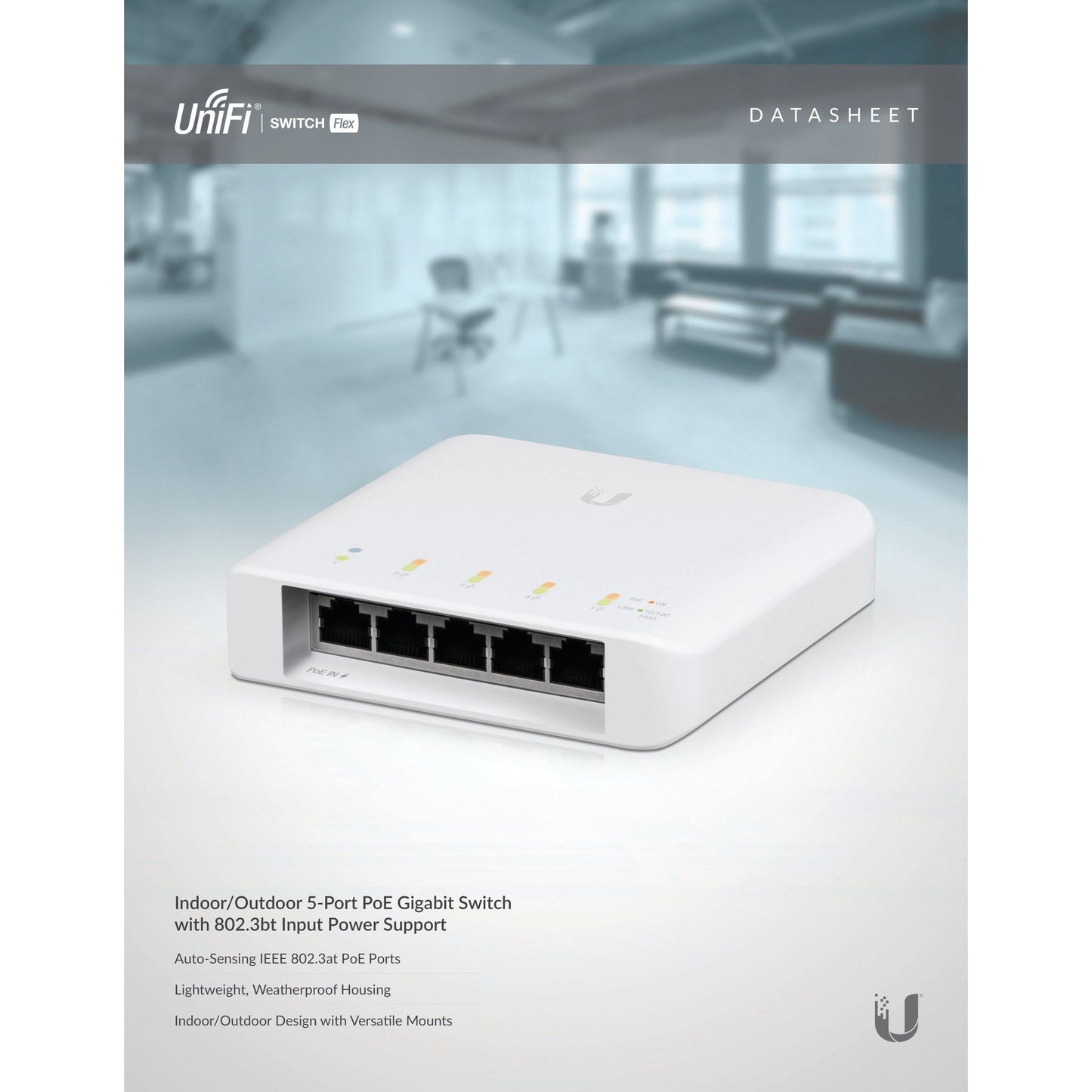

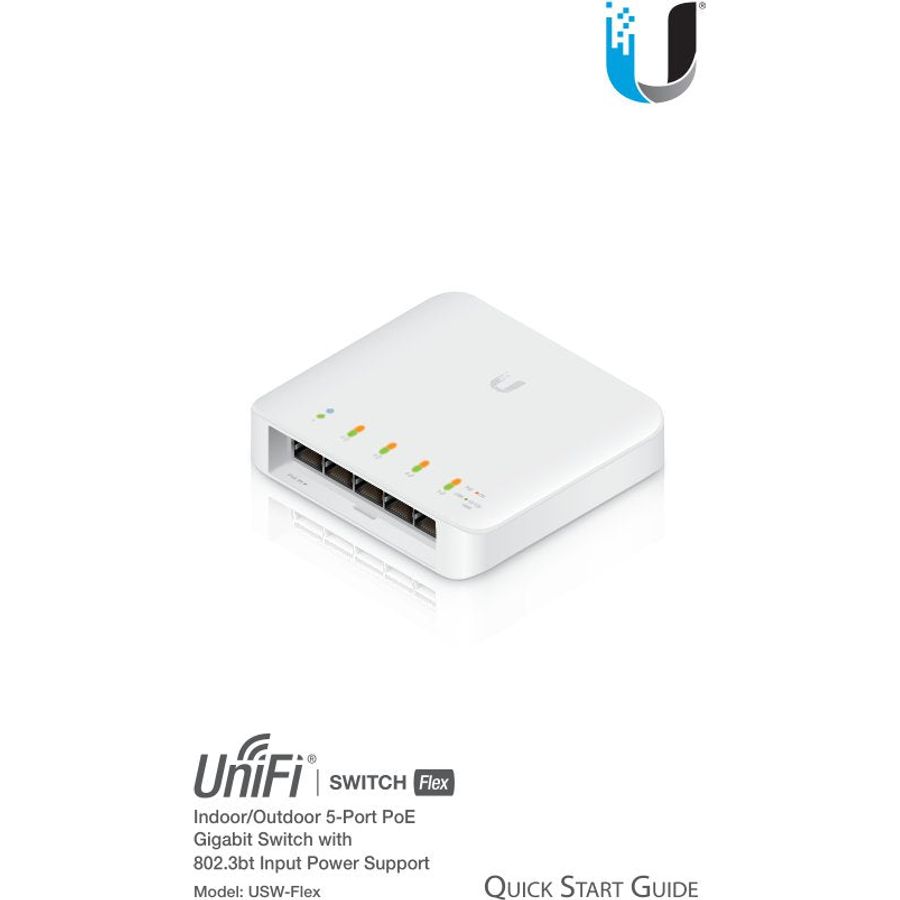

For more in-depth information, zoom in on picture of data sheet.
SKU | USW-5FLEX |
---|---|
Manufacturer | Ubiquiti |
