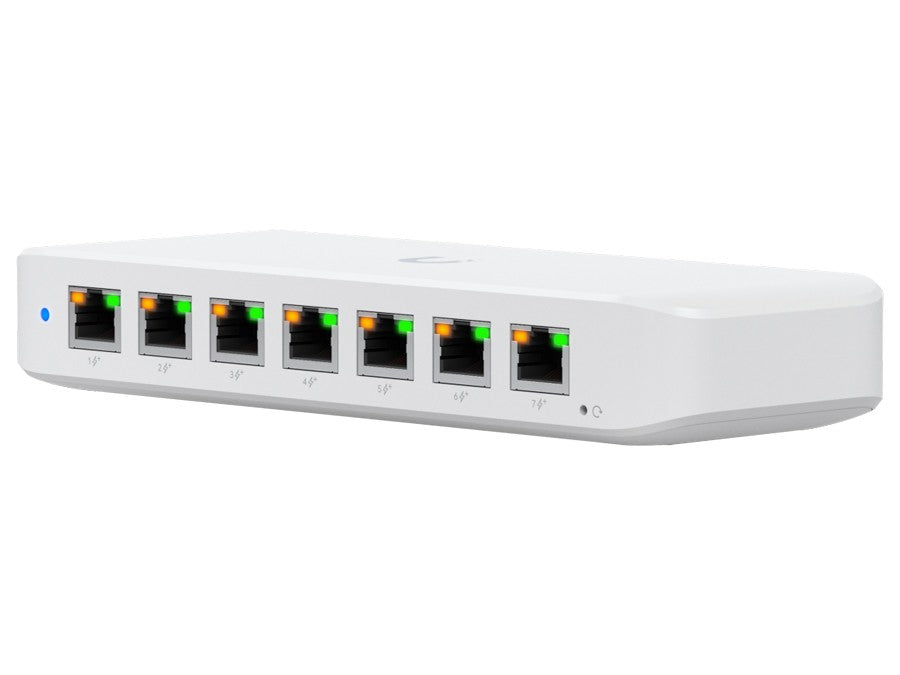

Ubiquiti UniFi Switch Ultra 8 Port Gigabit 1PoE Input 7 PoE Out

Ubiquiti's USW-ULTRA is a compact Layer 2 switch featuring 8 Gigabit Ports with 1x PoE input, 7x PoE output, and a PoE budget dependent on the power source.

It can be configured and managed with the UniFi Network Application.

*Note: Power Supply not included.

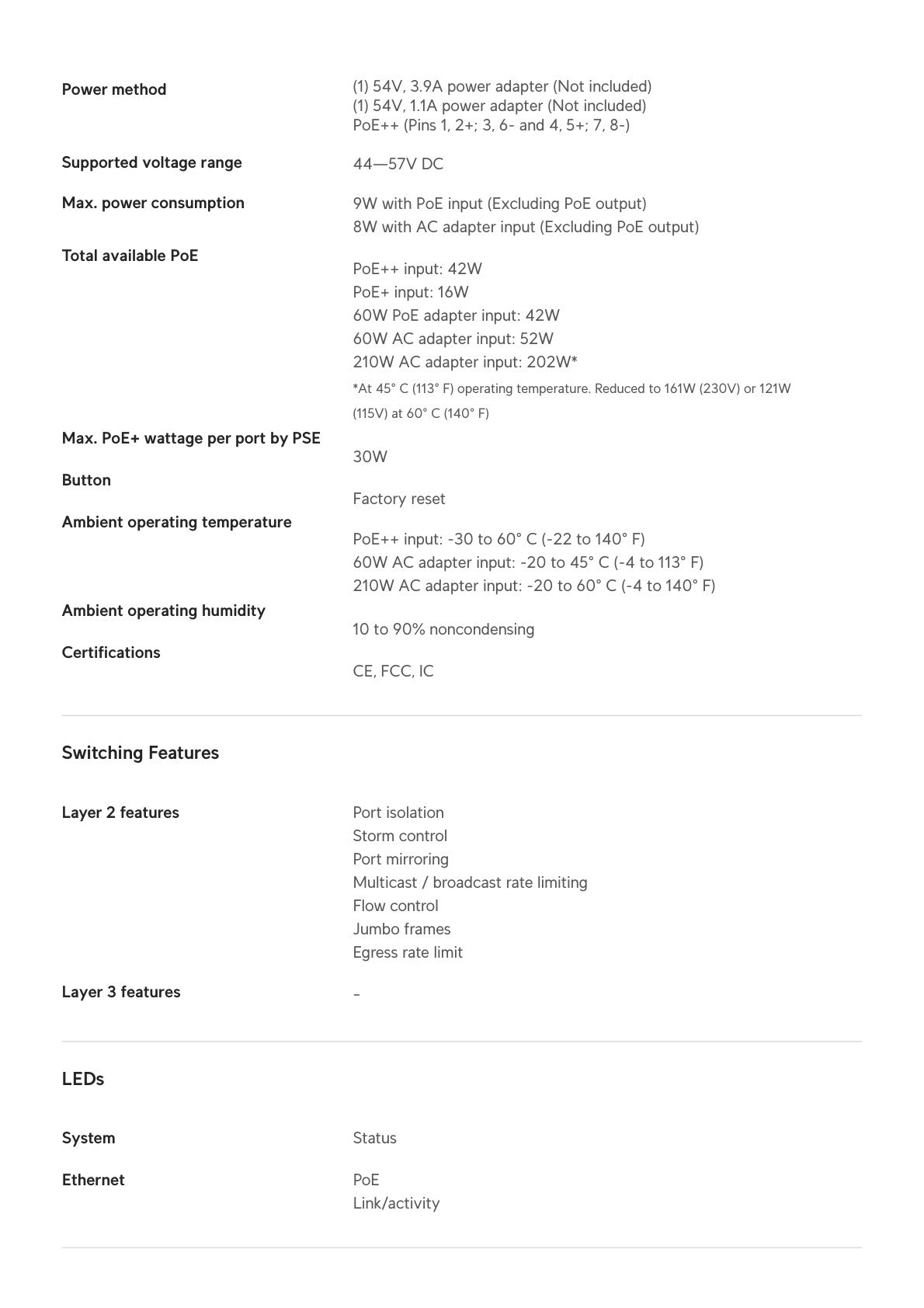

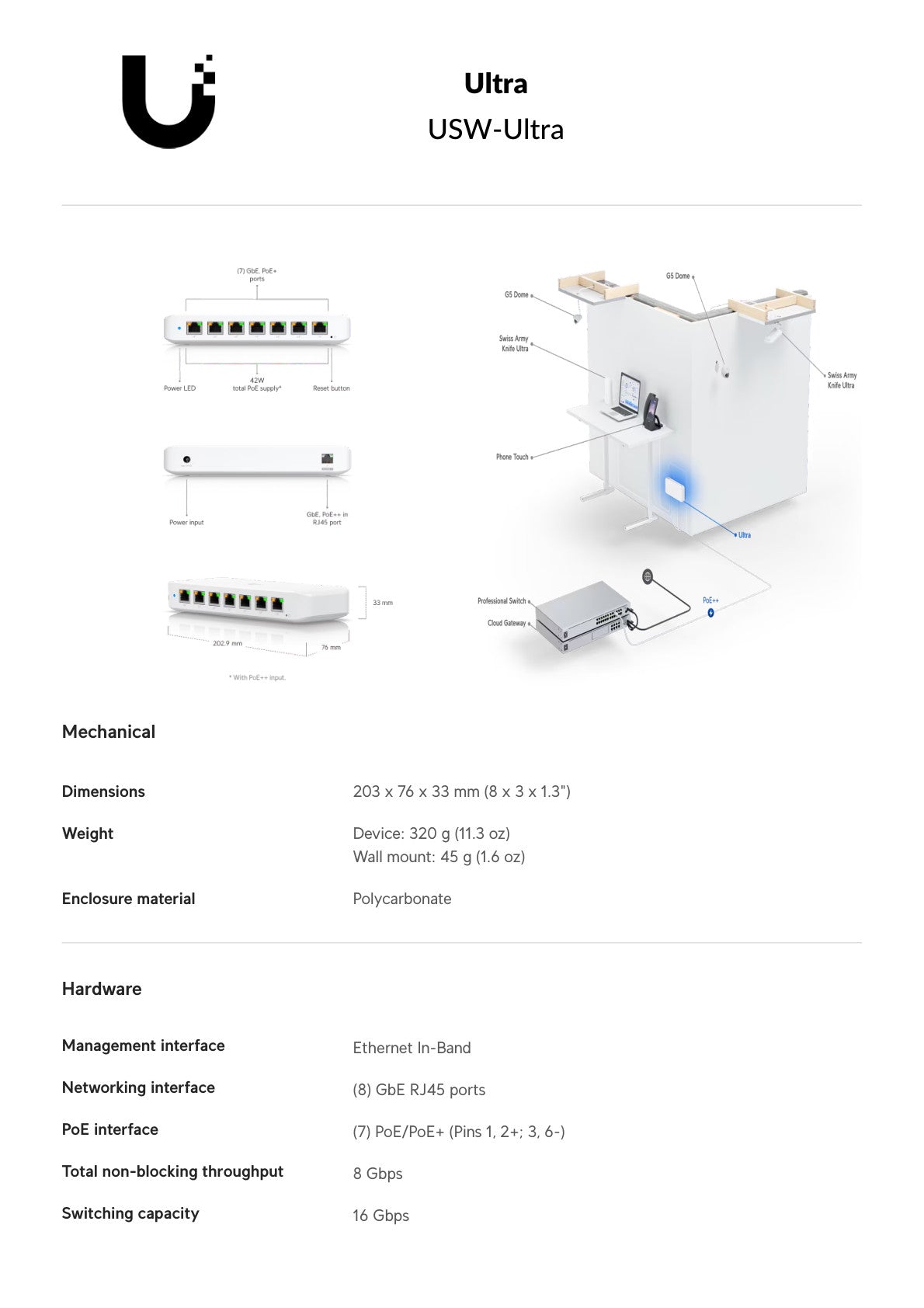

Specifications: Ethernet Ports: 8x 10/100/1000 Hardware Button: Reset Max. Power Consumption: 8W (Using a Power Supply) 9W (Using a PoE Adapter) Mounting: Desktop or Wall Mount Operating System: UniFi Operating Temperature: PoE++ input: -30 to 60°C ; 60W AC input: -20 to 45°C ; 210W AC input: -20 to 60°C PoE Input: 802.3af/at/bt PoE Output: 802.3af/at on Ports 2~8 Power Input: 802.3af/at/bt on Port 1 ; 44-57V DC terminal ; 57V Power Supply (Not Included) Serial Interface: None SFP Ports: None Supported Voltage Range: 44–57V

Dimensions: 203 x 76 x 33 mm Weight: 320g

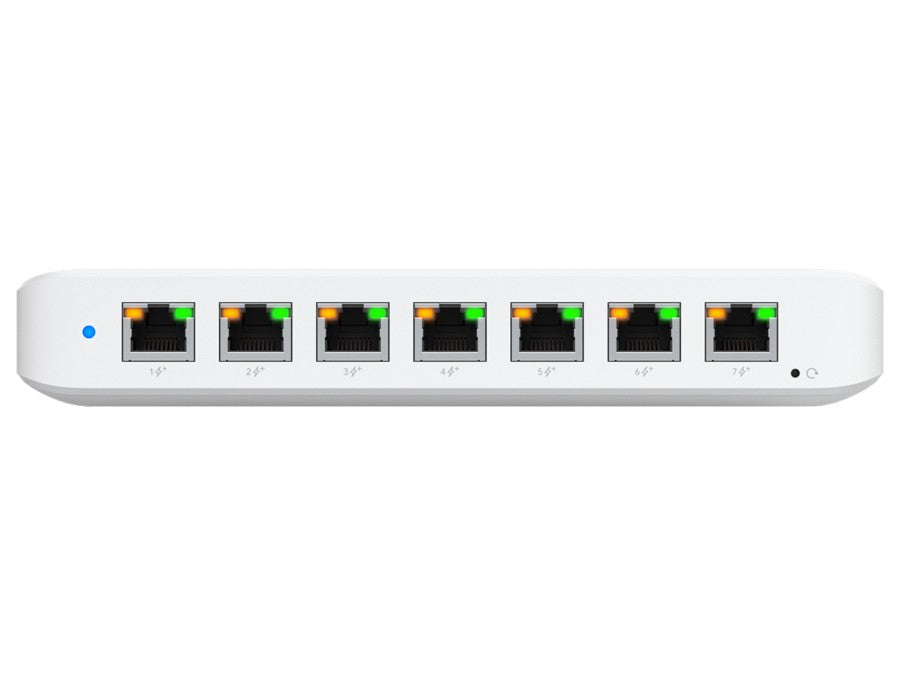

• 8 GIGABIT ETHERNET PORTS: Connects up to 8 devices at speeds up to 1000Mbps per port, making it suitable for homes or small offices that need reliable wired network connections.
• POE IN AND POE OUT: Receives power through a PoE input on Port 1 (802.3af/at/bt) and delivers PoE power output on Ports 2 to 8 (802.3af/at), eliminating the need for separate power adapters on connected devices.

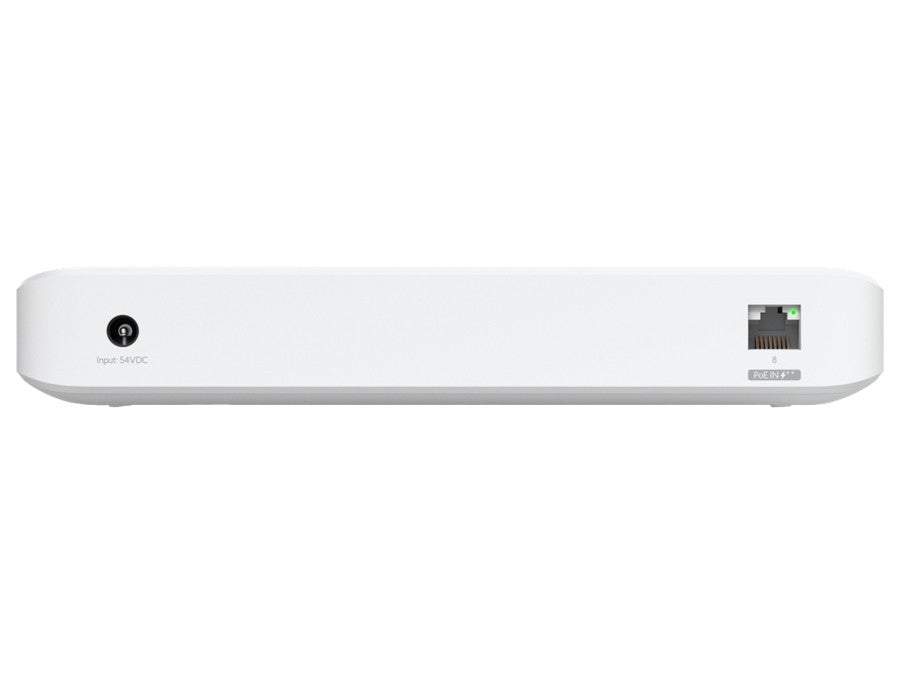

• FLEXIBLE POWER OPTIONS: Can be powered via a 802.3af/at/bt PoE source on Port 1, a 44-57V DC terminal, or a 57V power supply (not included), giving you multiple ways to integrate it into an existing setup.

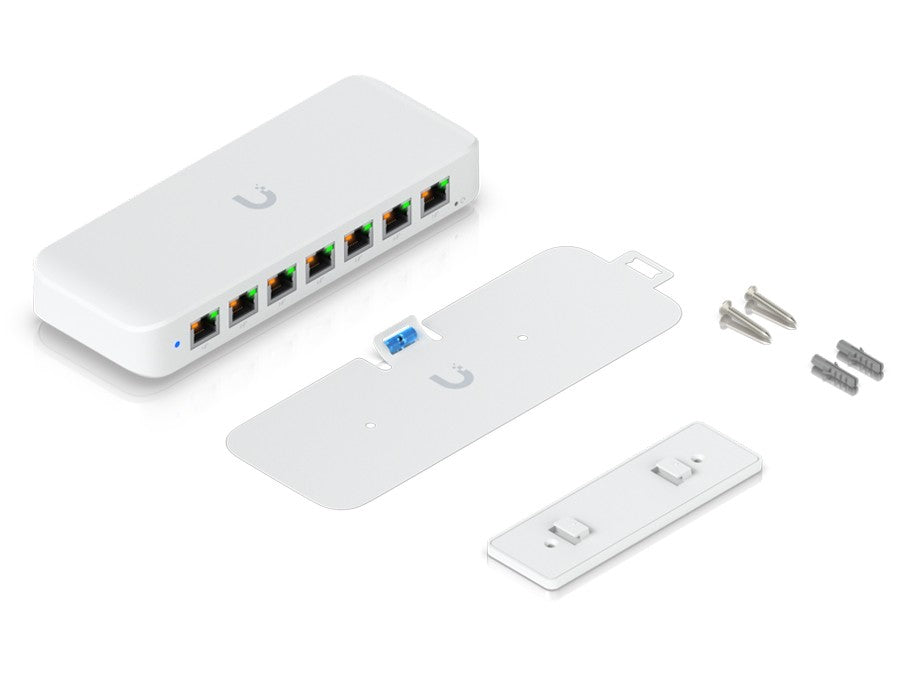

• COMPACT AND MOUNTABLE: Measures 203 x 76 x 33mm and weighs 320g, with support for desktop or wall mounting so it fits neatly into tight spaces without taking up unnecessary room.
• UNIFI SOFTWARE MANAGED: Configured and managed through the UniFi Network Application, allowing centralised control and monitoring alongside other UniFi devices on the same network.
