Ubiquiti UniFi WAN Switch RJ45 3x10Gbps Ethernet Ports

Ubiquiti's USW-WAN-RJ45 is a 10Gbps WAN Switch, linking two Shadow Mode High Availability UniFi Gateways to a single ISP. The unit features 3x 10Gbps Ethernet Ports, 1x Gigabit Ethernet Management port and redundant power supplies.

It can be configured and managed with the UniFi Network Application.

Specifications: Ethernet Ports: 3x 10/100/1000/2500/10000; 1x 10/100/1000 (Management) Hardware Button: Reset Max. Power Consumption: 18W Mounting: Rack-Mount Operating System: UniFi Operating Temperature: -5°C to 40°C PoE Input: None PoE Output: None Power Input: 2x IEC Power Cord (Included) Serial Interface: None SFP Ports: None Supported Voltage Range: 100 to 240VAC

Dimensions: 442.4 x 120 x 43.7 mm Weight: 2.4kg

• HIGH-SPEED WAN CONNECTIVITY: Features three 10Gbps Ethernet ports supporting speeds from 10Mbps up to 10Gbps, allowing you to connect two UniFi Gateways in Shadow Mode High Availability configuration to a single ISP without bottlenecking your connection.

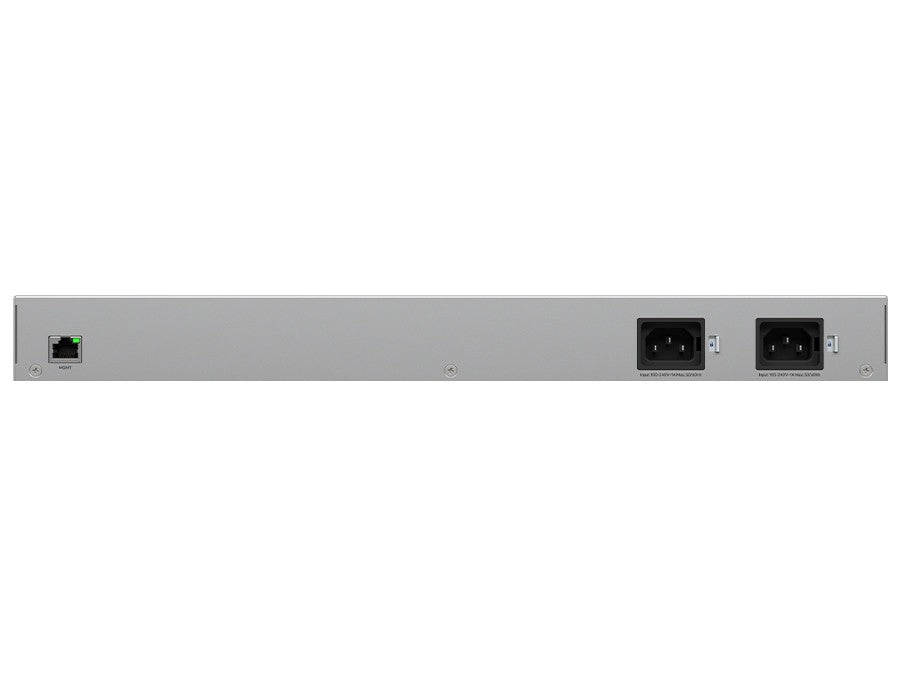

• BUILT-IN REDUNDANCY: Includes dual redundant power supplies powered by two IEC power cords, reducing the risk of downtime caused by a single power supply failure in your network setup.
• DEDICATED MANAGEMENT PORT: Comes with a separate 1x Gigabit Ethernet management port, keeping management traffic isolated from your main WAN traffic for cleaner and more controlled network administration.

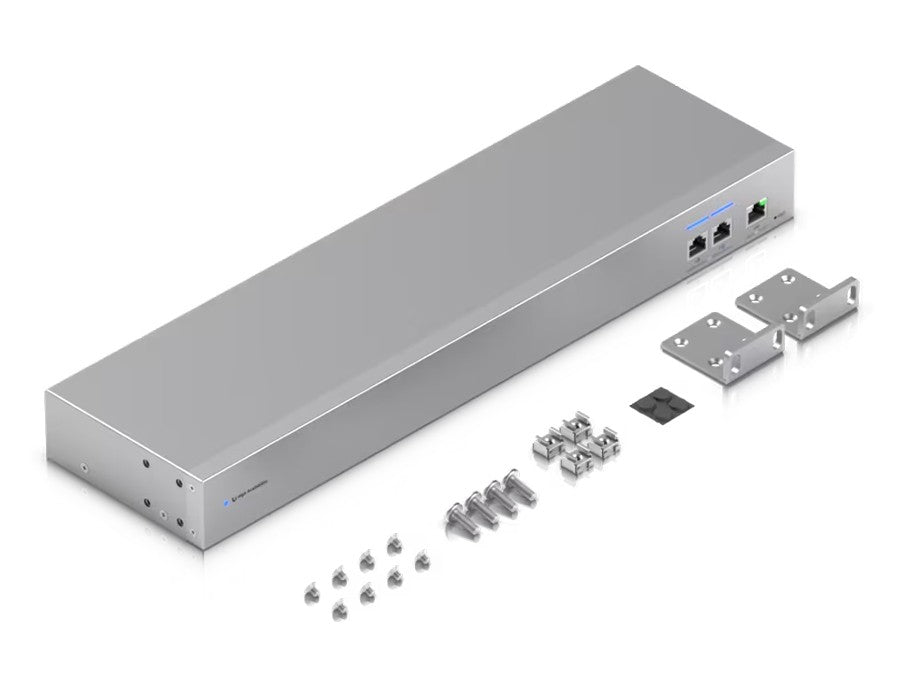

• RACK-MOUNT DESIGN: Designed for standard rack installation with dimensions of 442.4 x 120 x 43.7mm and a weight of 2.4kg, making it straightforward to integrate into an existing rack-mounted network setup.
• UNIFI SOFTWARE MANAGED: Configured and managed through the UniFi Network Application, allowing centralised control alongside other UniFi devices you already manage from the same platform.
