Ubiquiti UniFi WAN Switch with 3SFP+

Ubiquiti's USW-WAN is a 10G SFP+ WAN Switch which enables the linking of two shadow mode, high-availability UniFi gateways to a single ISP. The unit features 3x 10Gbps SFP+ Slots, 1x Gigabit management port and dual power supplies for redundancy.

It can be configured and managed with the UniFi Network Application.

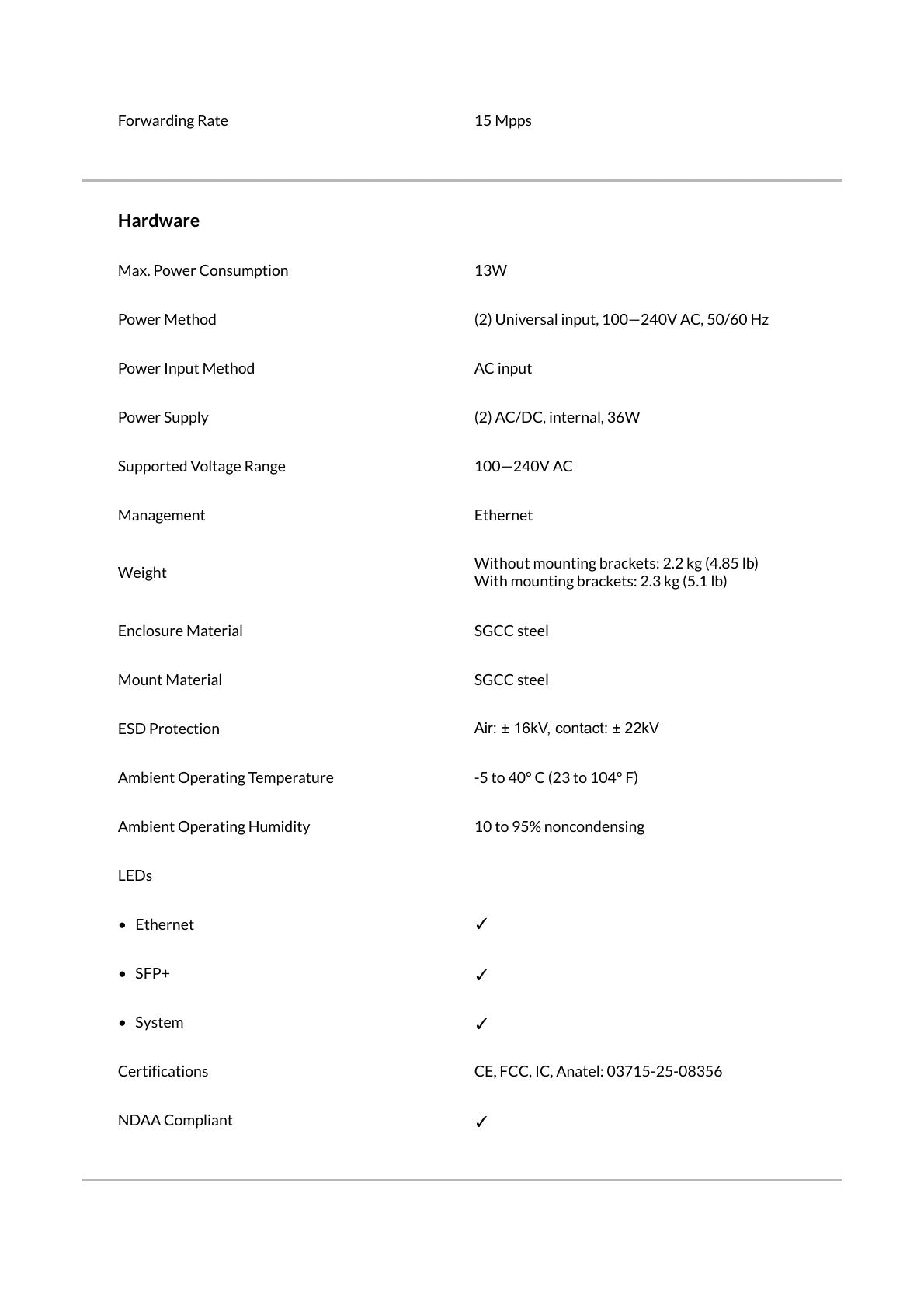

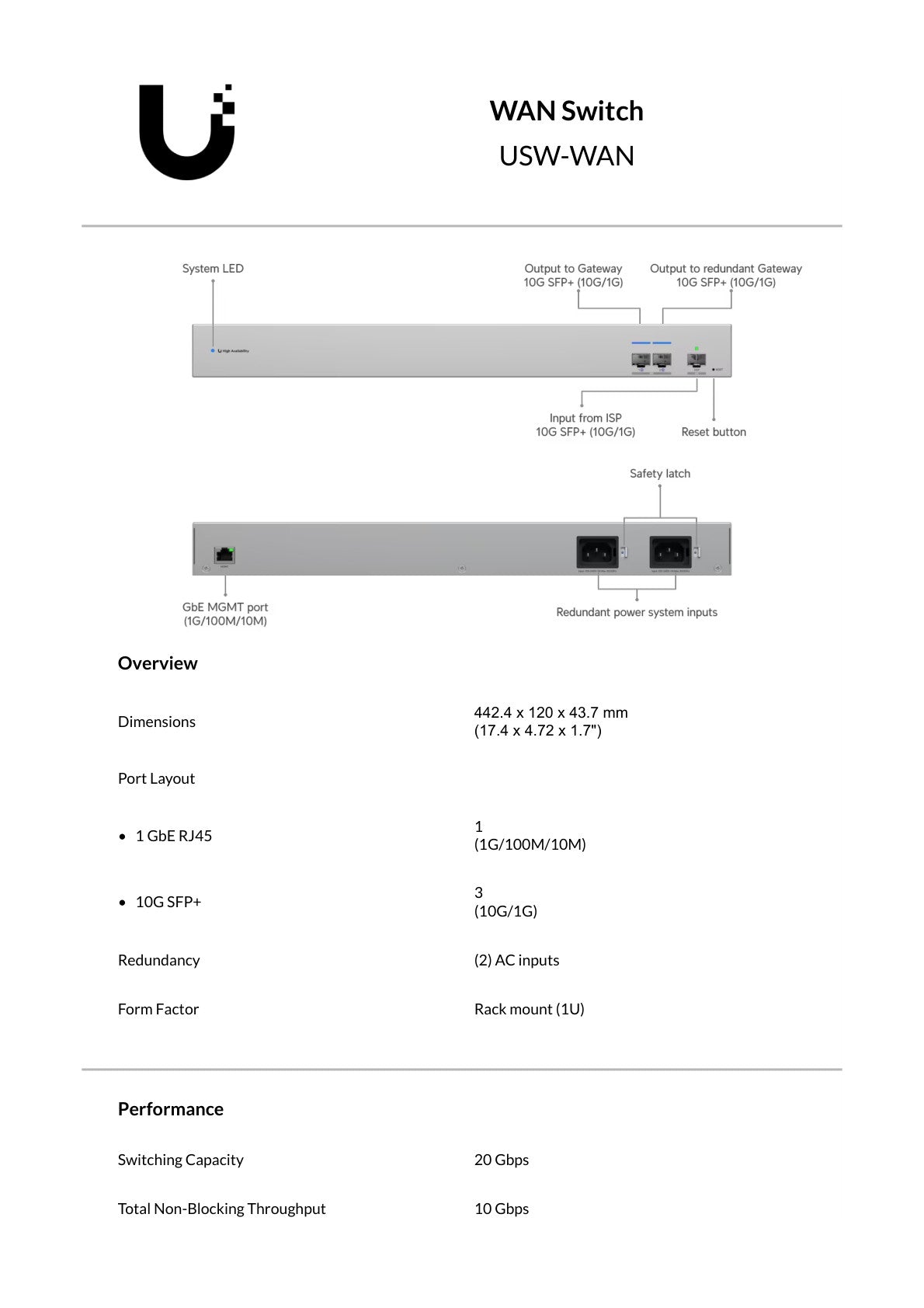

Specifications: Ethernet Ports: 1x 10/100/1000 Hardware Button: Reset Max. Power Consumption: 13W Mounting: Rack-Mount Operating System: UniFi Operating Temperature: -5°C to 40°C PoE Input: None PoE Output: None Power Input: 2x IEC Power Cord (Included) Serial Interface: None SFP Ports: 3x 10Gbps (SFP+) Supported Voltage Range: 100 to 240VAC

Dimensions: 442.4 x 120 x 43.7 mm Weight: 2.3kg

• HIGH-AVAILABILITY WAN SWITCHING: Enables two shadow mode UniFi gateways to share a single ISP connection, supporting high-availability network setups without requiring separate ISP links for each gateway.

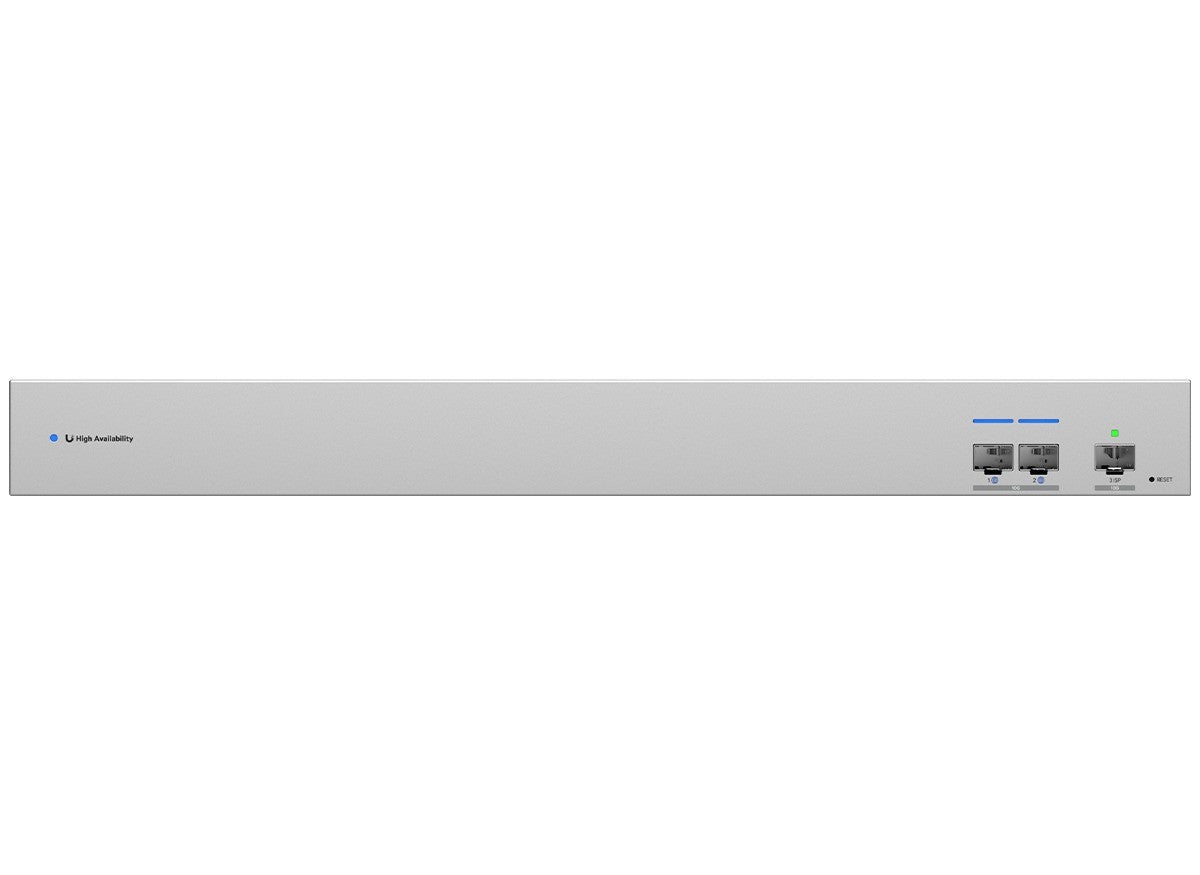

• THREE 10G SFP+ PORTS: Equipped with 3x 10Gbps SFP+ slots for fast, flexible fibre or direct-attach connectivity between your gateways and ISP equipment.

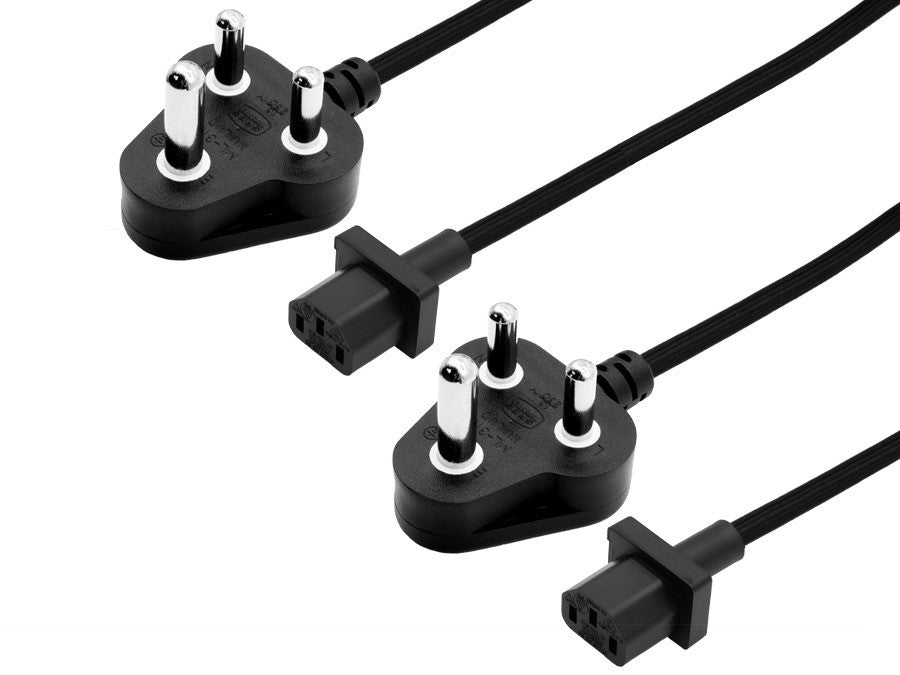

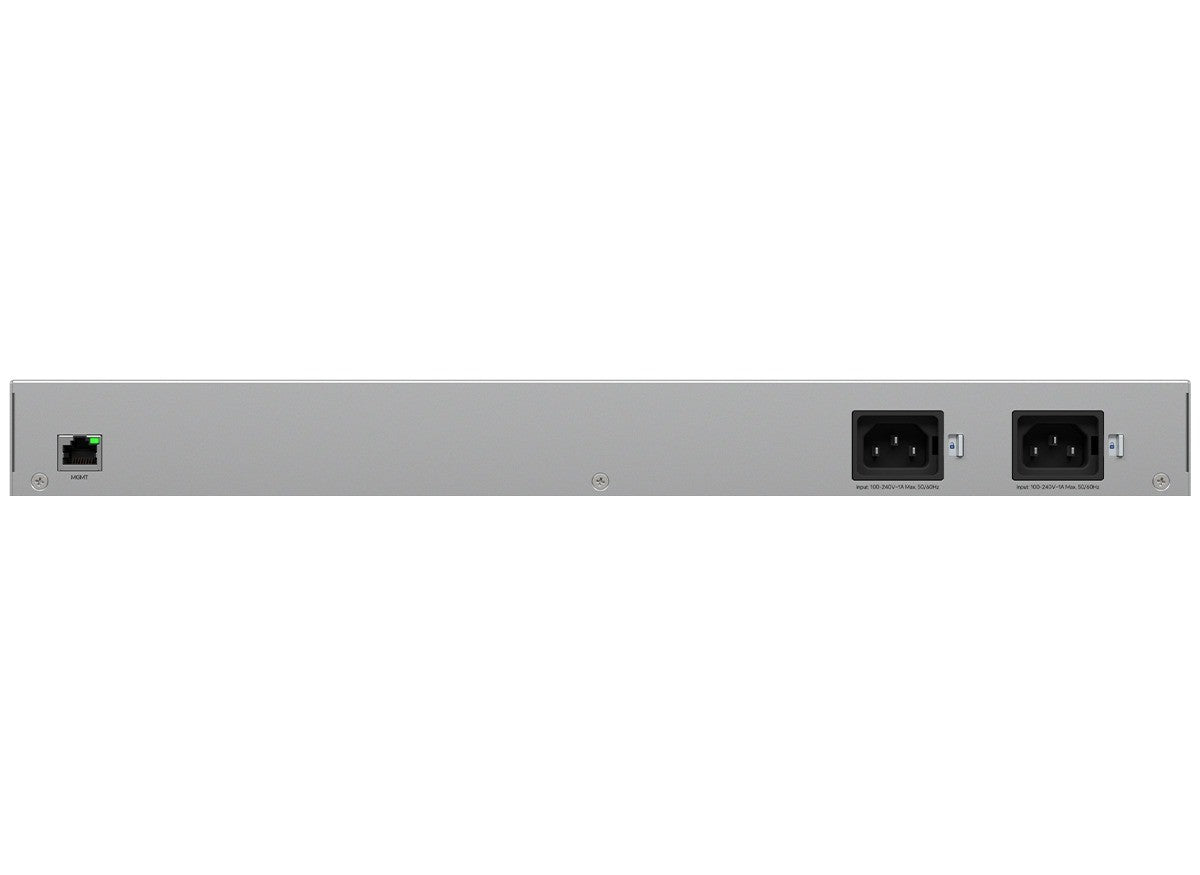

• DUAL POWER SUPPLIES FOR REDUNDANCY: Includes two IEC power inputs with power cords included, so the switch remains operational if one power supply fails, reducing the risk of unplanned downtime.
• CENTRALLY MANAGED VIA UNIFI: Configured and managed through the UniFi Network Application, keeping this switch integrated within your existing UniFi environment for streamlined network management.

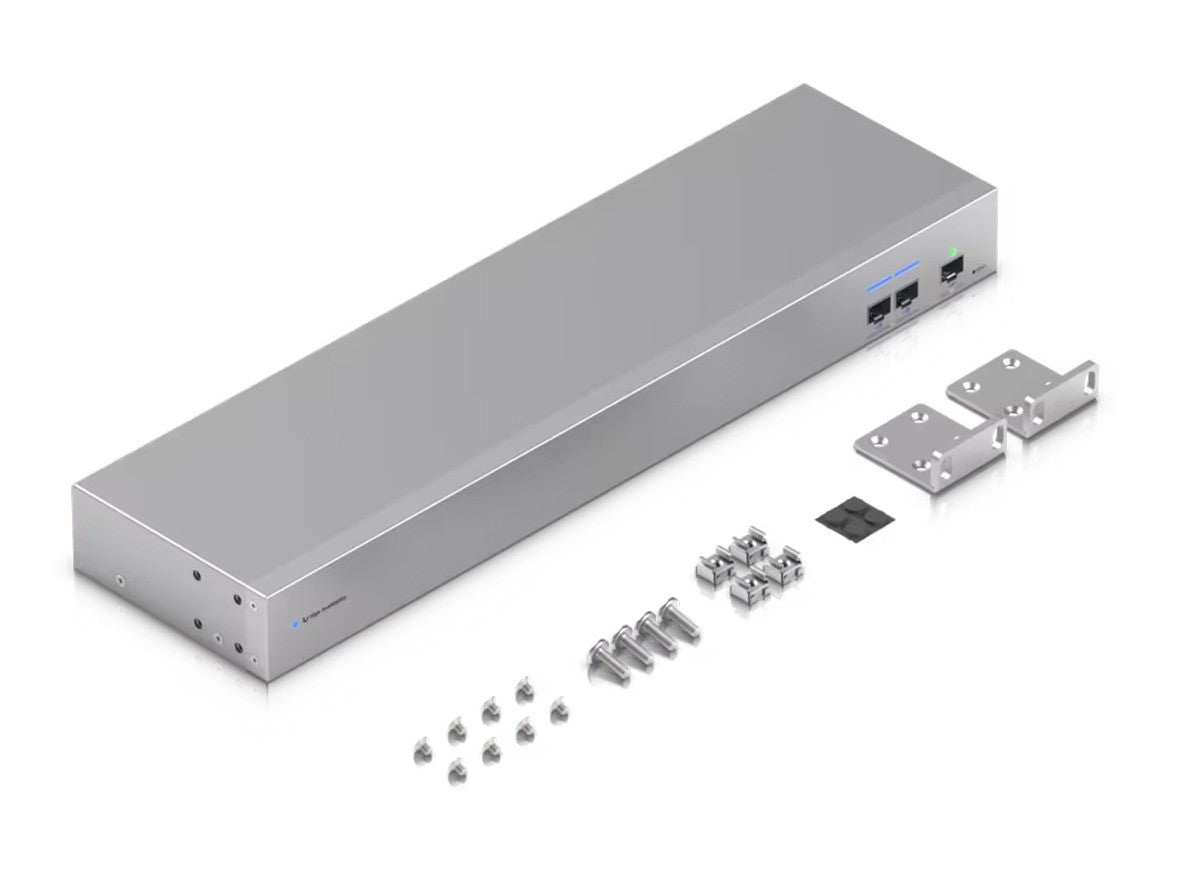

• RACK-MOUNTABLE WITH DEDICATED MANAGEMENT PORT: Fits standard rack installations and includes a dedicated 1x Gigabit Ethernet management port, keeping management traffic separate from your primary WAN connections.
