Ubiquiti UniFi WiFi 7 Pro Outdoor Tri-Band AP

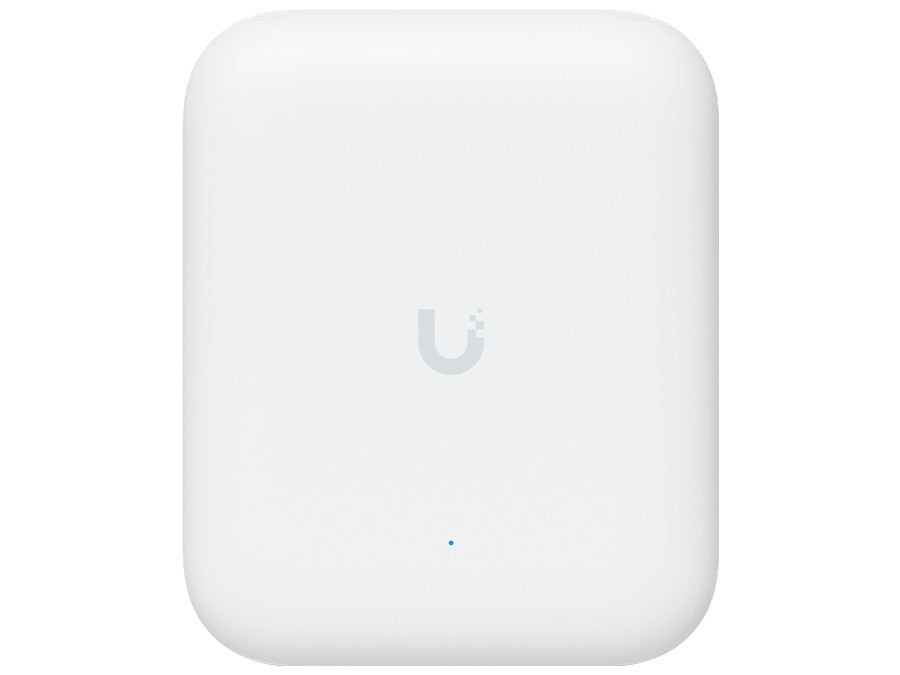

Ubiquiti's U7-PRO-OUT is a WiFi 7 Dual Band, IP67 outdoor access point featuring 4 spatial streams, 1x 2.5Gbps Ethernet port, two external antennas and a versatile wall and pole mounting. It delivers an aggregate data rate of up to 5Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands. It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

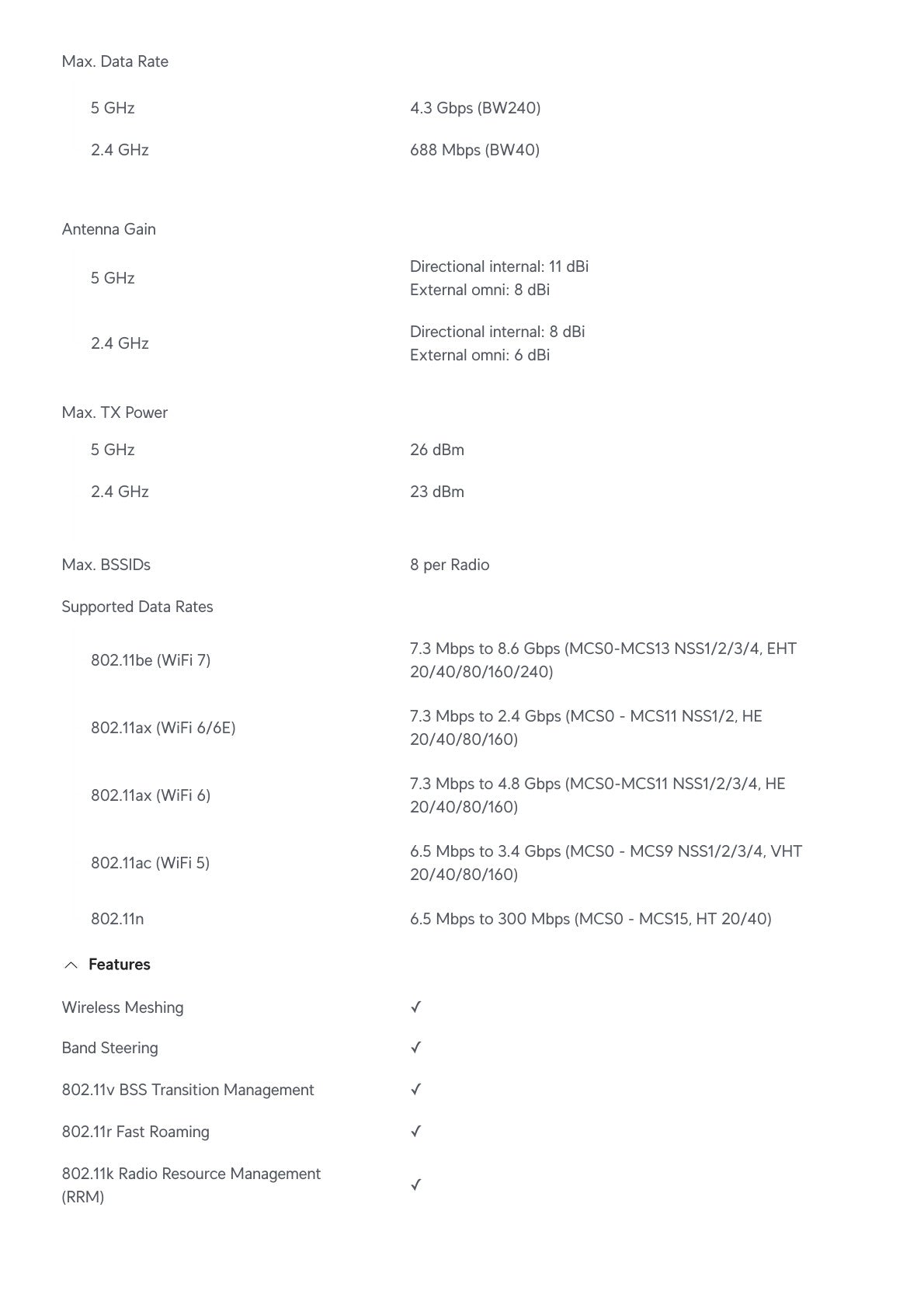

Specifications: Antenna Gain: 2.4GHz: Internal: 8 dBi External: 6 dBi; 5GHz: Internal: 11 dBi External: 8 dBi Beam-width: 2.4GHz: 90° ; 5GHz: 45° Data Rate: 2.4GHz: 688Mbps; 5GHz: 4.3Gbps Ethernet Ports: 1x 10/100/1000/2500 Hardware Button: Reset Max. Power Consumption: 21W Mounting: Wall or Pole Mount Operating System: UniFi Operating Temperature: -30°C to 60°C PoE Input: 802.3at (PoE+) or Passive PoE PoE Output: None Power Input: 802.3at (PoE+) or Passive PoE (Not Included) Serial Interface: None SIM Slots: None Supported Voltage Range: 42.5 to 57V USB Ports: None

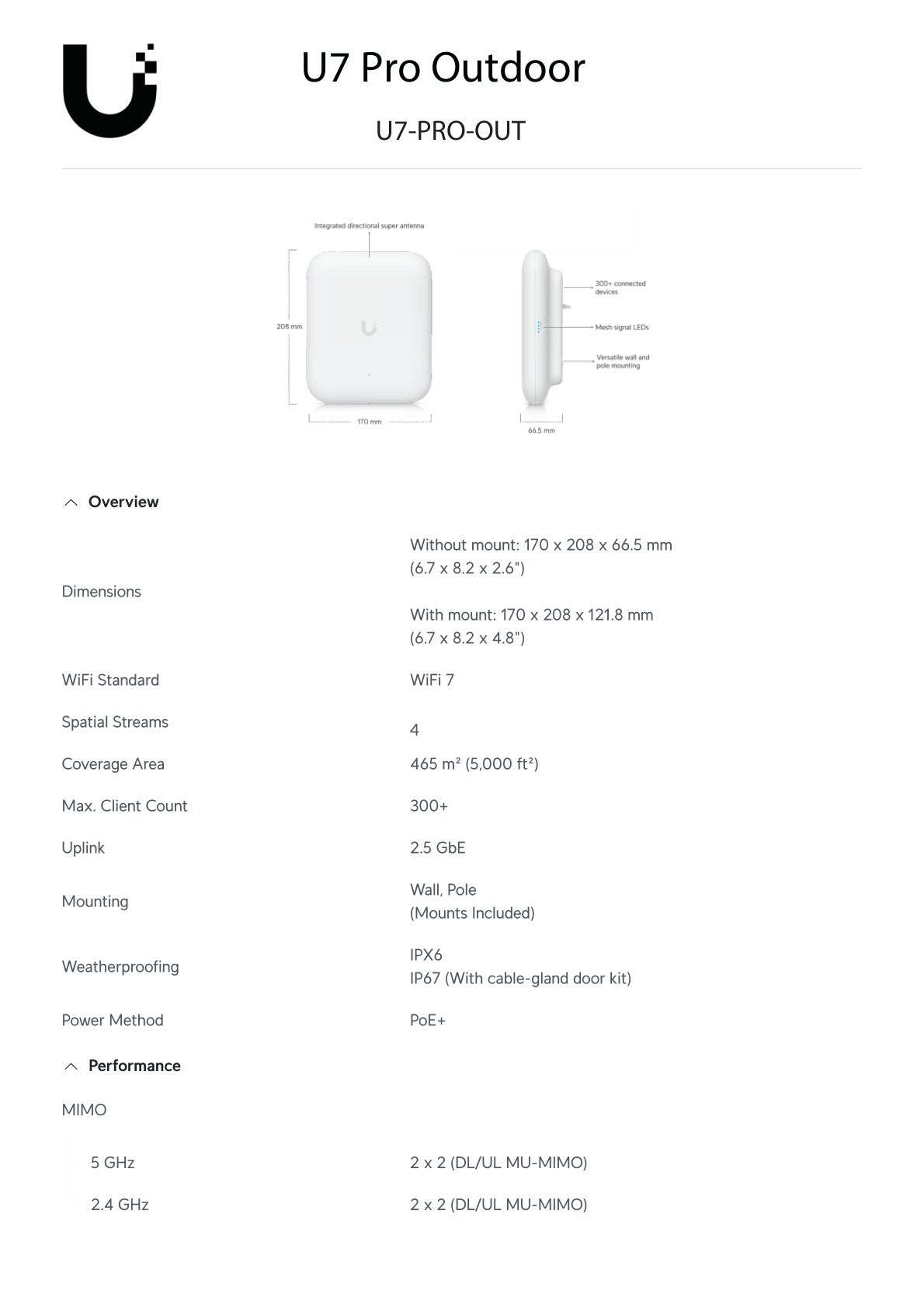

Dimensions: 170 x 208 x 66.5 mm Weight: 1.2kg

• WIFI 7 DUAL BAND PERFORMANCE: Delivers an aggregate data rate of up to 5Gbps across the 5GHz band at 4.3Gbps and the 2.4GHz band at 688Mbps, making it suitable for high-demand outdoor wireless deployments.
• IP67 WEATHERPROOF OUTDOOR DESIGN: Rated IP67 for outdoor use and built to operate in temperatures from -30C to 60C, so it can be reliably installed in exposed locations regardless of weather conditions.

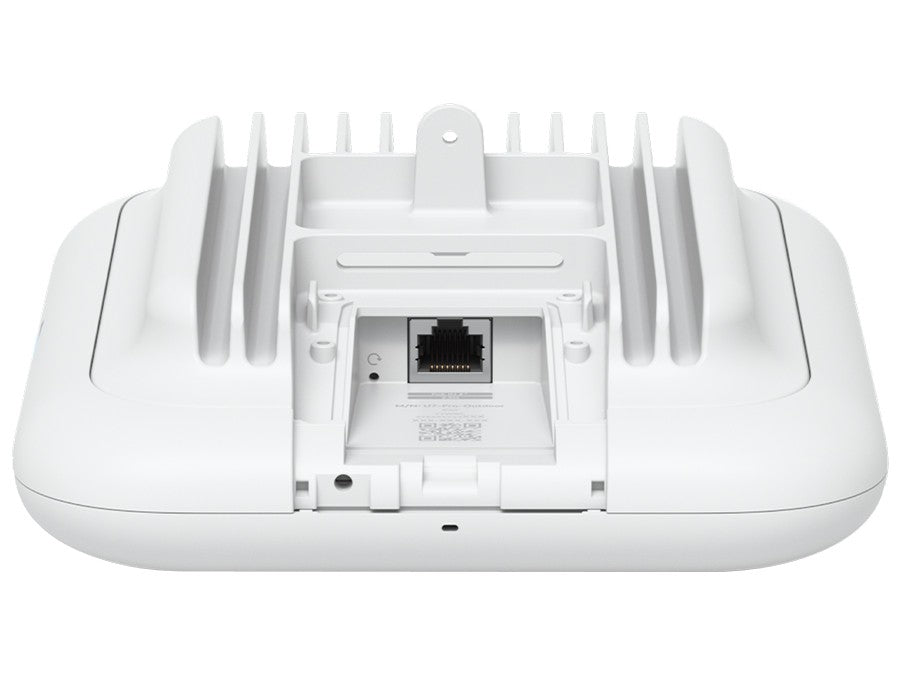

• 2.5GBPS ETHERNET PORT: Includes a single 10/100/1000/2500 Mbps Ethernet port, allowing the access point to take full advantage of multi-gigabit network infrastructure without becoming a bottleneck.

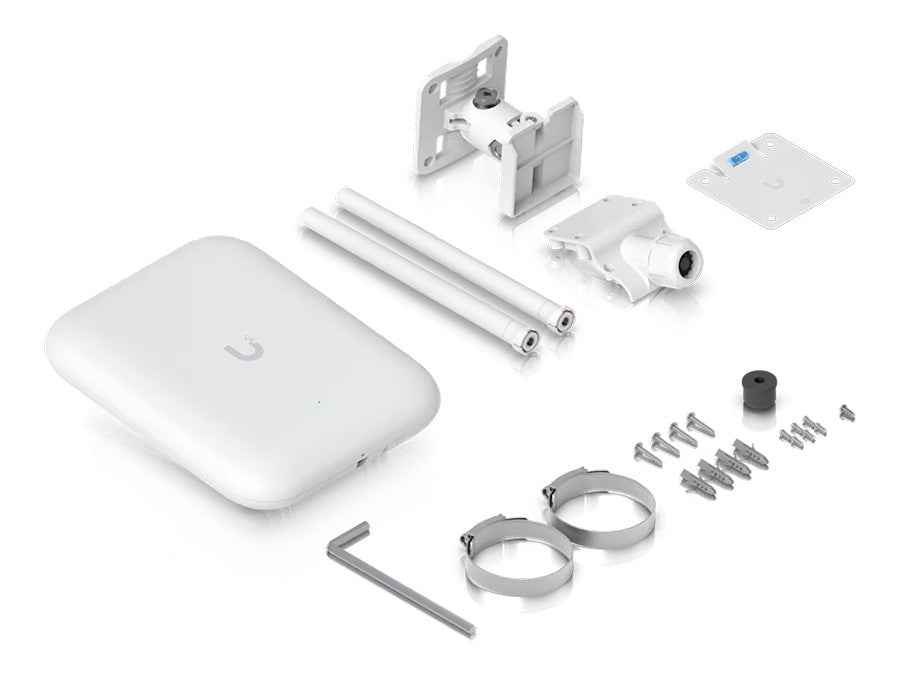

• FLEXIBLE MOUNTING AND POE POWERED: Supports wall or pole mounting to suit a range of outdoor installation scenarios, and is powered via 802.3at PoE+ or Passive PoE, eliminating the need for a separate power outlet. Note: PoE injector not included.

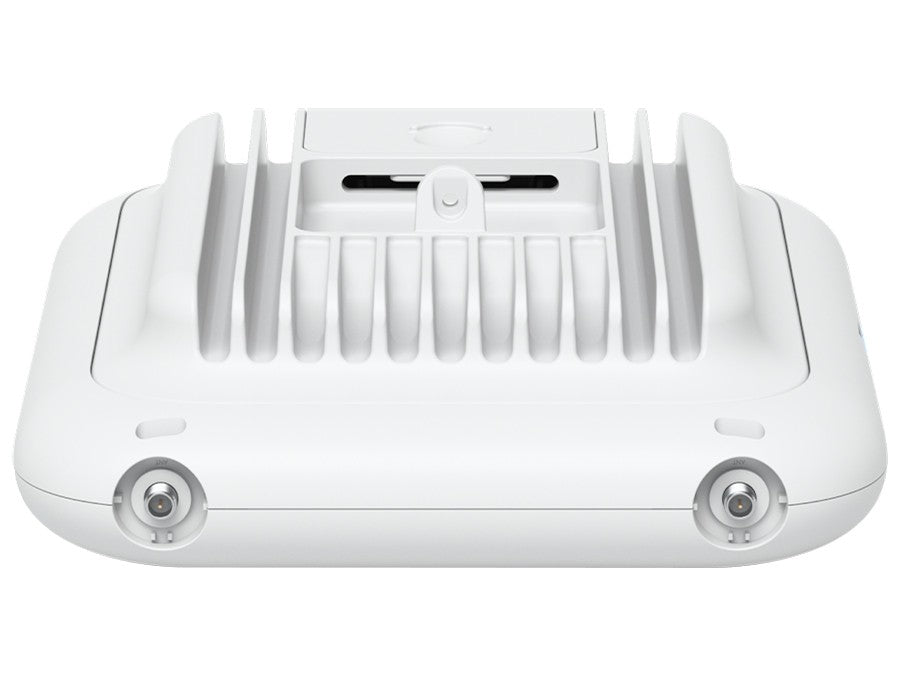

• UNIFI MANAGED WITH DUAL EXTERNAL ANTENNAS: Configured and managed through the UniFi Network Application for centralised control, and features two external antennas with gains of 6 dBi at 2.4GHz and 8 dBi at 5GHz.
