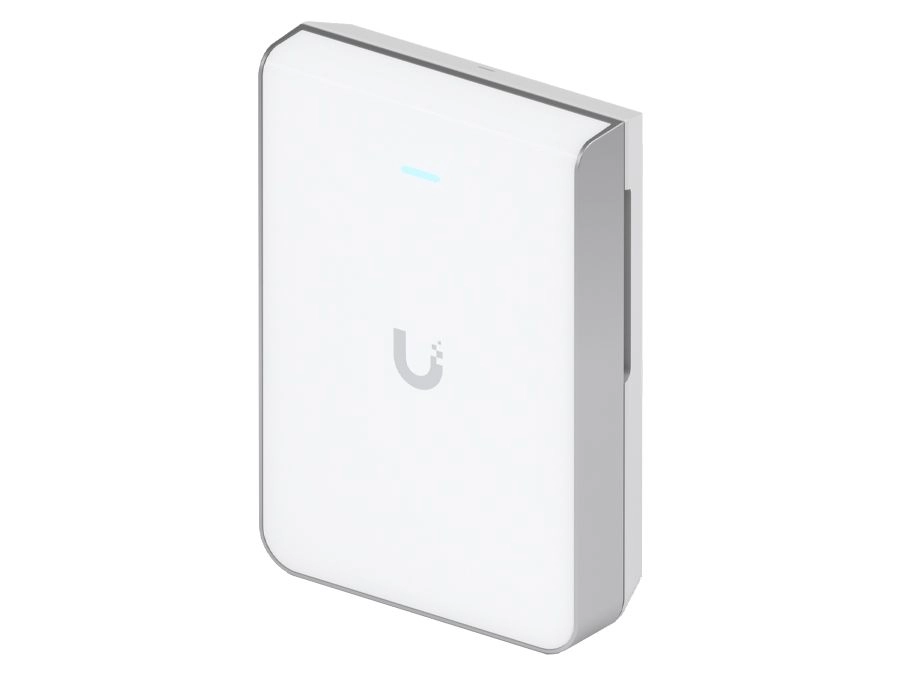

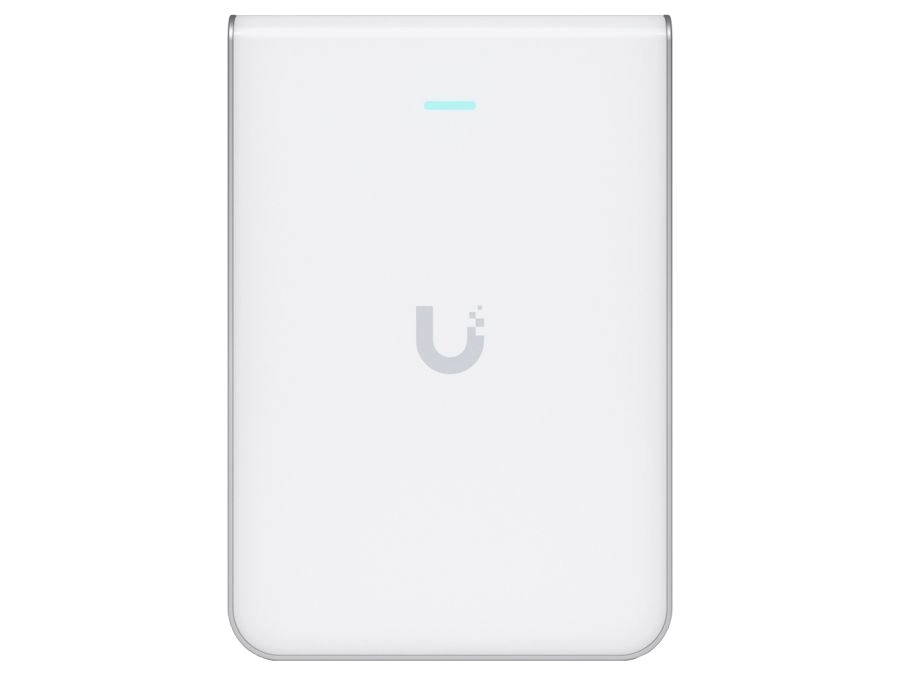

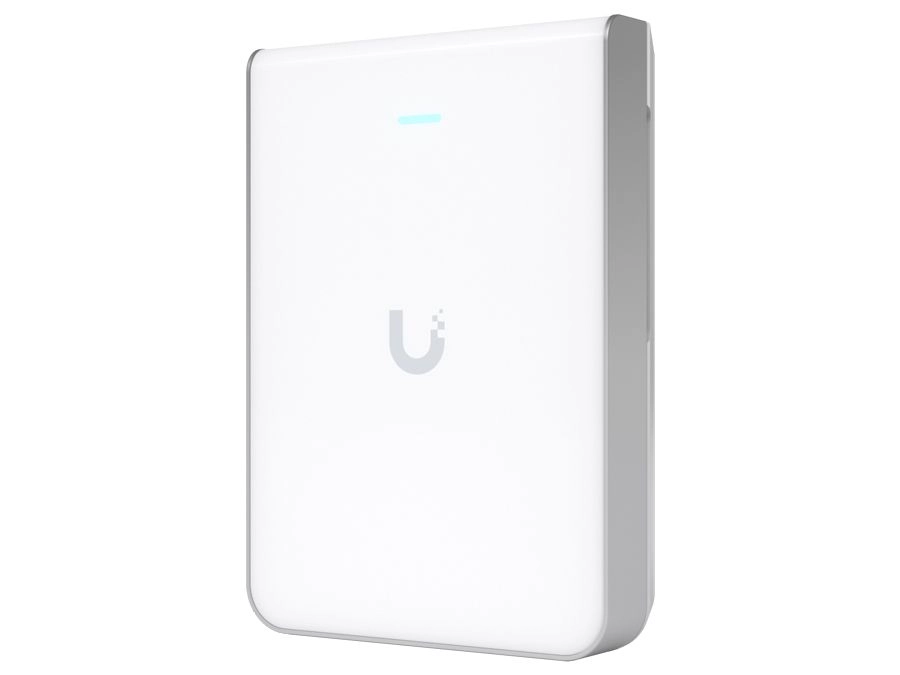

Ubiquiti UniFi WiFi 7 Tri-Band Pro In-Wall AP | U7-Pro-Wall
Ubiquiti UniFi WiFi 7 Tri-Band Pro In-Wall AP | U7-Pro-Wall

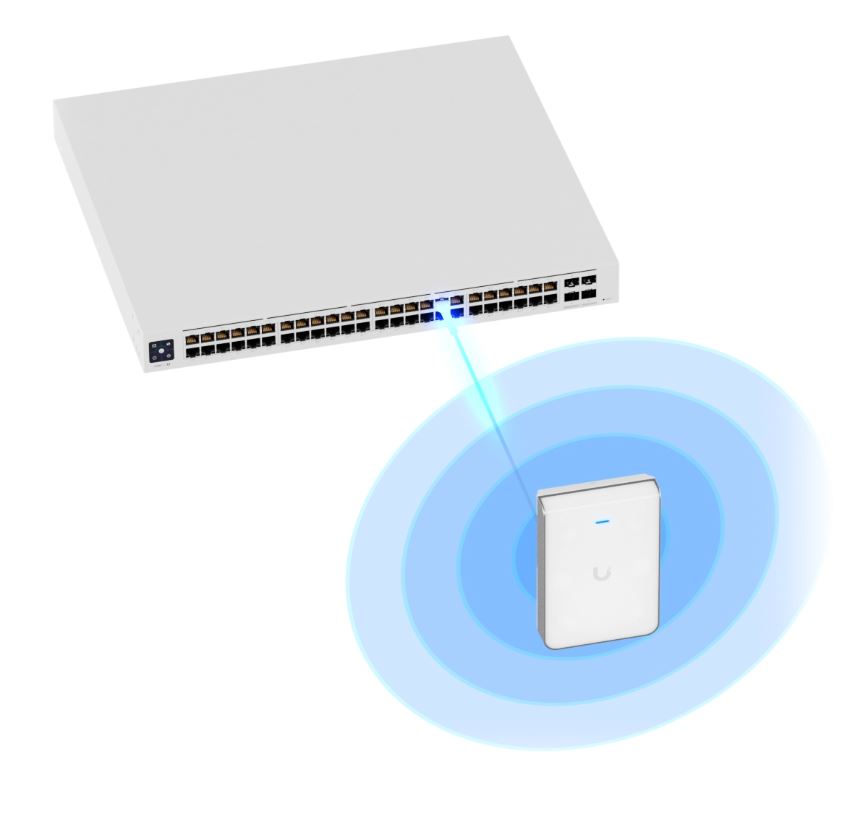

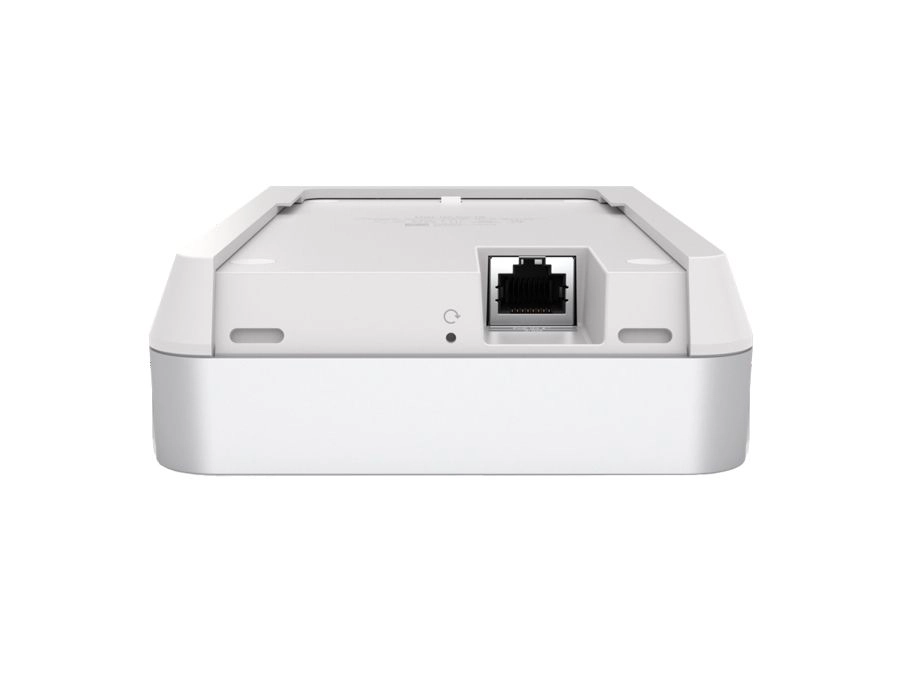

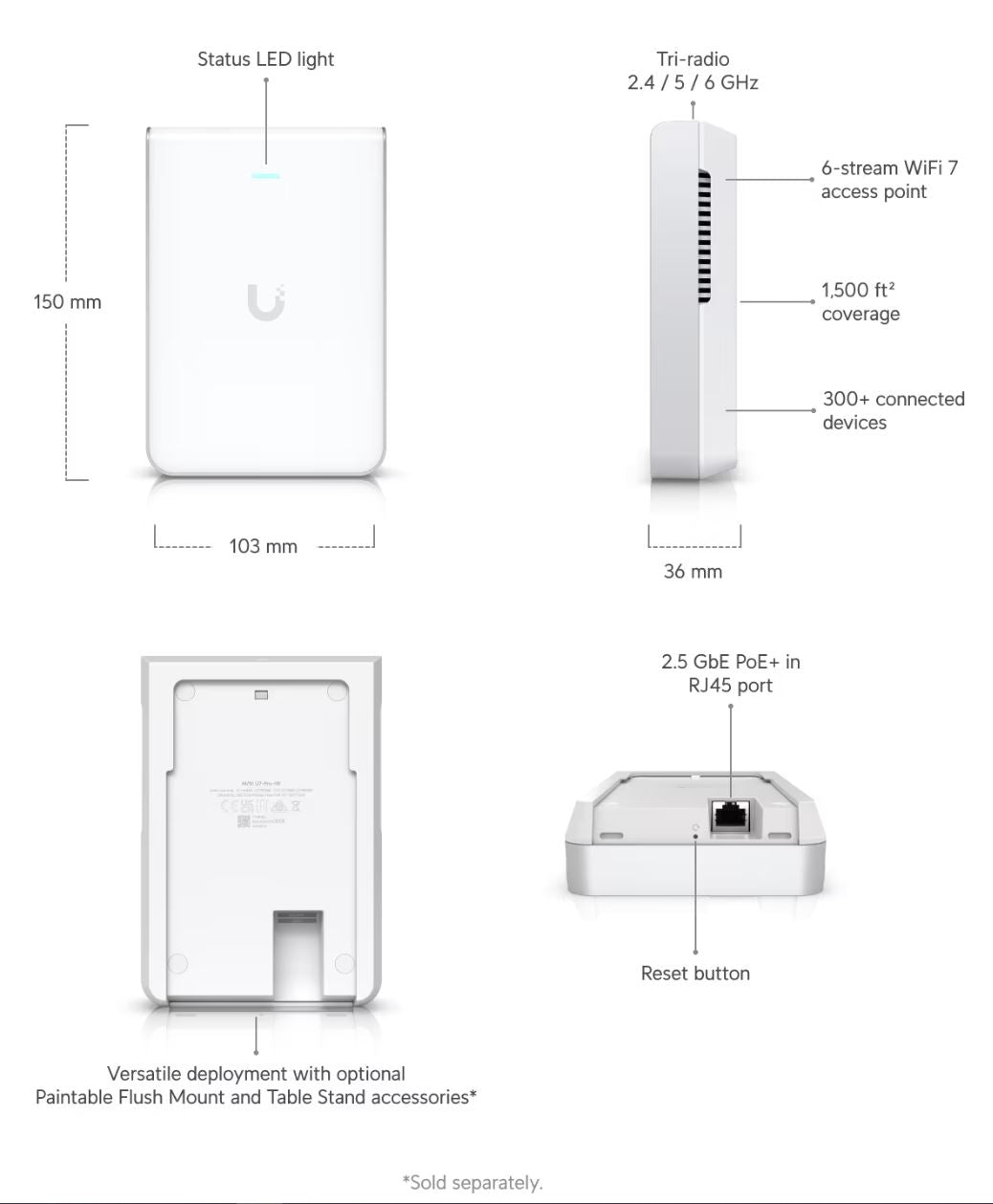

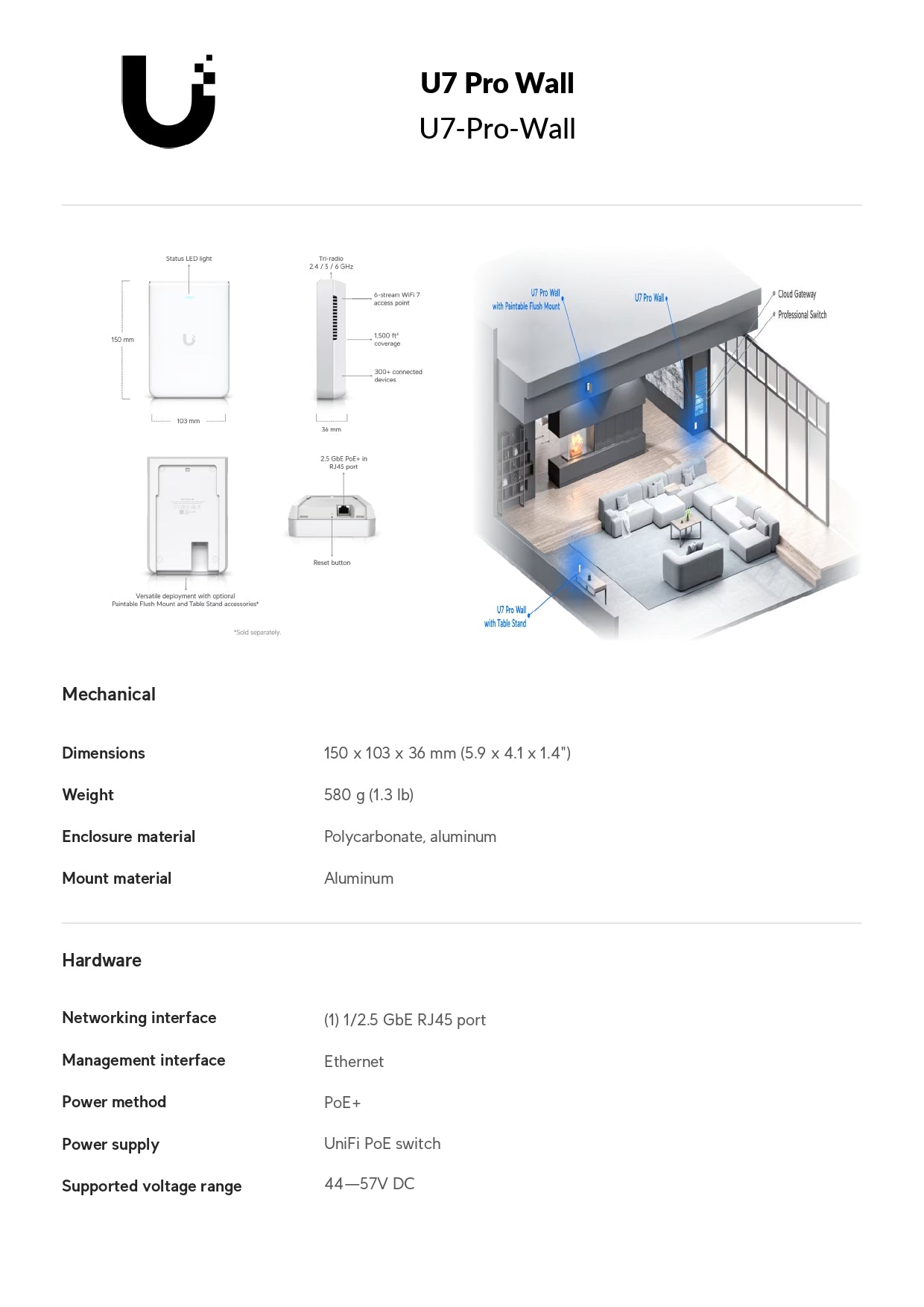

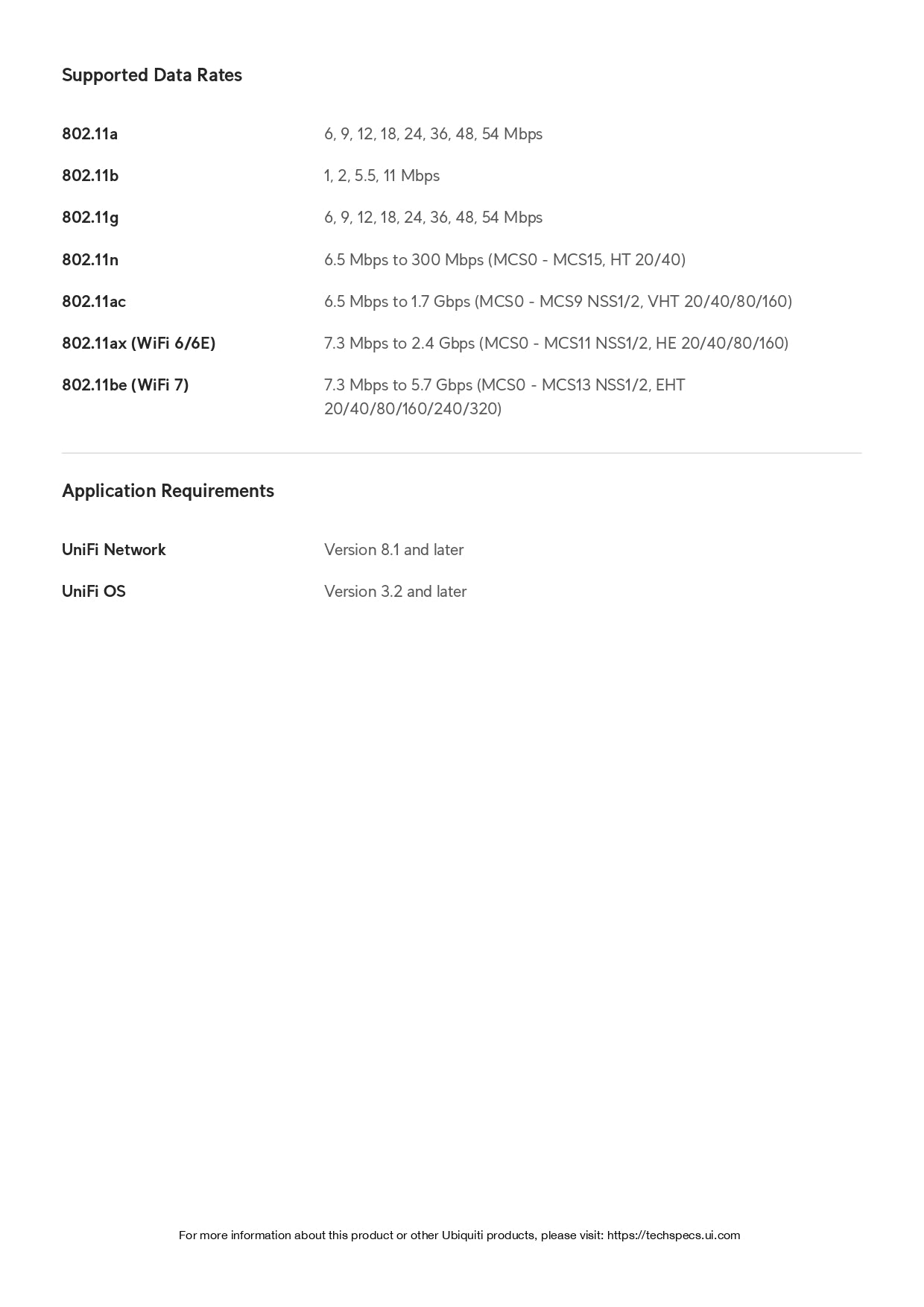

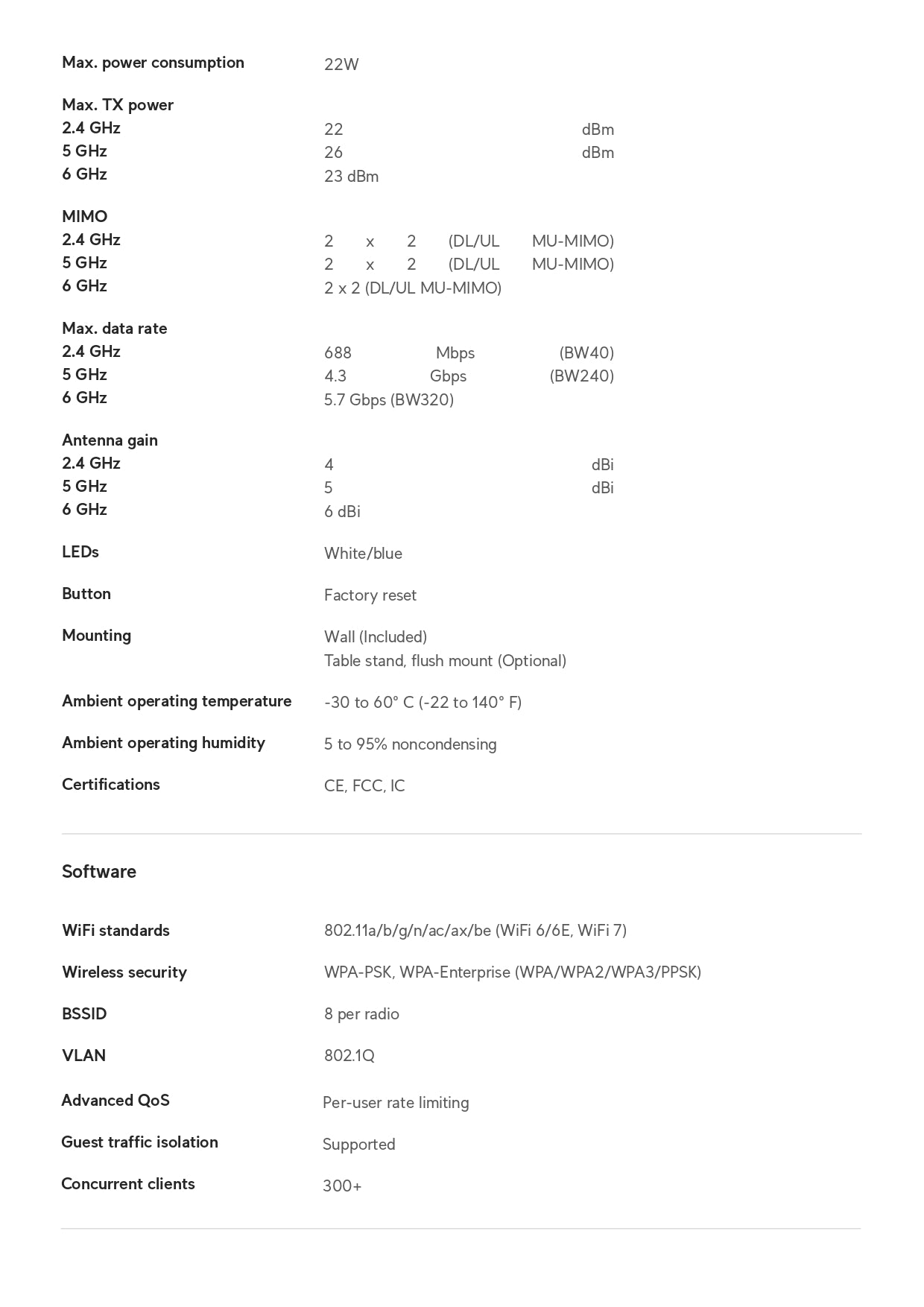

Ubiquiti's U7-IW-PRO is a Tri-Band, WiFi 7 access point featuring 1x 2.5Gbps Ethernet port as well as 6GHz support for interference-free WiFi in demanding, large scale environments. It delivers an aggregate data rate of up to 10.7Gbps over its 6GHz (2x2 MU-MIMO) 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands. It can be configured and managed with the UniFi Network Application. VERY IMPORTANT: *Note: PoE injector not included. This product does NOT include a power source and assumes that power (such as a 802.3at PoE switch,) is already in place Power required: Power Input: 802.3at or Passive PoE (Not Included) Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options. WiFi 7 with 6 GHz support 6 spatial streams 140 m² (1,500 ft²) coverage 300+ connected devices Powered using PoE+ 2.5 GbE uplink More Information SKU U7-IW-PRO Manufacturer Ubiquiti Manufacturer Product Code U7-Pro-Wall Specifications Antenna Gain: 2.4GHz: 4dBi; 5.8GHz: 5dBi : 6GHz: 6dBi Beam-width: 360° Data Rate: 2.4GHz: 688Mbps; 5.8GHz: 4.3Gbps ; 6GHz: 5.7Gbps Ethernet Ports: 1x 10/100/1000/2500 Hardware Button: Reset Max. Power Consumption: 22W Mounting: 1 Gang Electrical Wall Box (Not Included) Operating System: UniFi Operating Temperature: -30°C to 60°C PoE Input: 802.3at or Passive PoE PoE Output: None Power Input: 802.3at or Passive PoE (Not Included) Serial Interface: None SIM Slots: None Supported Voltage Range: 44 to 57V USB Ports: None Dimensions: 150 x 103 x 36 mm Weight: 580g Designed to be mounted on wall over a1 Gang Electrical Wall Box (Not Included) or Directly on a dry wall where the CAT6 cable cable comes through a hole drilled through the dry wall. Optional Flush Mount and Table Stand accessories are NOT included. Zoom in on picture of datasheet for more specifications.

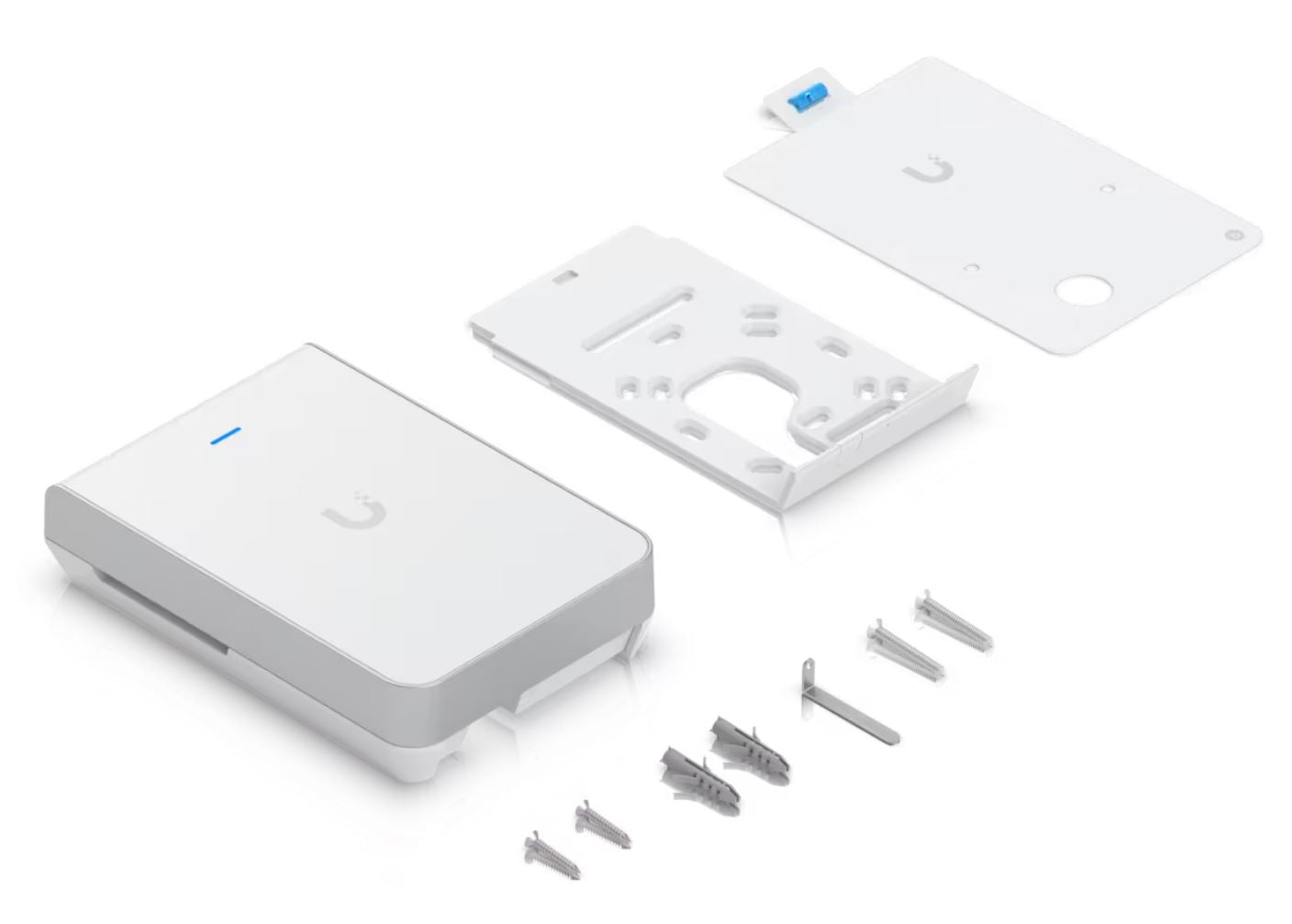

1 x Ubiquiti UniFi WiFi 7 Tri-Band Pro In-Wall AP | U7-Pro-Wall
