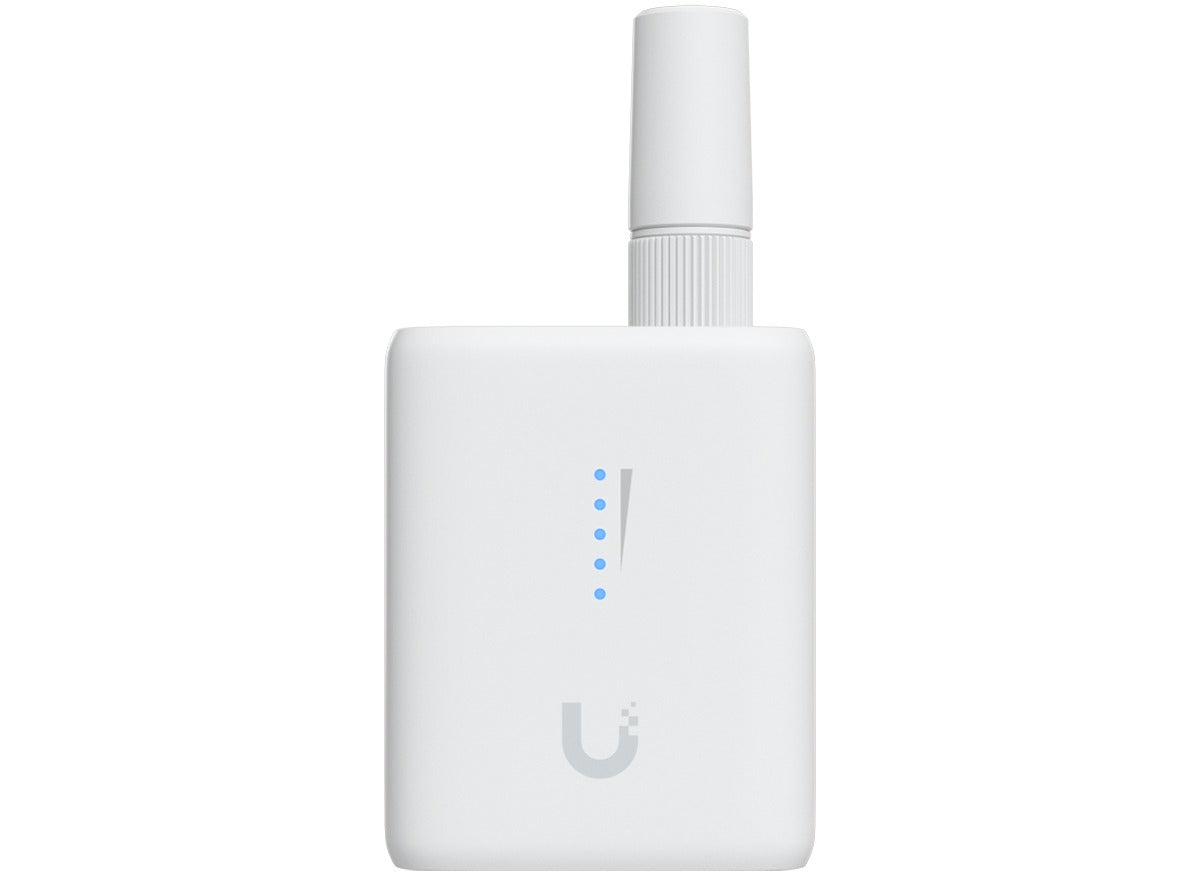

Ubiquiti UniFi WiFi Device Bridge for IoT

Ubiquiti's UDB-IOT is an ultra-compact wireless bridge for IoT devices and features integrated UniFi WiFi Auto-Link, versatile mounting options, and is powered by USB Type-C or 4-pin DC socket.

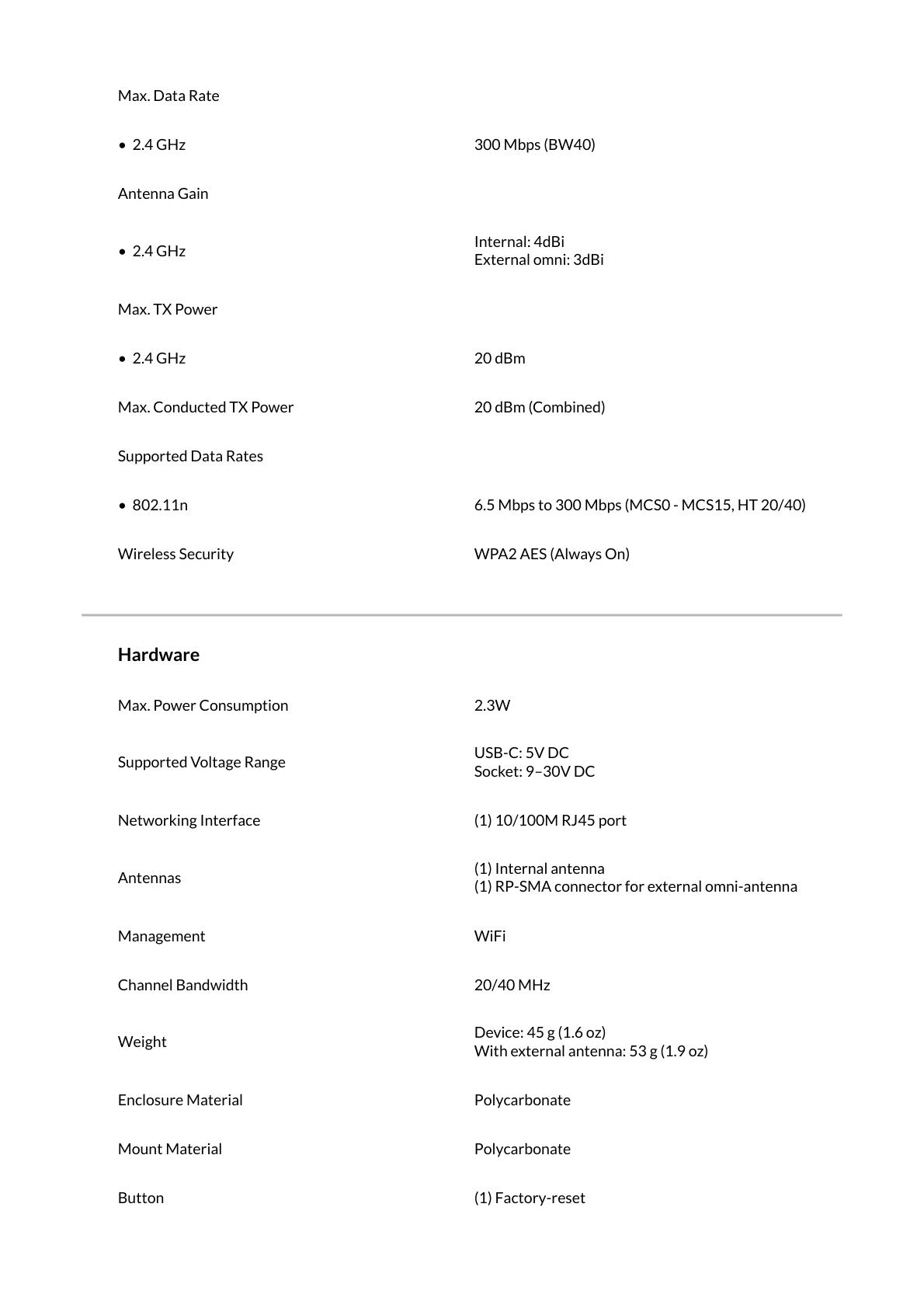

Specifications: Antenna Gain: Internal: 4dBi External: 3dBi Data Rate: 2.4GHz: 300Mbps Ethernet Ports: 1x 10/100 Max. Power Consumption: 2.3W Mounting: Wall or DIN-rail Operating Temperature: -10°C to 50°C Power Input: USB Type-C (5V DC, 1A) or 4-pin DC (9–30V DC) PoE Input: None Supported Voltage Range: USB-C: 5V DC or Socket: 9–30V DC

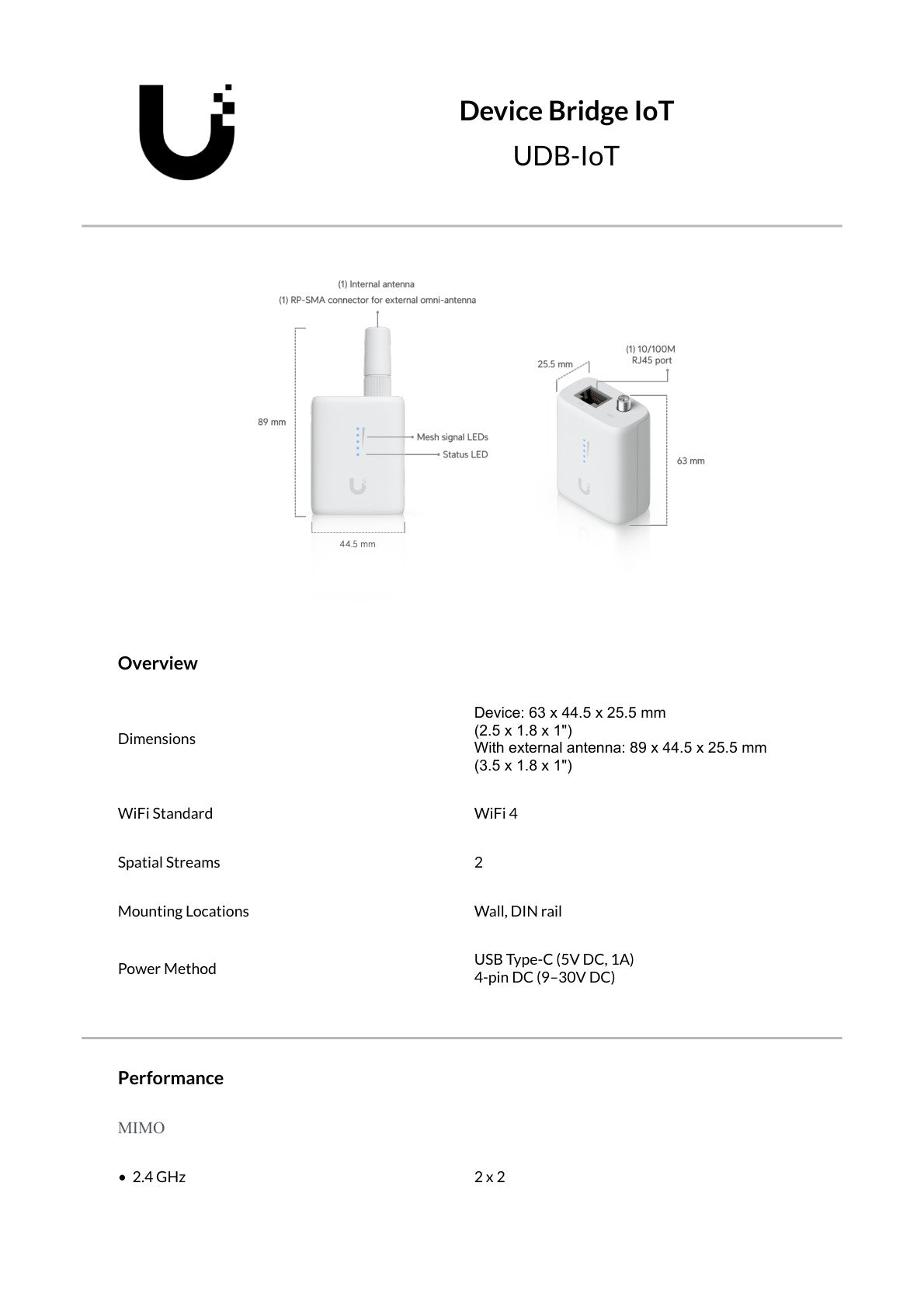

Dimensions: Device: 63 x 44.5 x 25.5 mm With external antenna: 89 x 44.5 x 25.5 mm Weight: 45g

• UNIFI AUTO-LINK INTEGRATION: Connects IoT devices directly to your UniFi WiFi network using built-in UniFi WiFi Auto-Link, simplifying setup without requiring additional configuration steps for compatible UniFi environments.

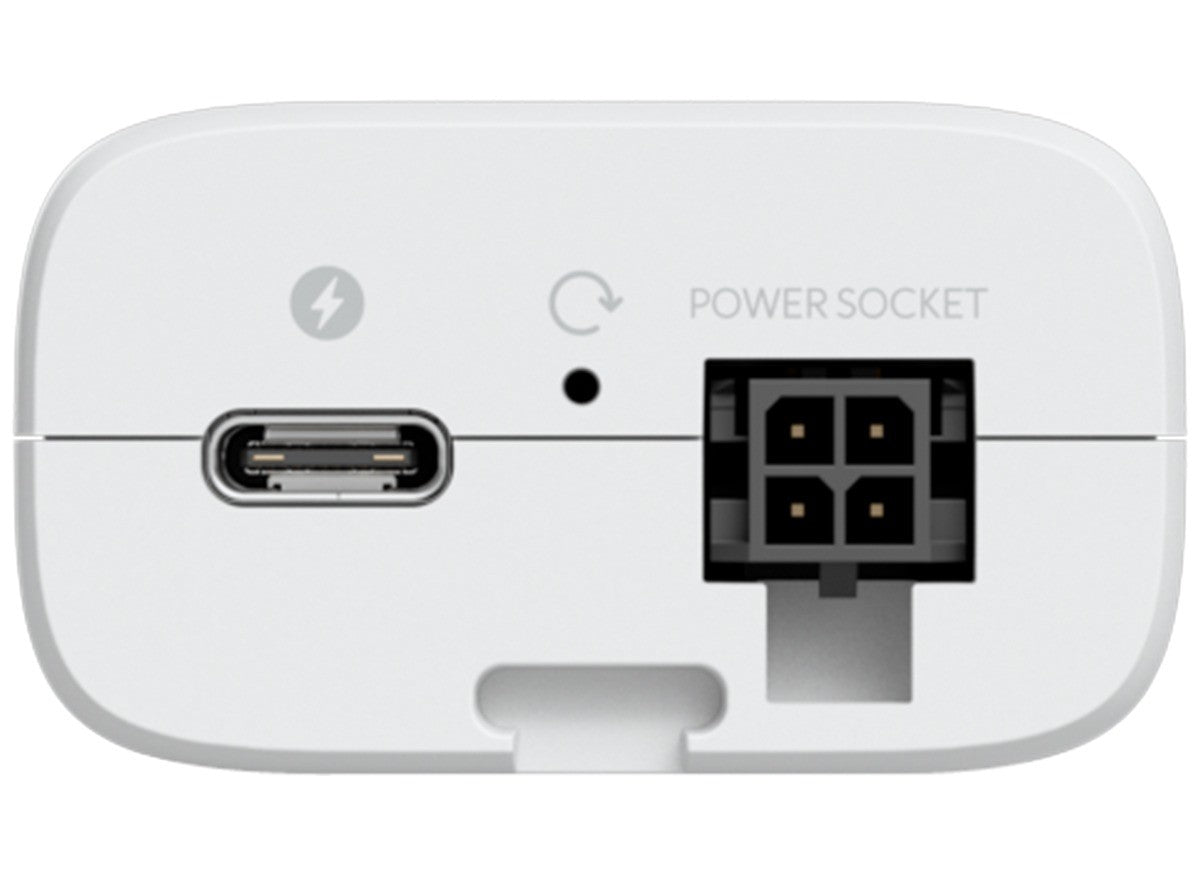

• FLEXIBLE POWER OPTIONS: Accepts power via USB Type-C at 5V DC or a 4-pin DC socket supporting 9 to 30V DC, giving you the flexibility to power the device from a wide range of existing power sources in your installation.

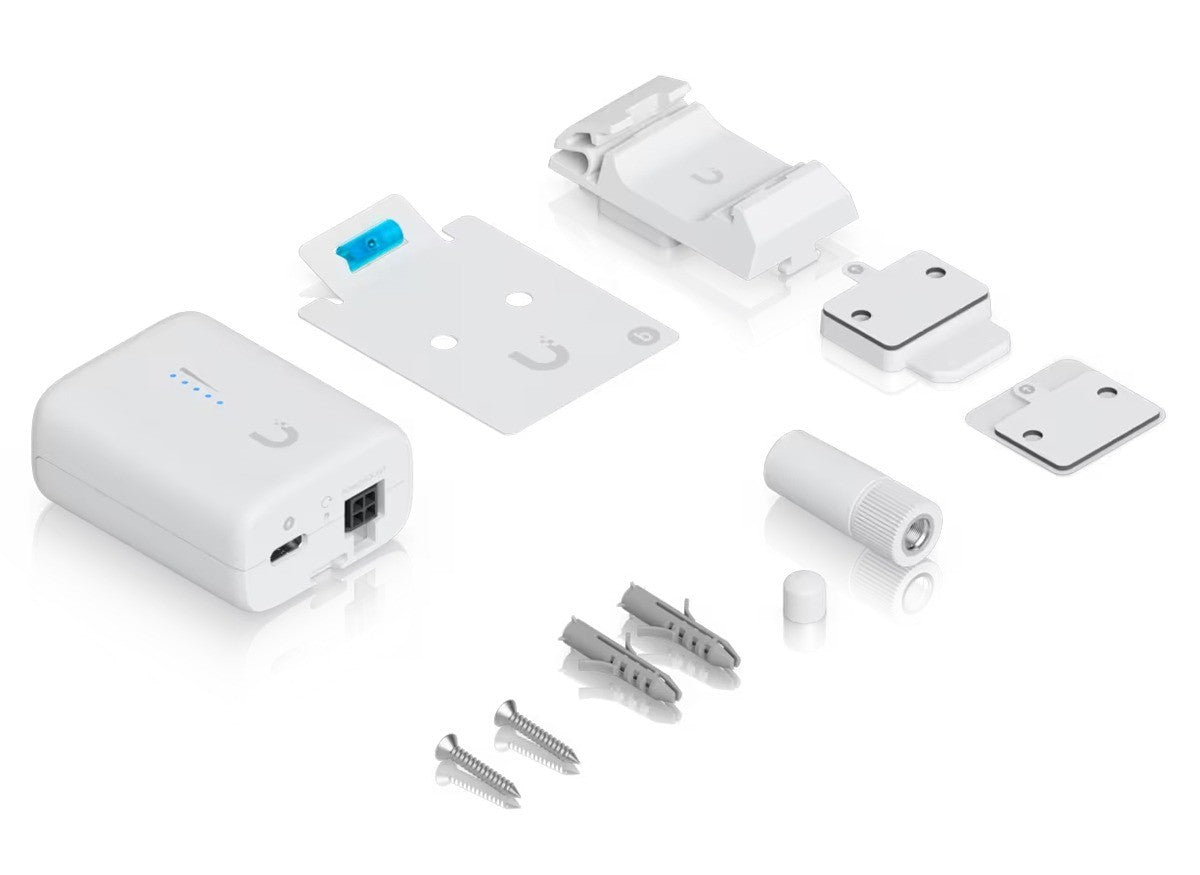

• VERSATILE MOUNTING: Supports both wall mounting and DIN-rail mounting, making it suitable for installation in network cabinets, industrial enclosures, or standard wall locations.
• ULTRA-COMPACT AND LIGHTWEIGHT: The device measures 63 x 44.5 x 25.5 mm and weighs only 45g, allowing it to fit into tight spaces without adding bulk to your installation.

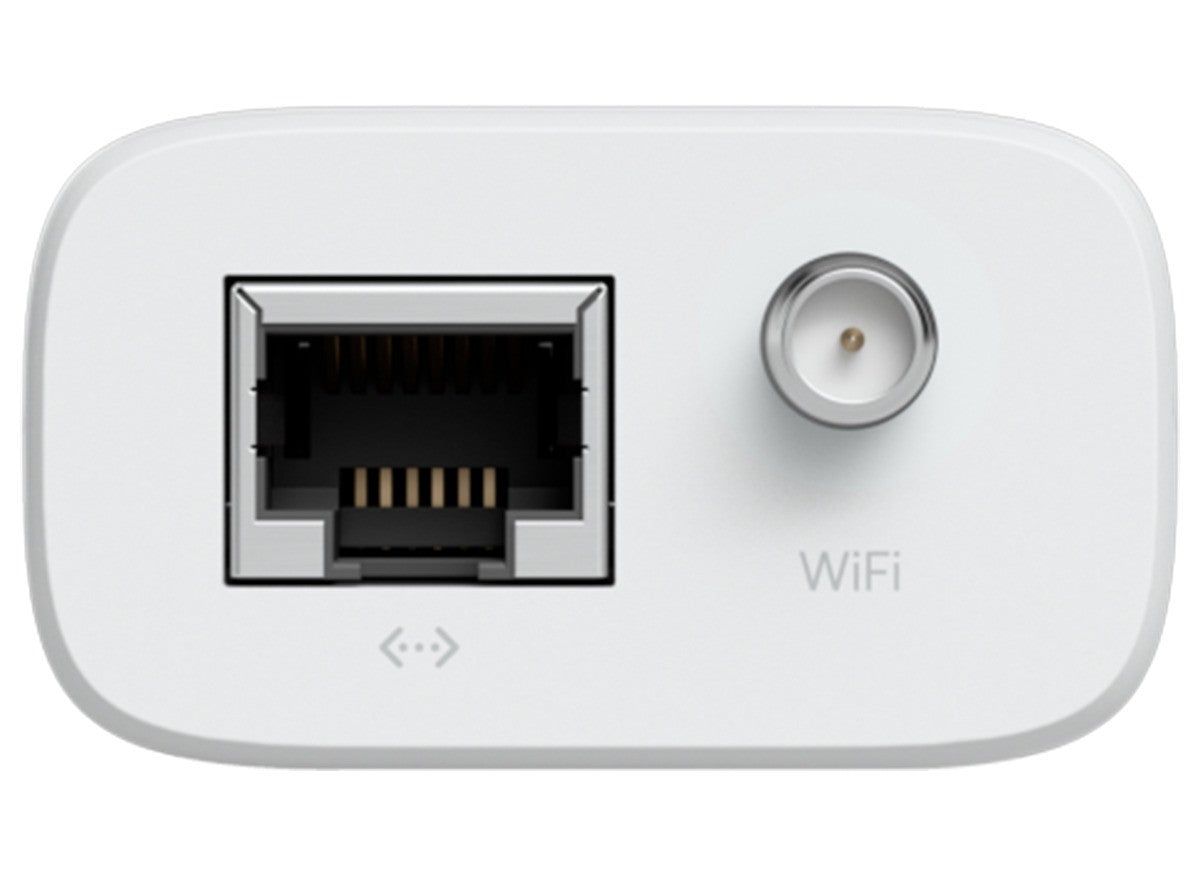

• SINGLE ETHERNET PORT WITH 2.4GHz WIRELESS: Includes one 10/100 Ethernet port and delivers wireless speeds of up to 300Mbps on the 2.4GHz band, bridging wired IoT devices to your wireless network.
